CH-K017

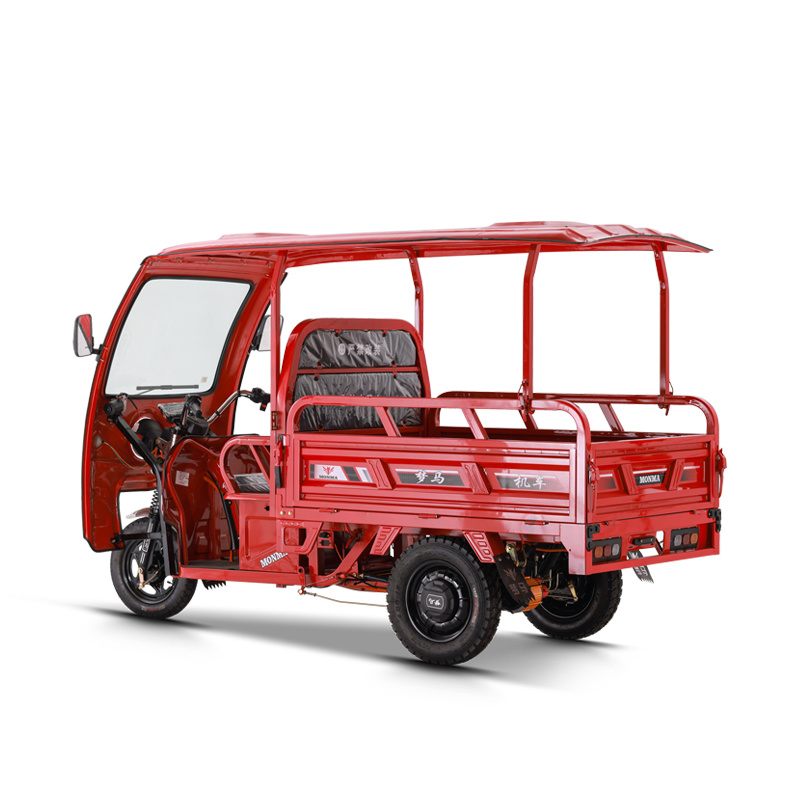

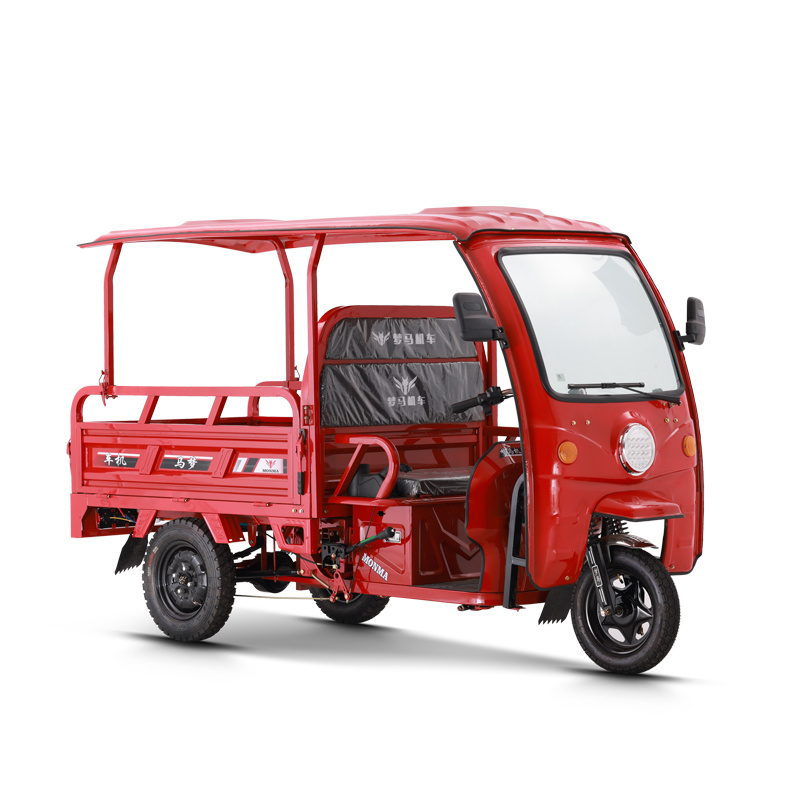

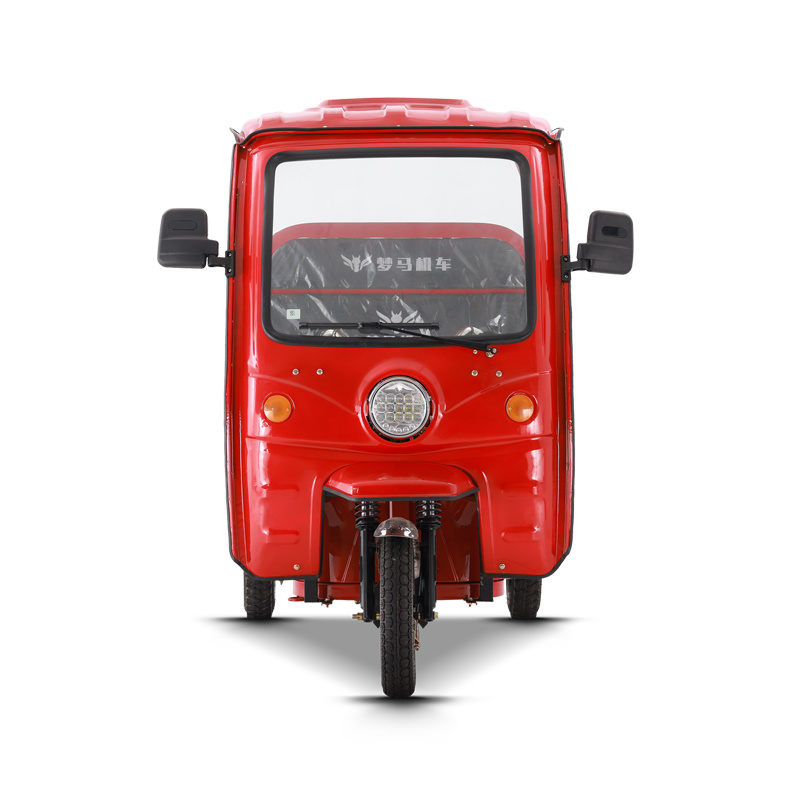

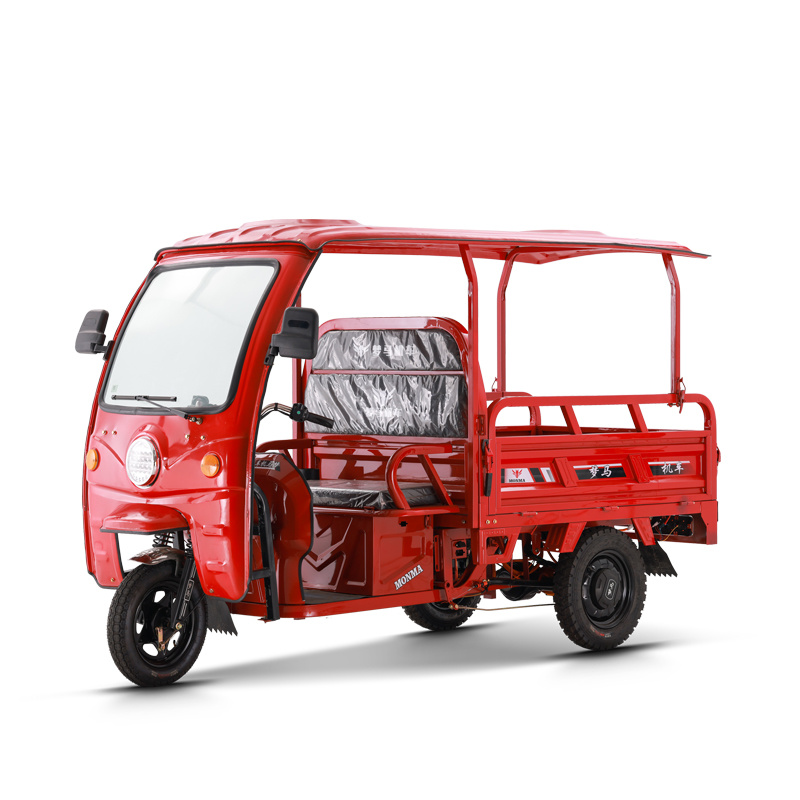

The cargo-carrying electric tricycle is equipped with a 1600*1050mm large cargo box and an integrated stamped compartment, making the body structure more stable. Equipped with a 1500W60H permanent magnet motor, it can continuously output strong power. The whole vehicle uses high-quality rain curtains to provide wind and rain protection for the transported goods. The 160mm drum brake integrated gear shifting makes the transmission more stable. Equipped with an LCD instrument panel to provide timely feedback on the vehicle status. The LED headlights, with concentrated light, make driving safer at night.
Key words:
Classification:
E-motorcycle
Hotline:
CH-K017
Graphic Details
Product Parameters
| Model | CH-K017 | ||||
| Basic configuration | Vehicle size(mm) | 3085*1180*1680 | Power system | Motor | 1500W60H permanent magnet motor |
| Container size（mm） | 1600*1050 | Controller | 24 Mousse tube | ||
| Seat height(mm) | 700 | Maximum speed(KM/H) | 40-52(Optional) | ||
| Ground clearance(mm) | 220 | Maximum torque | / | ||
| Track width(mm) | 960 | Start mode | Electronic control | ||
| Curb weight(KG) | 220 | Storage battery | 72V58A | ||
| Load capacity mass(KG) | 300 | Mileage driven | Reference battery data | ||
| Tire Size | Front 3.75-12/Rear 4.00-12 | Other Configuration | Phone charging | No | |
| Braking method | Front drum/Rear drum | Bluetooth audio | No | ||
| Rear axle | 160mm brake hub | Fringe curtain | Whole | ||
| Front suspension | 43mm External spring damping | Alternator | No | ||
| Rear suspension | Five-leaf spring plate non-load bearing | Packaging method | CKD | ||
| Instrument | LCD instrument | Windshield wiper | Electric wipers | ||
| Headlamps | LED | ||||
Product display
1. 1500W60H permanent magnet motor, a spacious and sturdy carriage, and can carry 300KG of cargo.
2. The front and rear wheels use 12-inch deep-tooth tires, which show excellent load-bearing capacity, improve the grip performance of the tricycle, and ensure driving safety.
3. The rear axle adopts a 160mm drum brake integrated shifting system to provide reliable braking force, and the operation is quieter and more efficient. The front suspension 43mm thickened external spring shock absorber enables the tricycle to provide excellent stability and comfort even on uneven roads.
4. Equipped with an LCD instrument panel, clear visual effects and diversified functions. Use high-quality LED headlights, concentrated light source, and longer illumination distance. It is safer to drive at night.
