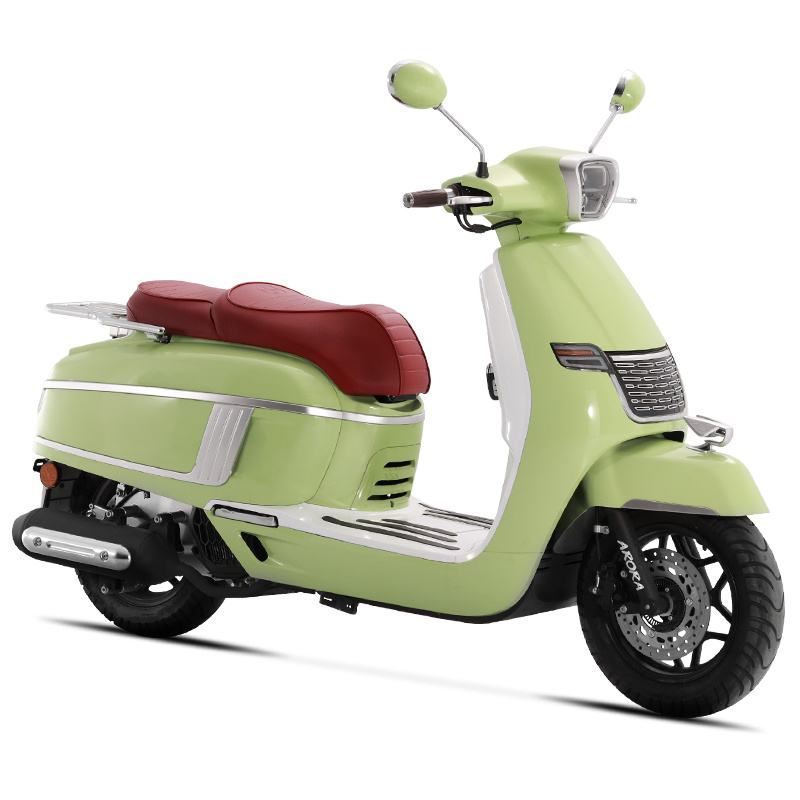

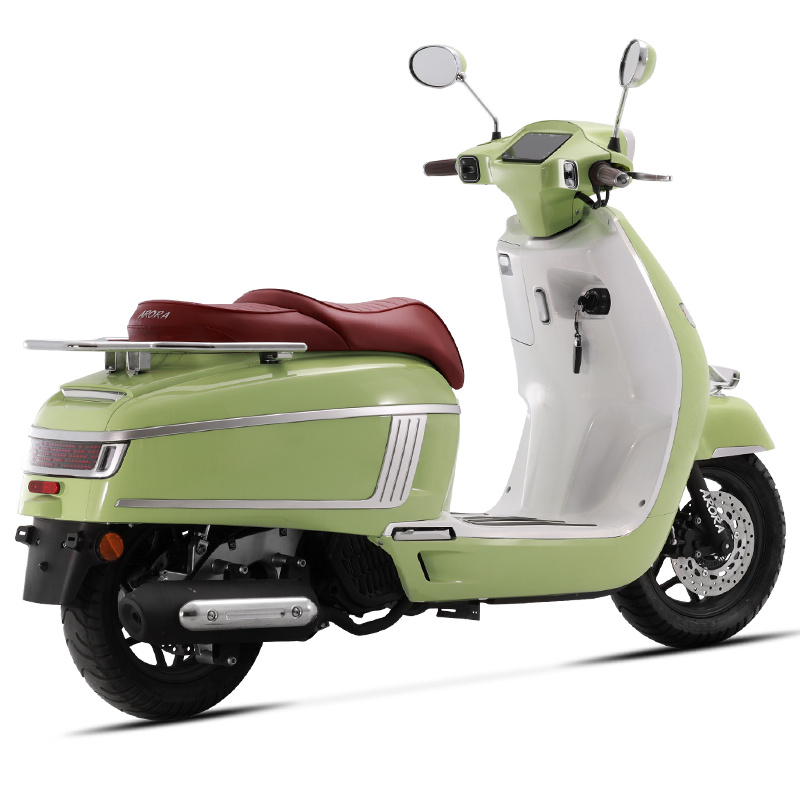

Phantom CH150T-MY
Typical European retro style design, exquisite appearance, simple atmosphere. A fully chrome round rearview mirror is used to further enhance the retro element. Equipped with a reliable 150CC water-cooled engine and advanced EFI system, it provides smooth acceleration while bringing amazing fuel economy. In terms of the lamp group, the polygonal LED single-head lamp and the silver air intake grille decoration create a highly recognizable front face. Equipped with front and rear segmented cushion design, it provides a comfortable riding experience, and the cushion has a large opening angle, which is easy to take. The hidden storage box is equipped with a USD interface, which further provides convenience for travel.
Key words:
Classification:
Scooter
Hotline:
Phantom CH150T-MY
Graphic Details
Product Parameters
| No. | CH150T-MY | ||||
| Model | Phantom CH150T-MY | Optional body color | Red/Black/White/Blue/Customized | ||
| Engine | Engine type | KS150, water cooled | Body | Length * width * height (mm) | 2010x700x1145 |
| Cylinder diameter x stroke (mm) | 57.3 × 58 | Seat height (mm) | |||
| Displacement (ml) | 150 | Ground clearance (mm) | 150 | ||
| Compression ratio | 10.6:1 | Wheelbase (mm) | 1400 | ||
| Peak power (kw/r/min) | 10.5 /8500 | curb weight (KG) | 130 | ||
| Peak torque (Nm/r/min) | 14/6500 | Fuel tank capacity (L) | 11 | ||
| Start mode | Electric start | Tire specifications | Front: 120/70-12; Rear: 120/70-12 | ||
| Maximum design speed | ≤90 | Brake type | Front Disc Rear Drum | ||
1. The 150CC water-cooled engine in line with the Euro 5 state, advanced EFI system, stronger power, precise control of fuel injection volume, reduced fuel consumption, increased cruising range, and more environmentally friendly emissions. The wheelbase design is long, the vehicle shape is large, and the footrest space is large. The front and rear segmented cushion design brings a more comfortable riding experience.
2. The front and rear wheels are equipped with powerful disc brakes and ABS braking system to ensure safe and reliable high-speed braking. The new 12-inch aluminum rims, non-slip tires, durable and heat-resistant, provide excellent grip.

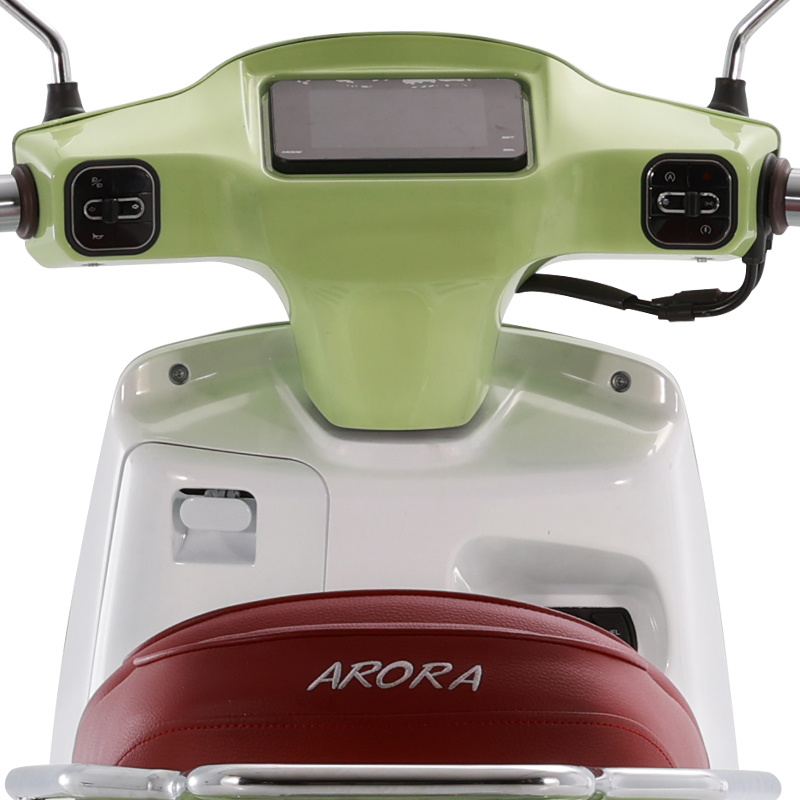

3. Equipped with larger LED headlights, concentrated light source, penetrating power, high brightness, non-dazzling, and safer. 5 inch TFT instrument panel, sensitive display scooter information and status.
4. Enlarge the rear shelf, optional large-capacity rear tail box, large-capacity storage space under the seat bag, and the deflector includes a hidden storage box with USD interface, further providing convenience for travel.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
