PRESCRIPTION
CH-024

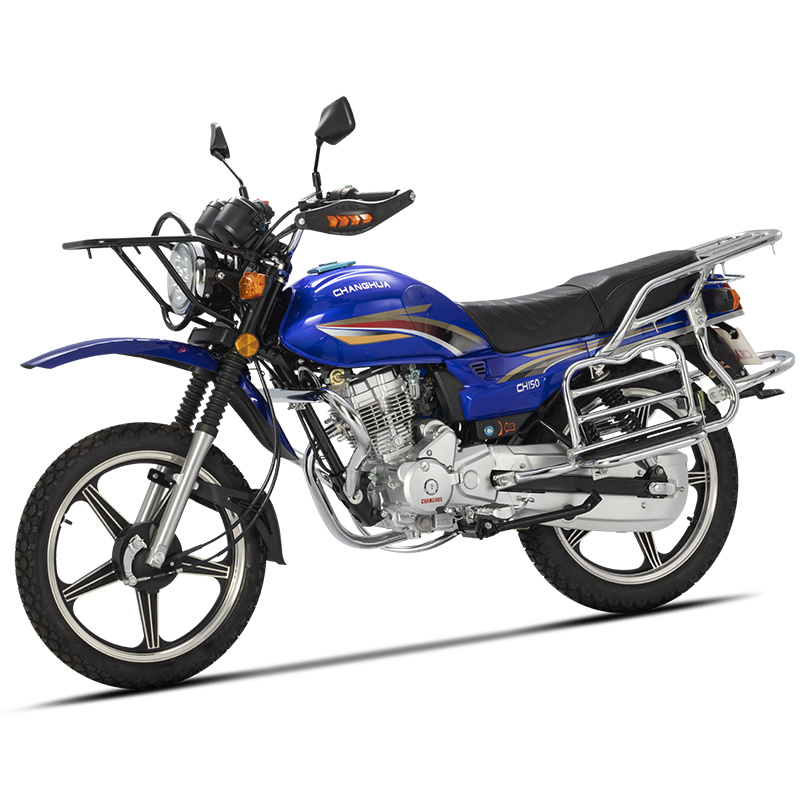

Classic off-road shape, front shelf with handle guard, heightened front fender, 18-inch deep-toothed tires, suitable for mountain mud roads. Increase the rear shelf and large pedals to enhance the comfort of the passenger, suitable for carrying people and cargo. A powerful engine is equipped to provide sufficient torque and power, lower fuel consumption, and release potential. 14L large capacity fuel tank, more endurance. The seat bag is of moderate height, suitable for most people, gold three-point sitting position, feet easily on the ground, to ensure comfortable and easy riding posture.
Key words:
Classification:
Two-wheeler
Hotline:
CH-024
Graphic Details
Product Parameters
| No. | CH-024 | ||||
| Model | CH150-7A | Body optional color | Red/Black/White/Blue | ||
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body | Length * width * height (mm) | 2100*800*1100 |
| Cylinder diameter x stroke (mm) | 62*49.5 | Seat height (mm) | 760 | ||
| Displacement (ml) | 150 | Ground clearance (mm) | 150 | ||
| Compression ratio | 9.0:1 | Wheelbase (mm) | 1295 | ||
| Peak power (kw/r/min) | 8.2kw/8500r/Min | curb weight (KG) | 117 | ||
| Peak torque (Nm/r/min) | 10N.m/7500r/Min | Fuel tank capacity (L) | 12 | ||
| Start mode | Electric/foot start | Tire specifications | Front 2.75-18, rear 3.00-18 | ||
| Maximum design speed | ≤ 85 km/h | Brake type | Front Disc Rear Drum | ||

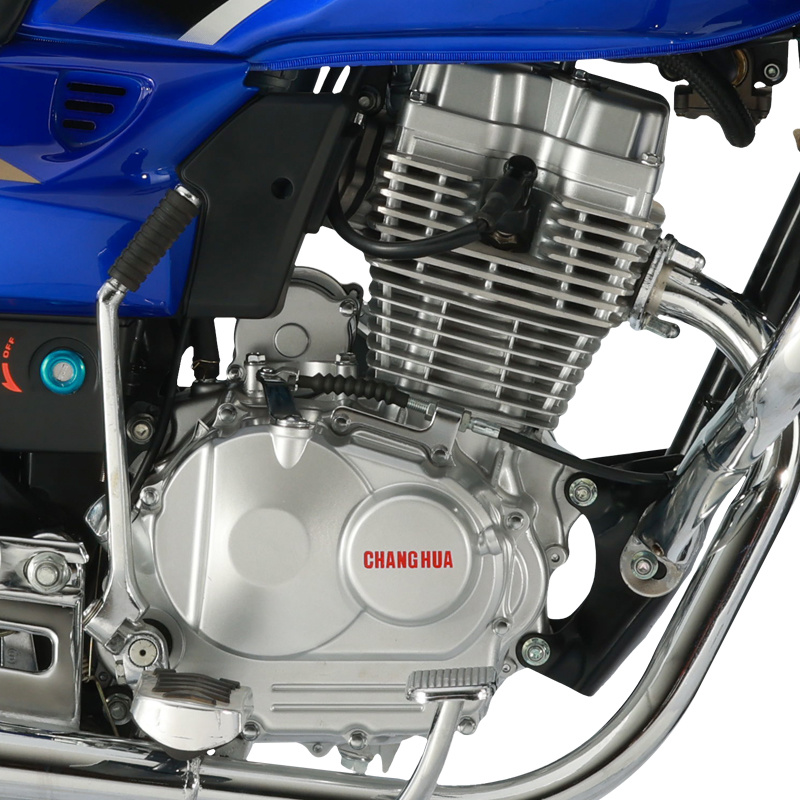

1. The motorcycle combines the advantages of classic design, modern performance and economic benefits. Single-cylinder four-stroke, air-cooled engine, stronger power, lower fuel consumption, excellent power performance and handling performance.
The 2,18-inch deep-toothed tires enhance the grip ability, and the excellent thickened rear shock absorption system makes the body stronger and more powerful, improves driving safety, and is suitable for various rugged mountain mud roads.
3,14L large capacity fuel tank, more endurance. The ergonomically designed seat bag is of moderate height, suitable for most people, with easy feet on the ground, ensuring a comfortable and relaxed riding posture.
4. LED headlights with concentrated light sources ensure safe driving at night. Equipped with a handlehold guard to ensure the safety of the rider.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
Previous Page
CH-025
Next Page
CH-024
Classic off-road shape, front shelf with handle guard, heightened front fender, 18-inch deep-toothed tires, suitable for mountain mud roads. Increase the rear shelf and large pedals to enhance the comfort of the passenger, suitable for carrying people and cargo. A powerful engine is equipped to provide sufficient torque and power, lower fuel consumption, and release potential. 14L large capacity fuel tank, more endurance. The seat bag is of moderate height, suitable for most people, gold three-point sitting position, feet easily on the ground, to ensure comfortable and easy riding posture.
Key words:
Classification:
Product accessories:
Hotline:
Product Details
Product Parameters
| No. | CH-024 | ||||
| Model | CH150-7A | Body optional color | Red/Black/White/Blue | ||
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body | Length * width * height (mm) | 2100*800*1100 |
| Cylinder diameter x stroke (mm) | 62*49.5 | Seat height (mm) | 760 | ||
| Displacement (ml) | 150 | Ground clearance (mm) | 150 | ||
| Compression ratio | 9.0:1 | Wheelbase (mm) | 1295 | ||
| Peak power (kw/r/min) | 8.2kw/8500r/Min | curb weight (KG) | 117 | ||
| Peak torque (Nm/r/min) | 10N.m/7500r/Min | Fuel tank capacity (L) | 12 | ||
| Start mode | Electric/foot start | Tire specifications | Front 2.75-18, rear 3.00-18 | ||
| Maximum design speed | ≤ 85 km/h | Brake type | Front Disc Rear Drum | ||
1. The motorcycle combines the advantages of classic design, modern performance and economic benefits. Single-cylinder four-stroke, air-cooled engine, stronger power, lower fuel consumption, excellent power performance and handling performance.
The 2,18-inch deep-toothed tires enhance the grip ability, and the excellent thickened rear shock absorption system makes the body stronger and more powerful, improves driving safety, and is suitable for various rugged mountain mud roads.
3,14L large capacity fuel tank, more endurance. The ergonomically designed seat bag is of moderate height, suitable for most people, with easy feet on the ground, ensuring a comfortable and relaxed riding posture.
4. LED headlights with concentrated light sources ensure safe driving at night. Equipped with a handlehold guard to ensure the safety of the rider.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
