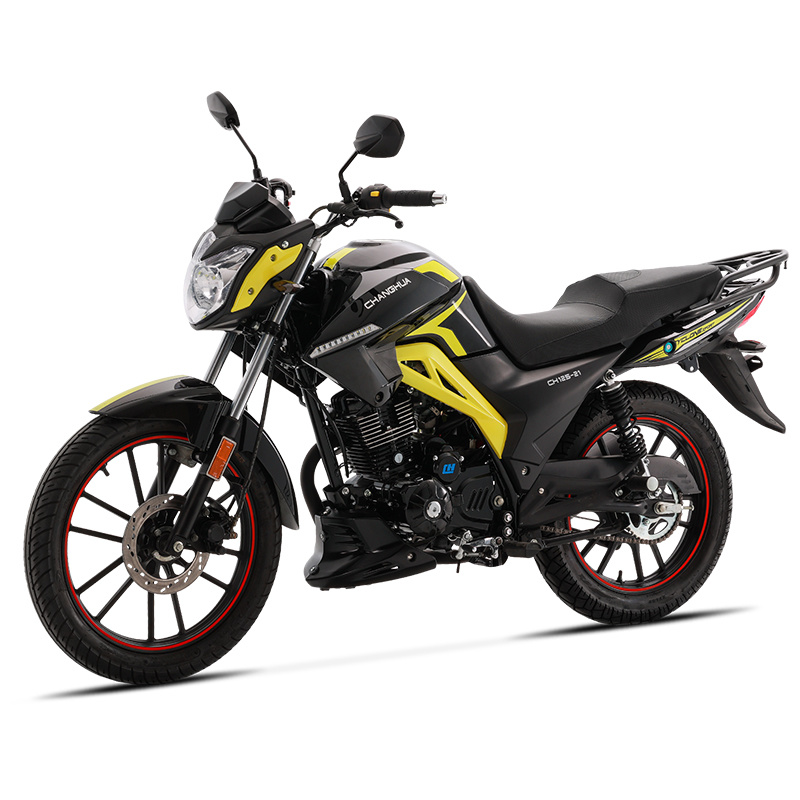

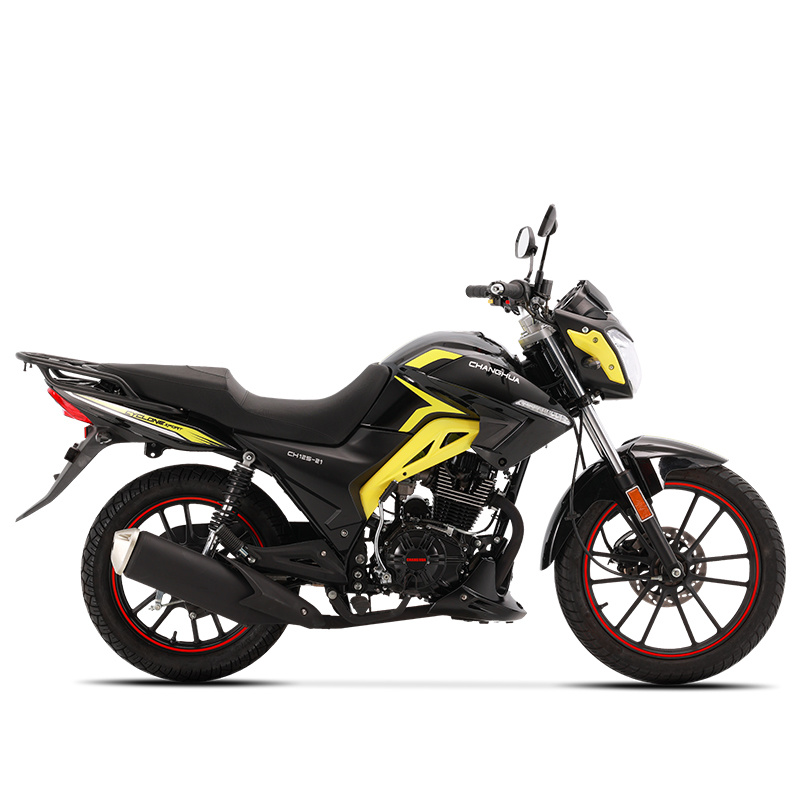

Magic Shadow_CH125-21E
Clear display of mechanical instruments, simple layout, new strong aluminum wheels, showing the stylish atmosphere of the street car shape. Ergonomically designed seat bag, comfortable ride, precise adjustment of driving posture, effectively alleviate driving fatigue. The high-quality engine guard focuses on the protection of the engine. It is equipped with a powerful 125CC engine, which has lower fuel consumption and stronger power. Add a large fuel tank for stronger endurance.
Key words:
Classification:
Riding bike
Two-wheeler
Hotline:
Magic Shadow_CH125-21E
Graphic Details
Product Parameters
| No. | CH125-21E | ||||
| Model | CH125-21E | Body optional color | Red/Black/White/Blue | ||
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body | Length * width * height (mm) | 2050 × 730 × 1185 |
| Cylinder diameter x stroke (mm) | 56.5 × 49.5 | Seat height (mm) | / | ||
| Displacement (ml) | 125 | Ground clearance (mm) | 190 | ||
| Compression ratio | 9.0:1 | Wheelbase (mm) | 1300 | ||
| Peak power (kw/r/min) | 7.5/8500 | curb weight (KG) | 112 | ||
| Peak torque (Nm/r/min) | 9/7500 | Fuel tank capacity (L) | 16 | ||
| Start mode | Electric/foot start | Tire specifications | Front 2.75-18, Rear 90/90-18 | ||
| Maximum design speed | ≤ 90 km/h | Brake type | Front Disc Rear Drum | ||
Product display

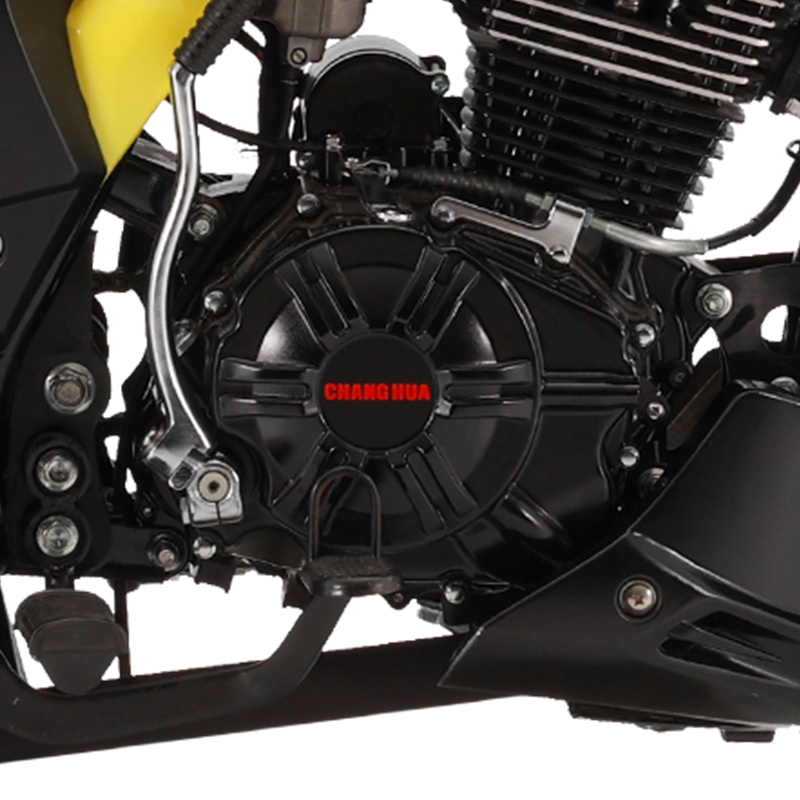

1. The single-cylinder 125 engine has stronger power, lower fuel consumption, simple maintenance; it has excellent power performance and handling performance. The high-quality engine guard focuses on the protection of the engine.
2. The front wheel adopts a large disc brake system, which greatly improves the braking ability of the motorcycle and ensures the safety of the rider.
3. The ergonomically designed seat bag provides a comfortable ride and effectively relieves driving fatigue. After thickening, the shock absorption improves the comfort of the motorcycle and the operation ability is stronger.
4. Clear display of mechanical instruments, simple layout. The whole car uses high-quality lamps, the light source is concentrated, and the night driving is safer.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
