PRESCRIPTION
CH-028

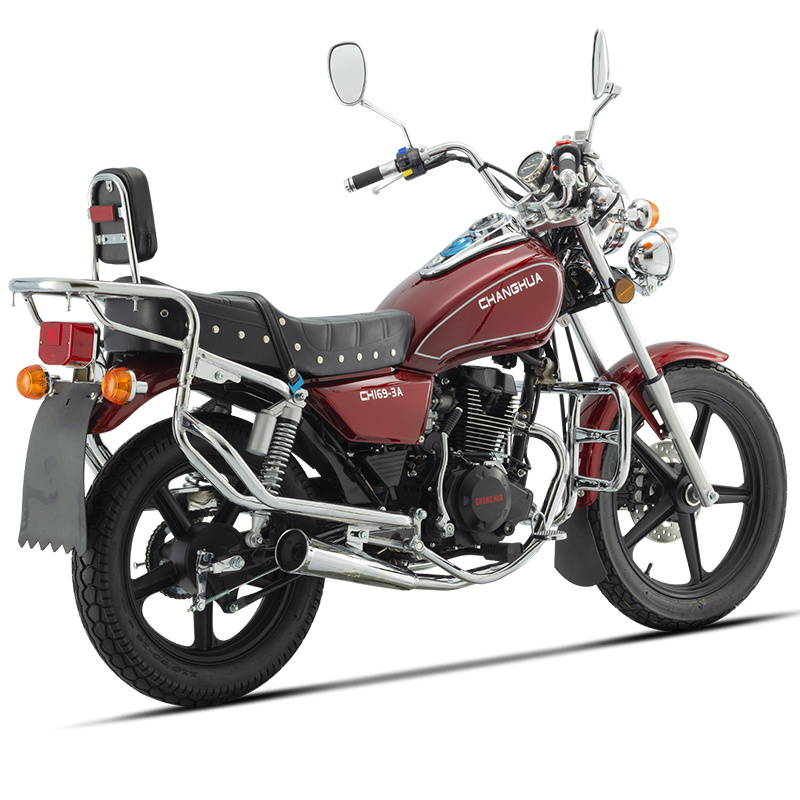

Beautiful shape, can be customized appearance decals, design more fashionable. The new sturdy aluminum wheels, a mechanical circular instrument panel with a stainless steel shell, and the new chrome-plated headlights are durable. The large-cylinder engine is equipped with dual exhaust pipes to provide sufficient torque and power to release potential. High-strength front guard bar provides additional support and stability. The appearance of a large number of metal plating process, enhanced metal hardness, shining. The anti-fall backrest and large pedals enhance the comfort of the passenger.
Key words:
Classification:
Two-wheeler
Hotline:
CH-028
Graphic Details
Product Parameters
| No. | CH-028 | ||||
| Model | CH150-3A | Body optional color | Red/Black/White/Blue | ||
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body | Length * width * height (mm) | 2050*880*1165 |
| Cylinder diameter x stroke (mm) | 62*49.5 | Seat height (mm) | 790 | ||
| Displacement (ml) | 150 | Ground clearance (mm) | 135 | ||
| Compression ratio | 9.0:1 | Wheelbase (mm) | 1360 | ||
| Peak power (kw/r/min) | 8.2kw/8500r/Min | curb weight (KG) | 126 | ||
| Peak torque (Nm/r/min) | 10N.m/7500r/Min | Fuel tank capacity (L) | 14 | ||
| Start mode | Electric/foot start | Tire specifications | Front 3.25-18, rear 110/90-16 | ||
| Maximum design speed | ≤ 85 km/h | Brake type | Front Disc Rear Drum | ||

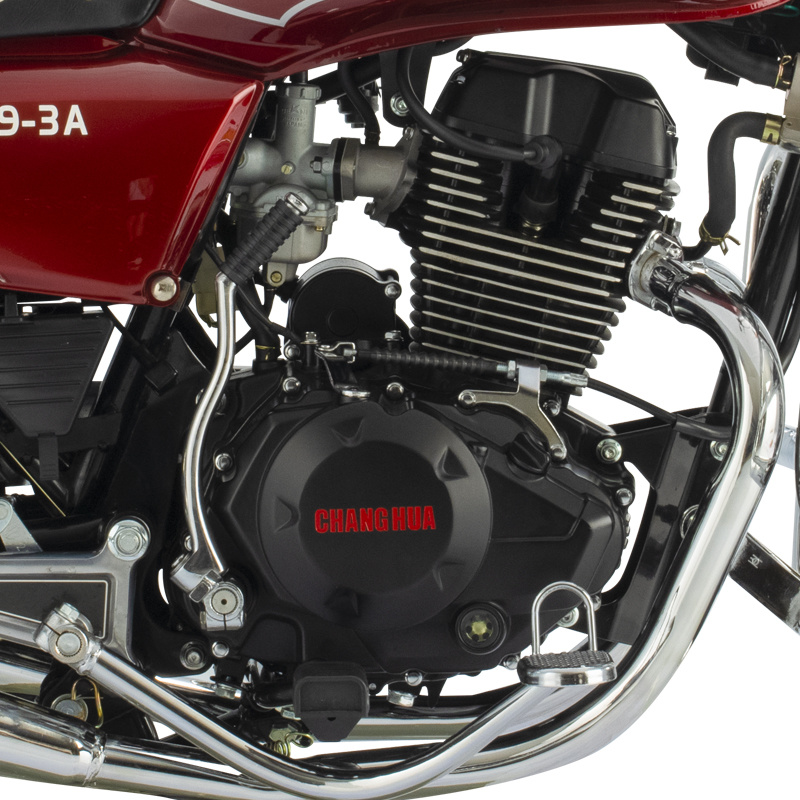

1. Single-cylinder four-stroke, air-cooled large-cylinder engine with dual exhaust pipes has stronger power, provides sufficient torque and power, and has excellent power performance and handling performance.
2. High-strength front bumper provides additional support and stability. The excellent suspension system ensures a comfortable driving experience even under high loads.
3. The front brake adopts a single disc form to enhance the braking performance. Widen the rear tires and rear airbag shock absorption to improve vehicle stability.
4. With stainless steel shell instrument panel and chrome-plated headlights, the shape is more luxurious. The light source of the lamp is concentrated, and it is safer to drive at night.
