PRESCRIPTION
CH-023

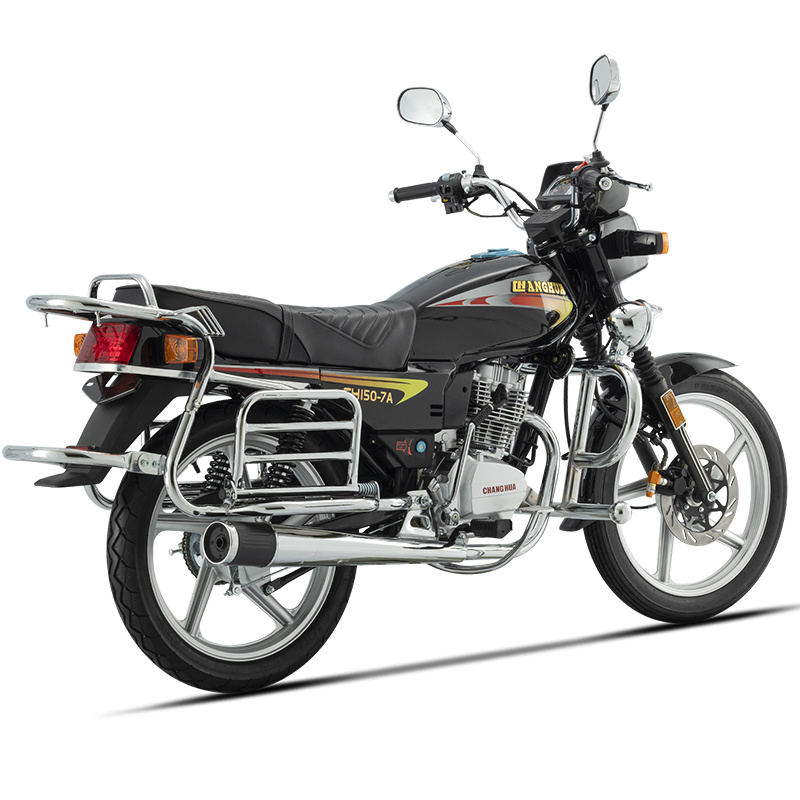

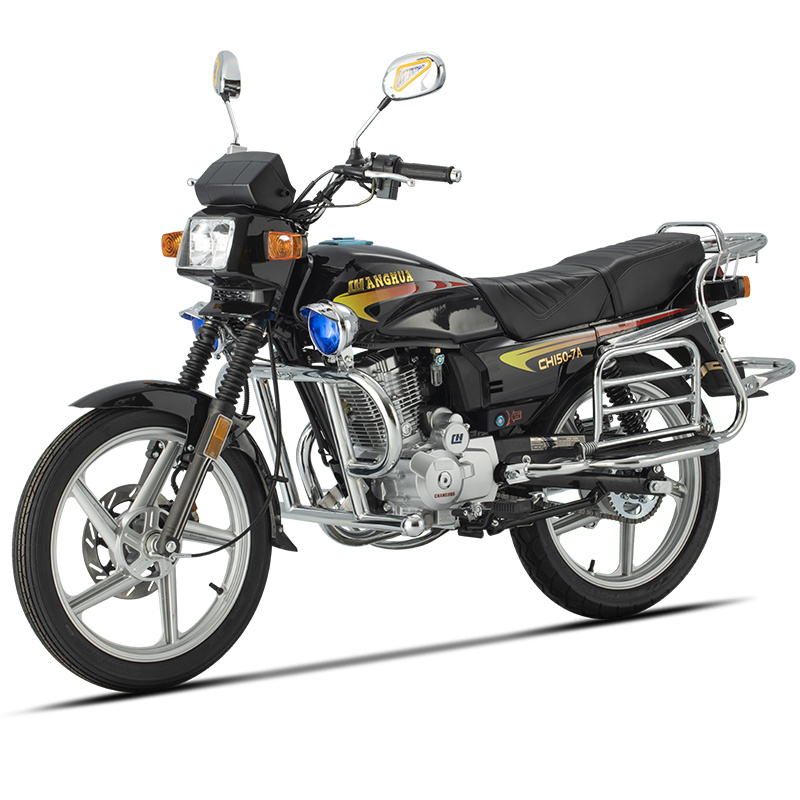

Classic square lamp hood shape, the perfect fusion of retro aesthetics and modern engineering. Increase the rear shelf and large pedals to enhance the comfort of the passenger, suitable for carrying people and cargo. A powerful engine is equipped to provide sufficient torque and power, lower fuel consumption, and release potential. The streamlined fuel tank is equipped with a luxurious decorative cover, and the lines of the whole vehicle are smooth and beautiful. The front disc brake device is used to greatly enhance the braking performance. The seat bag is of moderate height, suitable for most people, gold three-point sitting position, feet easily on the ground, to ensure comfortable and easy riding posture.
Key words:
Classification:
Two-wheeler
Hotline:
CH-023
Graphic Details
Product Parameters
| No. | CH-023 | ||||
| Model | CH150-7A | Body optional color | Red/Black/White/Blue | ||
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body | Length * width * height (mm) | 2100*800*1100 |
| Cylinder diameter x stroke (mm) | 62*49.5 | Seat height (mm) | 760 | ||
| Displacement (ml) | 150 | Ground clearance (mm) | 150 | ||
| Compression ratio | 9.0:1 | Wheelbase (mm) | 1295 | ||
| Peak power (kw/r/min) | 8.2kw/8500r/Min | curb weight (KG) | 117 | ||
| Peak torque (Nm/r/min) | 10N.m/7500r/Min | Fuel tank capacity (L) | 12 | ||
| Start mode | Electric/foot start | Tire specifications | Front 2.75-18, rear 3.00-18 | ||
| Maximum design speed | ≤ 85 km/h | Brake type | Front Disc Rear Drum | ||
1. The motorcycle combines the advantages of classic design, modern performance and economic benefits. Single-cylinder four-stroke, air-cooled engine, stronger power, lower fuel consumption, excellent power performance and handling performance.
2. The rear scooter has a flap to strengthen the cargo carrying capacity. The excellent suspension system ensures a comfortable driving experience even under high loads. The front brake adopts a single disc form, which greatly enhances the braking performance.
3. The ergonomically designed seat bag has a moderate height, suitable for most people, and the feet can land easily to ensure a comfortable and relaxed riding posture. The large foot pedal with flap enhances the passenger's comfort and cargo carrying capacity.

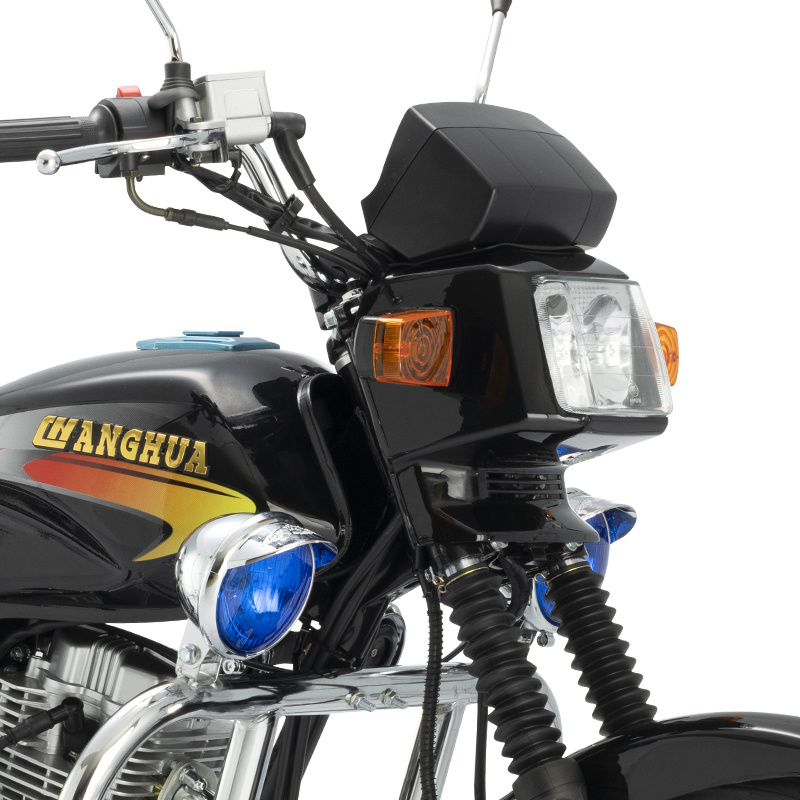

4. Classic square lamp hood shape, perfect fusion of retro aesthetics and modern engineering. High-brightness headlights with high-quality fog lights, concentrated light, safer driving in foggy days and at night.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
