CH-010
Classic GN styling, retro glass round headlights. Headlights, front mud plates with protective bars, seven-rib aluminum wheels, and exterior parts are heavily plated with metal. The single-cylinder 125CC engine has stronger power and lower fuel consumption. Widened rear tires, thickened rear shock absorption, enhance vehicle stability. The seat bag height is moderate, closer to the natural state of sitting.
Key words:
Classification:
Two-wheeler
Hotline:
CH-010
Graphic Details
Product Parameters
| No. | CH-010 | ||||
| Model | CH150-6B | Body optional color | Red/Black/White/Blue | ||
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body | Length * width * height (mm) | 2010*825*1130 |
| Cylinder diameter x stroke (mm) | 62*49.5 | Seat height (mm) | 760 | ||
| Displacement (ml) | 150 | Ground clearance (mm) | 160 | ||
| Compression ratio | 9.0:1 | Wheelbase (mm) | 1310 | ||
| Peak power (kw/r/min) | 8.2kw/8500r/Min | curb weight (KG) | 114 | ||
| Peak torque (Nm/r/min) | 10N.m/7500r/Min | Fuel tank capacity (L) | 9.5 | ||
| Start mode | Electric/foot start | Tire specifications | Front 2.75-18, rear 100/90-16 | ||
| Maximum design speed | ≤ 85 km/h | Brake type | Front Disc Rear Drum | ||

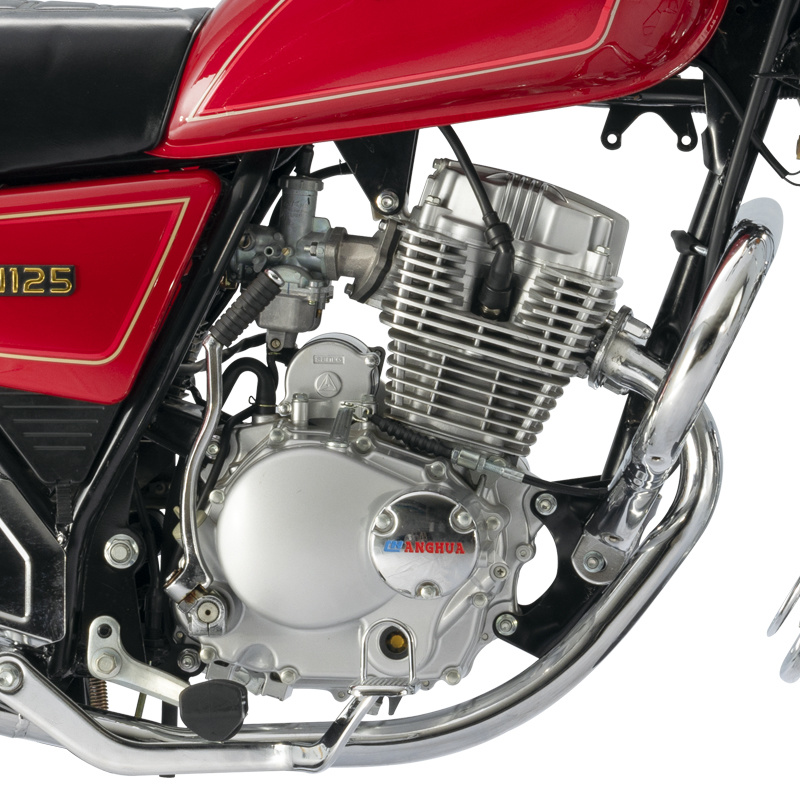

1. The single-cylinder 125CC engine has stronger power, lower fuel consumption, larger fuel tank, and stronger endurance.
2. A large number of vehicle appearance parts use metal plating process to enhance metal hardness and shine. The smooth lines outline the drop-type fuel tank and the steady and generous body.
3. The excellent thickened rear shock absorption system shows that the body is stronger and stronger, and improves driving safety.

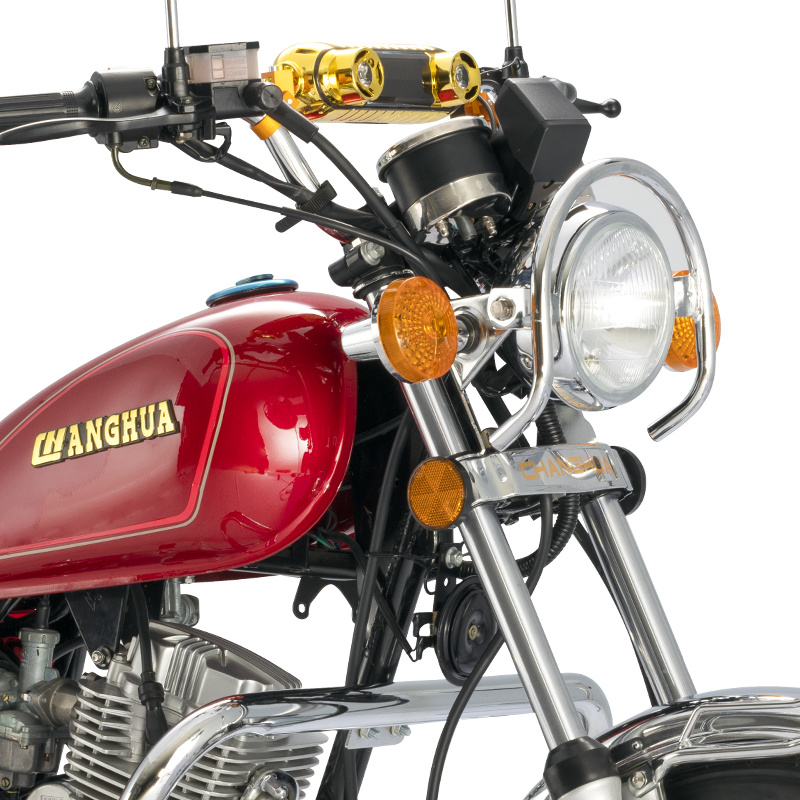

4. Classic GN shape, retro glass round headlights, showing personality charm.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
