CH-030
Vehicle structure is simple, smooth lines. Using powerful 110CC engine, mature technology, stronger power, lower fuel consumption, stable quality and reliable performance. A high elastic seat bag suitable for human sitting posture, with moderate height, which is closer to the natural sitting posture. Ensure the riding comfort.
Key words:
Classification:
Two-wheeler
Hotline:
CH-030
Graphic Details
Product Parameters
| No. | CH-030 | ||||
| Model | CH-030 | Body optional color | Red/Black/White/Blue | ||
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body | Length * width * height (mm) | 1970 × 660 × 1100 |
| Cylinder diameter x stroke (mm) | 52.4 × 49.5 | Seat height (mm) | / | ||
| Displacement (ml) | 110 | Ground clearance (mm) | 150 | ||
| Compression ratio | 9.0:1 | Wheelbase (mm) | 1210 | ||
| Peak power (kw/r/min) | 5.0/7500 | curb weight (KG) | 96 | ||
| Peak torque (Nm/r/min) | 7.0/6000 | Fuel tank capacity (L) | / | ||
| Start mode | Electric start | Tire specifications | Front 2.50-17, rear 2.75-17 | ||
| Maximum design speed | ≤ 75 km/h | Brake type | Front Drum Rear Drum | ||

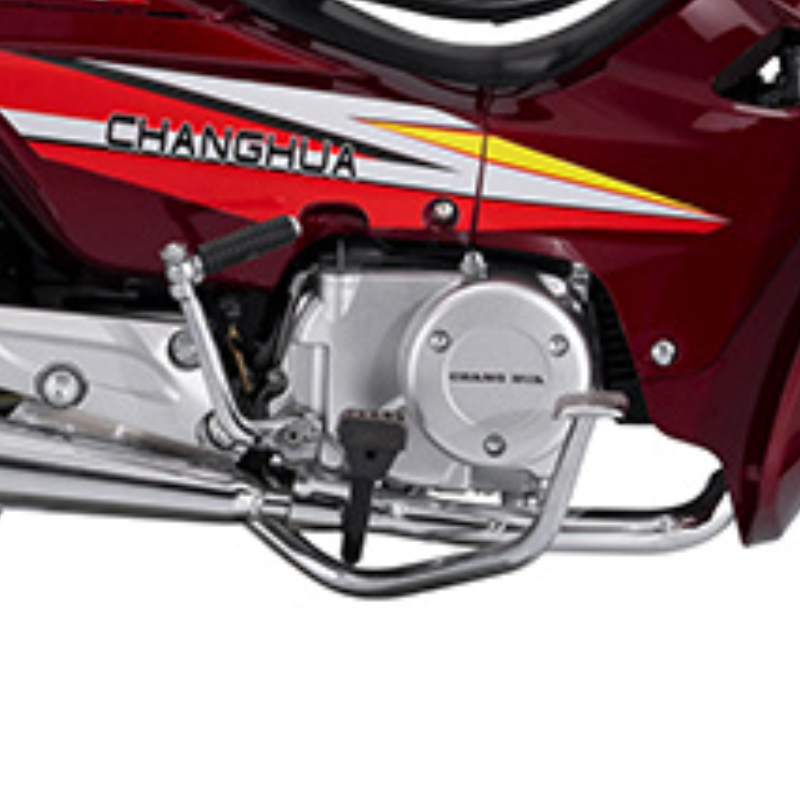

1. The 110CC air-cooled engine has stronger power, lower fuel consumption, and excellent power performance and handling performance.
2. The height of the seat bag is moderate, which is closer to the natural sitting posture, ensuring that the arms, waist, back and legs are relaxed, and the comfort of carrying can be well guaranteed.
3. Powerful practical functions, with front basket and middle shelf, large-capacity storage box under the seat, which can store various items and facilitate travel.
4. Integrated headlights and turn signals, concentrated light sources, safer driving at night.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
