PRESCRIPTION
CH-008

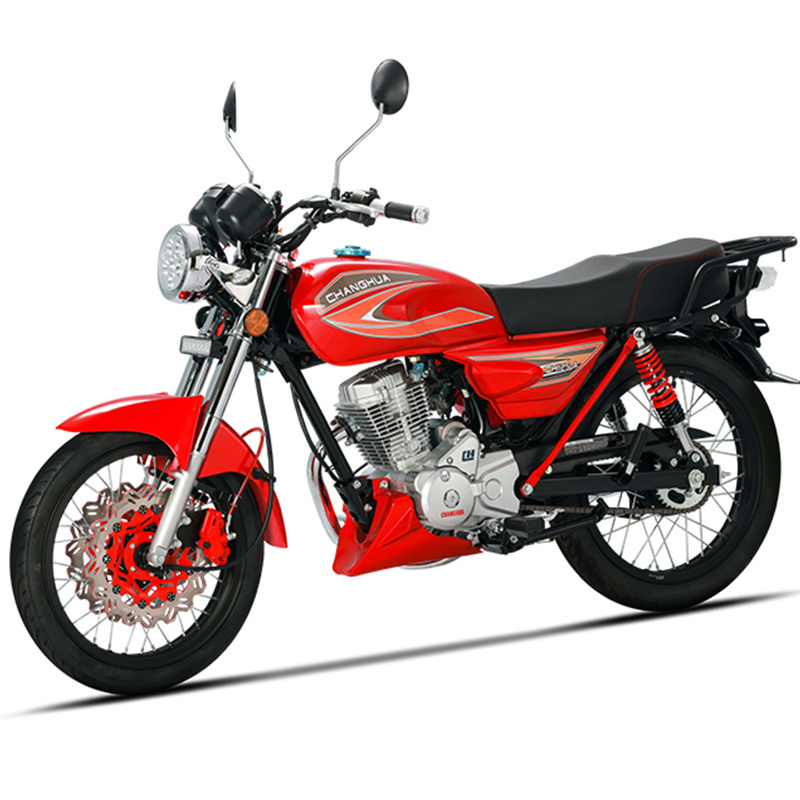

High quality engine guard, focus on the protection of the engine. Motorcycle body reinforcement, large double disc brakes, the whole car LED lights, LCD instrument panel. The single-cylinder 125CC engine has stronger power, lower fuel consumption, larger fuel tank, and stronger endurance. The fully enclosed front shock absorber is a high-elastic seat bag suitable for the sitting posture of the human body to ensure the driving comfort of the rider.
Key words:
Classification:
Two-wheeler
Hotline:
CH-008
Graphic Details
Product Parameters
| No. | CH-008 | ||||
| Model | CG（CH125-A) | Body optional color | Red/Black/White/Blue | ||
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body | Length * width * height (mm) | 1970*770*1030 |
| Cylinder diameter x stroke (mm) | 56.5*49.5 | Seat height (mm) | 780 | ||
| Displacement (ml) | 125 | Ground clearance (mm) | 120 | ||
| Compression ratio | 9.0:1 | Wheelbase (mm) | 1290 | ||
| Peak power (kw/r/min) | 7.2kw/8500r/Min | curb weight (KG) | 104 | ||
| Peak torque (Nm/r/min) | 8.5N.m/7500r/Min | Fuel tank capacity (L) | 10 | ||
| Start mode | Electric/foot start | Tire specifications | Front 2.5-17, rear 2.75-18 | ||
| Maximum design speed | ≤ 85 km/h | Brake type | Front Disc Rear Drum | ||
Product display

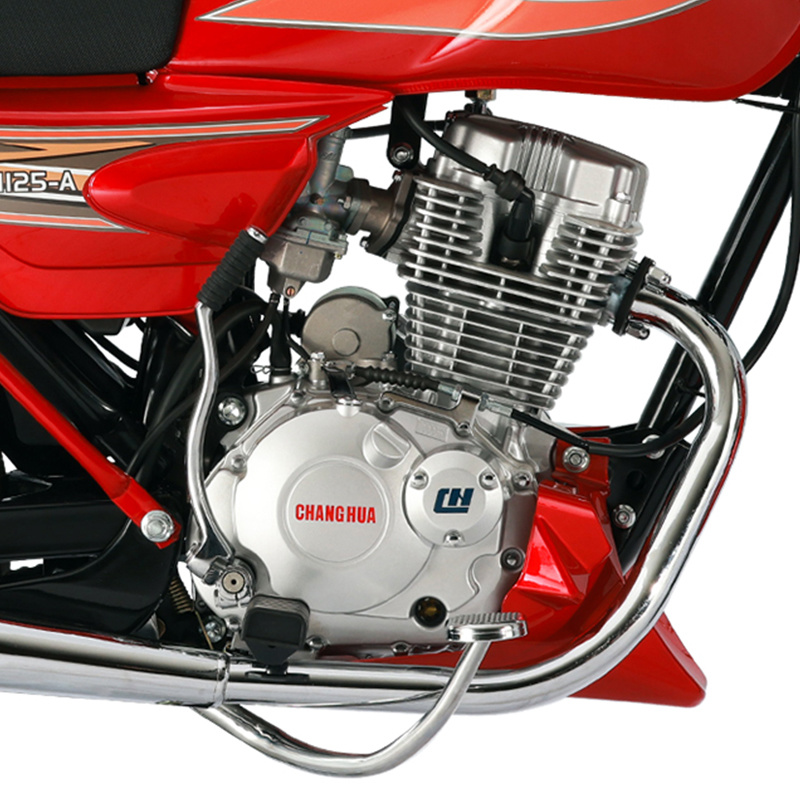

1. The single-cylinder 125CC engine has stronger power, lower fuel consumption, larger fuel tank, and stronger endurance. It has excellent power performance and handling performance.
2. The front wheel adopts a double disc brake system, which greatly improves the braking ability of the motorcycle and ensures the safety of the rider.
3. Ergonomic high rebound seat bag, comfortable ride, precise adjustment of driving posture, effectively relieve driving fatigue.

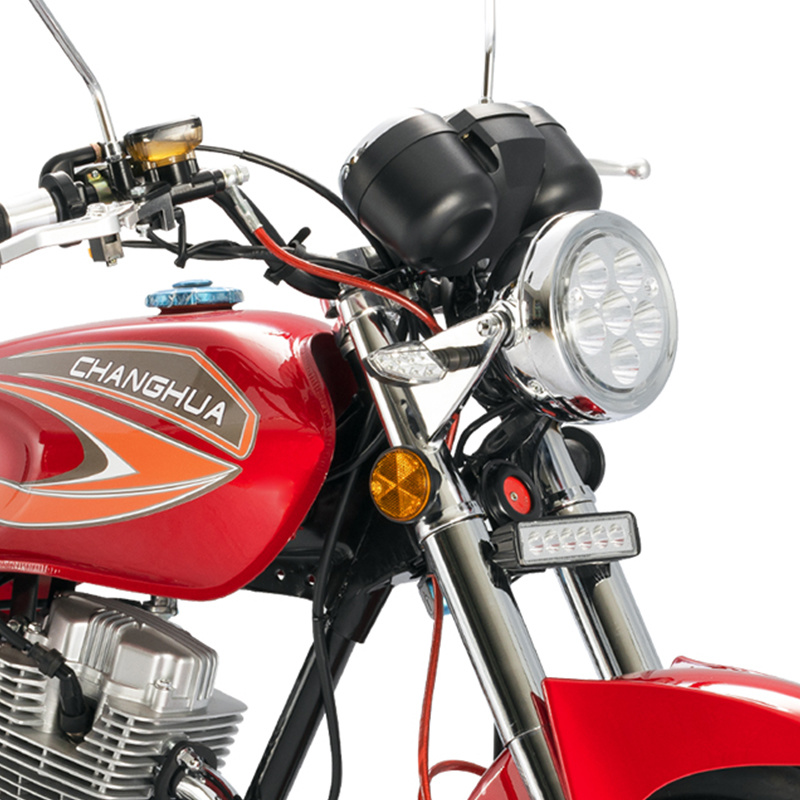

4. The LCD instrument panel accurately conveys the information and status of the motorcycle. The whole car uses high-quality LED lamps to ensure driving safety and clarity.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
Previous Page
CH-009
Next Page
CH-008
High quality engine guard, focus on the protection of the engine. Motorcycle body reinforcement, large double disc brakes, the whole car LED lights, LCD instrument panel. The single-cylinder 125CC engine has stronger power, lower fuel consumption, larger fuel tank, and stronger endurance. The fully enclosed front shock absorber is a high-elastic seat bag suitable for the sitting posture of the human body to ensure the driving comfort of the rider.
Key words:
Classification:
Product accessories:
Hotline:
Product Details
Product Parameters
| No. | CH-008 | ||||
| Model | CG（CH125-A) | Body optional color | Red/Black/White/Blue | ||
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body | Length * width * height (mm) | 1970*770*1030 |
| Cylinder diameter x stroke (mm) | 56.5*49.5 | Seat height (mm) | 780 | ||
| Displacement (ml) | 125 | Ground clearance (mm) | 120 | ||
| Compression ratio | 9.0:1 | Wheelbase (mm) | 1290 | ||
| Peak power (kw/r/min) | 7.2kw/8500r/Min | curb weight (KG) | 104 | ||
| Peak torque (Nm/r/min) | 8.5N.m/7500r/Min | Fuel tank capacity (L) | 10 | ||
| Start mode | Electric/foot start | Tire specifications | Front 2.5-17, rear 2.75-18 | ||
| Maximum design speed | ≤ 85 km/h | Brake type | Front Disc Rear Drum | ||
Product display
1. The single-cylinder 125CC engine has stronger power, lower fuel consumption, larger fuel tank, and stronger endurance. It has excellent power performance and handling performance.
2. The front wheel adopts a double disc brake system, which greatly improves the braking ability of the motorcycle and ensures the safety of the rider.
3. Ergonomic high rebound seat bag, comfortable ride, precise adjustment of driving posture, effectively relieve driving fatigue.
4. The LCD instrument panel accurately conveys the information and status of the motorcycle. The whole car uses high-quality LED lamps to ensure driving safety and clarity.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
