Dazzle dance CH50T-XW

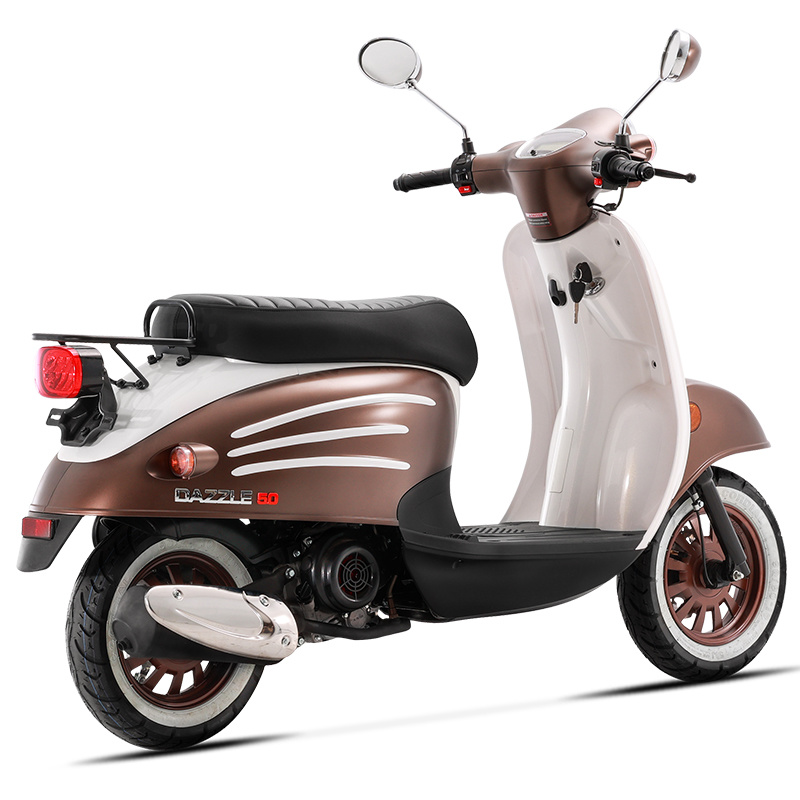

The economical retro scooter is equipped with a reliable 50CC air-cooled engine, which provides smooth acceleration while bringing amazing fuel economy. This flexible scooter uses a lightweight frame, disc brakes, and telescopic suspension for flexible operation and smooth driving. With enlarged rear shelf, optional large-capacity rear trunk. LCD instrument panel, diversified functions accurately convey the information and status of the motorcycle.
Key words:
Classification:
Scooter
Hotline:
Dazzle dance CH50T-XW
Graphic Details
Product Parameters
| No. | CH50T-XW | ||||
| Model | dazzle dance CH50T-XW | Optional body color | Red/Black/White/Blue/Customized | ||
| Engine | Engine type | J50CC, air-cooled | Body | Length * width * height (mm) | 1760x680x1040 |
| Cylinder diameter x stroke (mm) | 39 × 41.5 | Seat height (mm) | |||
| Displacement (ml) | 50 | Ground clearance (mm) | 95 | ||
| Compression ratio | 10.5:1 | Wheelbase (mm) | 1270 | ||
| Peak power (kw/r/min) | 2.2/7500 | curb weight (KG) | 89 | ||
| Peak torque (Nm/r/min) | 2.8/6000 | Fuel tank capacity (L) | 4.5 | ||
| Start mode | Electric/foot start | Tire specifications | Front 90/90-10; Rear 90/90-10 | ||
| Maximum design speed | ≤45 | Brake type | Front Disc Rear Drum | ||
Product display
1. Lightweight body design, with powerful single disc brakes, easy to cross urban roads. LCD instrument panel, diversified functions accurately convey the information and status of the motorcycle.
2. Equipped with a reliable 50CC air-cooled engine, it provides smooth acceleration while bringing amazing fuel economy.
3. Equipped with LED chrome-plated headlights, the light source is concentrated, has penetrating power, and shines to a wider place.
4. The ergonomically designed seat bag is spacious and comfortable, and the double ride also has good comfort. It is a good helper for family sharing.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
