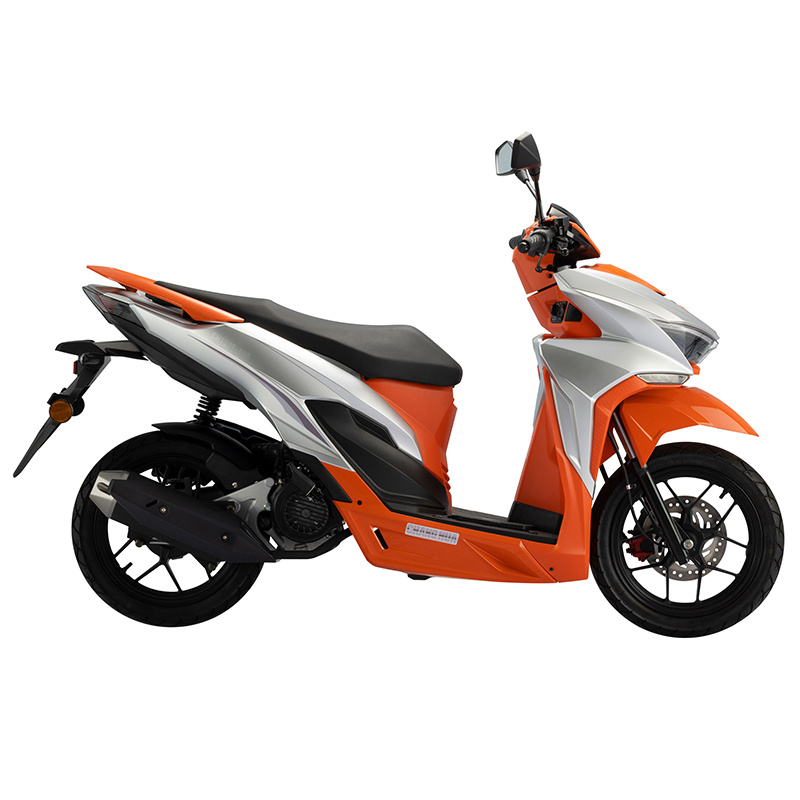

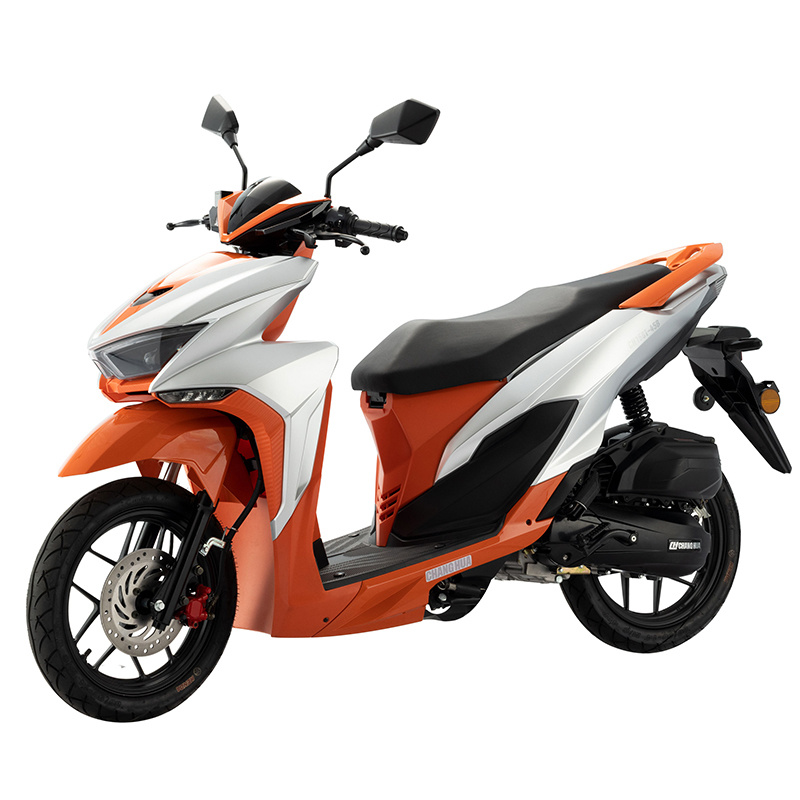

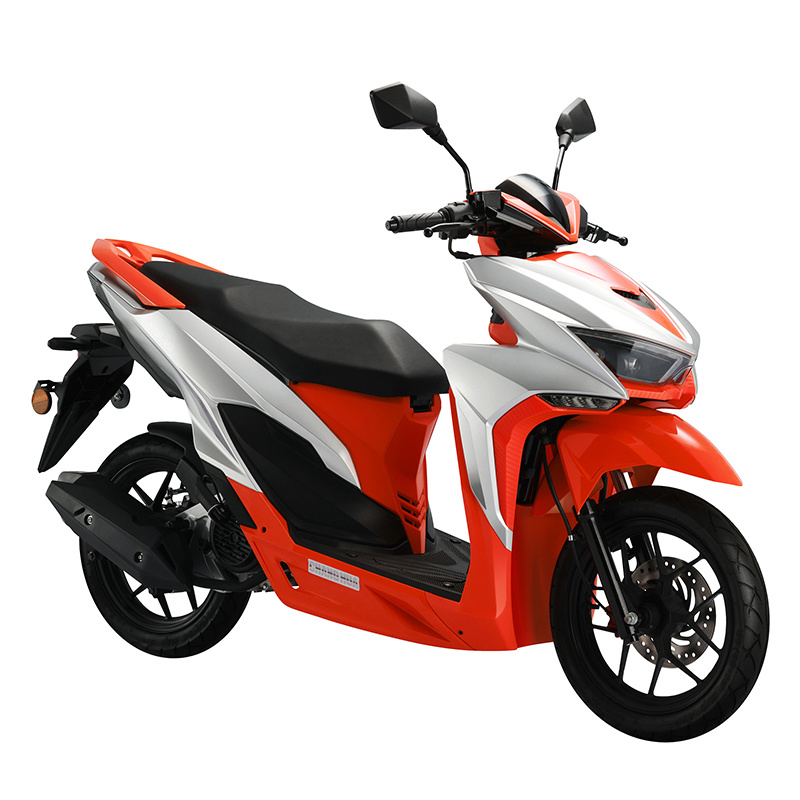

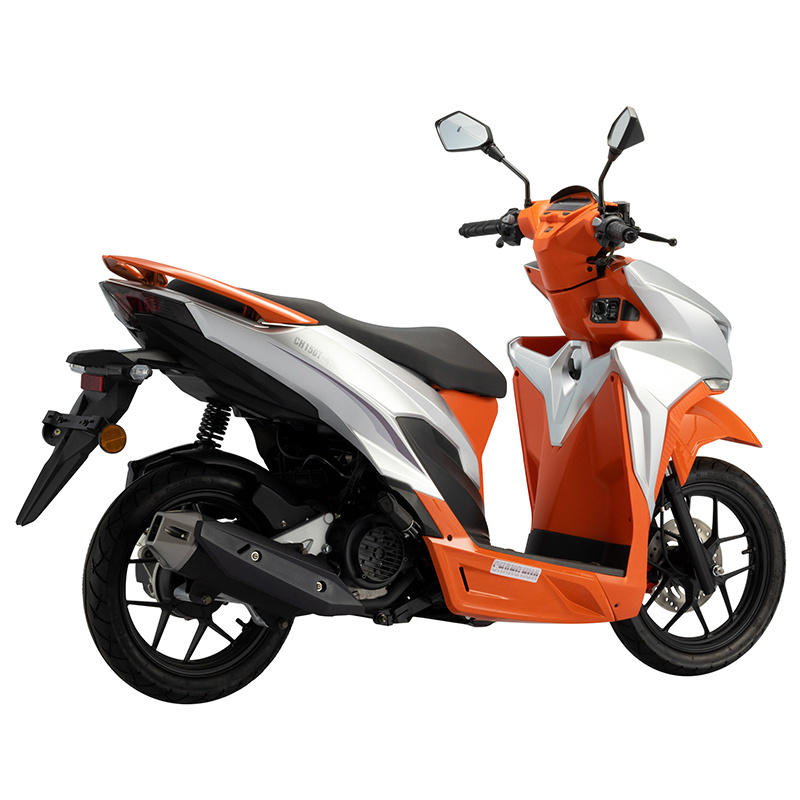

Vorio II CH125T-45B
Fashionable sports scooter, compact body, radical and innovative exterior design. Equipped with a reliable 150CC air-cooled engine, it runs quieter and has higher efficiency, which can bring amazing fuel economy while providing smooth acceleration. Lightweight design body, equipped with high rigidity frame and excellent suspension system, smooth straight running and flexible operation. The large storage space under the seat bag makes it easy to carry your essentials, making every ride a practical and enjoyable experience.
Key words:
Classification:
Scooter
Hotline:
Vorio II CH125T-45B
Graphic Details
Product Parameters
| No. | CH125T-45B | ||||
| Model | Vorio II CH125T-45B | Optional body color | Red/Black/White/Blue/Customized | ||
| Engine | Engine type | GY6-125CC, air-cooled | Body | Length * width * height (mm) | 1940 × 690 × 1115 |
| Cylinder diameter x stroke (mm) | 57.4 × 57.8 | Seat height (mm) | 740 | ||
| Displacement (ml) | 125 | Ground clearance (mm) | 130 | ||
| Compression ratio | 9.8:1 | Wheelbase (mm) | 1360 | ||
| Peak power (kw/r/min) | 5.6 | curb weight (KG) | 104 | ||
| Peak torque (Nm/r/min) | 7.4 | Fuel tank capacity (L) | 5.5 | ||
| Start mode | Electric/foot start | Tire specifications | Front 80/90-14 Rear 80/90-14 | ||
| Maximum design speed | ≤85 | Brake type | Front Disc Rear Drum | ||
1. Equipped with 150CC air-cooled engine, it runs quieter, higher efficiency, and more environmentally friendly emissions. The lightweight body design and powerful single disc brake ensure the safety and reliability of high-speed braking and easily cross urban roads.
2. The front suspension adopts a long-stroke telescopic simple front shock absorber, which has good rigidity and can withstand the strong impact of high-speed or uneven roads, and quickly absorb vibration. Then it is equipped with a thickened rear shock absorber for better shock absorption performance.
3. Equipped with high-quality headlights and taillights, the light source is concentrated, has penetrating power, and shines to a wider place. The LCD instrument panel is clearly readable under various lighting conditions, ensuring that the rider can understand the status of the vehicle at any time.
4, ergonomically designed double seat cushion, two people riding a more relaxed space. Integrated rear armrests provide better ride comfort.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
