Products
PRESCRIPTION

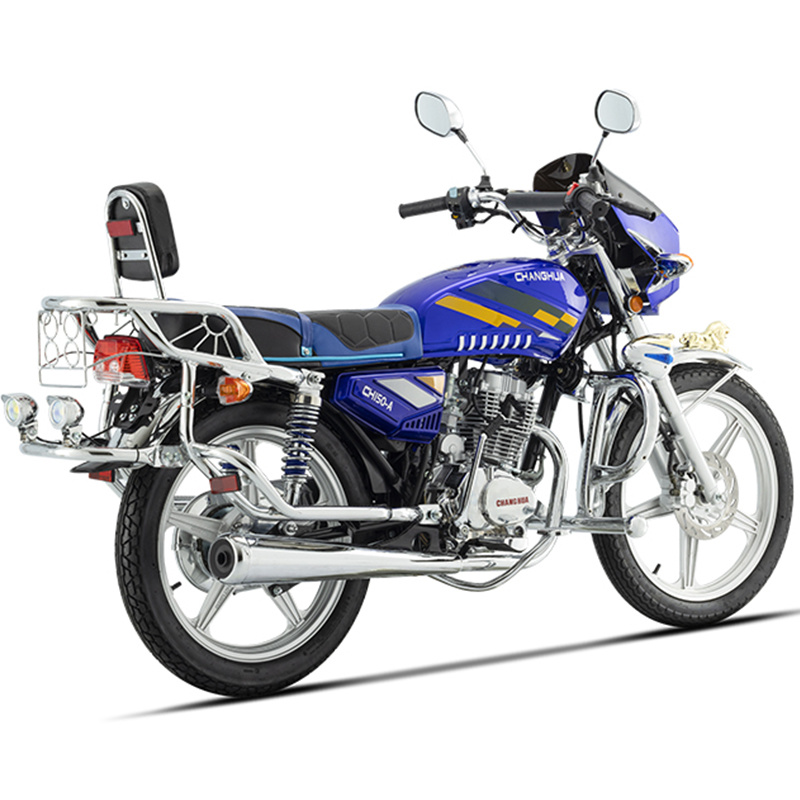

CH-004
Advanced and luxurious CG modeling, integrated windshield and domineering fuel tank appearance design, equipped with LED headlights, front and rear high-brightness fog lights, high-intensity front and rear bumper, more luxurious. Equipped with a single-cylinder 150CC engine, it has stronger power and lower fuel consumption. Large-capacity fuel tank, longer battery life. High cushioning shock absorber, moderate hardness. In line with the human body high rebound seat bag, comfortable ride, accurate adjustment of driving posture, effectively alleviate driving fatigue.
Key words:
Classification:
Two-wheeler
Hotline:
CH-004
Graphic Details
Product Parameters
| No. | CH-004 | ||||
| Model | CG（CH150-A) | Body optional color | Red/Black/White/Blue | ||
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body | Length * width * height (mm) | 2050*750*1120 |
| Cylinder diameter x stroke (mm) | 62*49.5 | Seat height (mm) | 780 | ||
| Displacement (ml) | 150 | Ground clearance (mm) | 120 | ||
| Compression ratio | 9.0:1 | Wheelbase (mm) | 1250 | ||
| Peak power (kw/r/min) | 8.2kw/8500r/Min | curb weight (KG) | 115 | ||
| Peak torque (Nm/r/min) | 10N.m/7500r/Min | Fuel tank capacity (L) | 8.6 | ||
| Start mode | Electric/foot start | Tire specifications | Front 2.75-18, rear 3.00-18 | ||
| Maximum design speed | ≤ 85 km/h | Brake type | Front Disc Rear Drum | ||
Product display

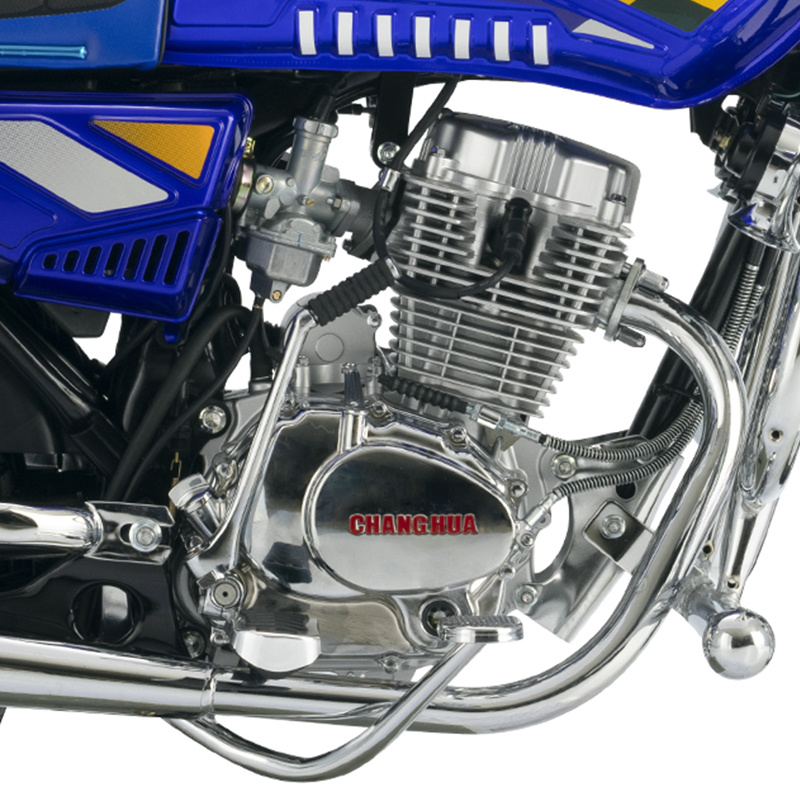

1. The chrome-plated single-cylinder 150CC engine has a more dazzling appearance, stronger power, lower fuel consumption, and simple maintenance. It has excellent power performance and handling performance.
2. The one-piece windshield and tough and domineering large-capacity fuel tank in line with aerodynamics have stronger endurance and more luxurious overall shape.
3. The front and rear high-strength guard bars of the whole vehicle provide additional support and stability, making the motorcycle easier to control. Equipped with a moderate height seat bag, closer to the natural state of sitting posture, can ensure a good riding experience.

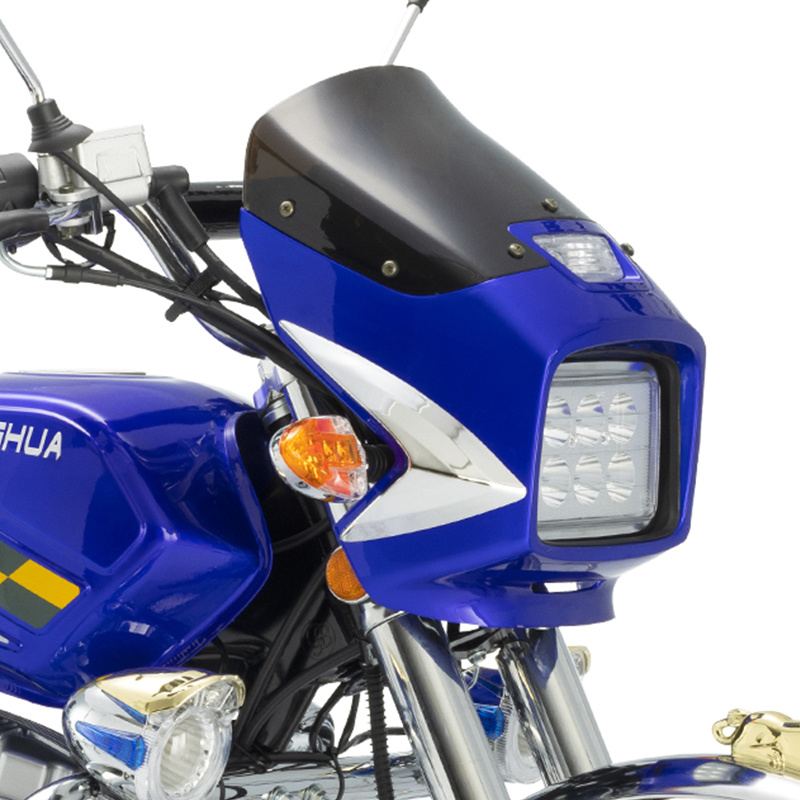

4. LED headlights, concentrated light source, and high-quality fog lights on the front bumper to improve the safety of driving in foggy days.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
Previous Page
CH-005
Next Page
CH-004
Advanced and luxurious CG modeling, integrated windshield and domineering fuel tank appearance design, equipped with LED headlights, front and rear high-brightness fog lights, high-intensity front and rear bumper, more luxurious. Equipped with a single-cylinder 150CC engine, it has stronger power and lower fuel consumption. Large-capacity fuel tank, longer battery life. High cushioning shock absorber, moderate hardness. In line with the human body high rebound seat bag, comfortable ride, accurate adjustment of driving posture, effectively alleviate driving fatigue.
Key words:
Classification:
Product accessories:
Hotline:
Product Details
Product Parameters
| No. | CH-004 | ||||
| Model | CG（CH150-A) | Body optional color | Red/Black/White/Blue | ||
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body | Length * width * height (mm) | 2050*750*1120 |
| Cylinder diameter x stroke (mm) | 62*49.5 | Seat height (mm) | 780 | ||
| Displacement (ml) | 150 | Ground clearance (mm) | 120 | ||
| Compression ratio | 9.0:1 | Wheelbase (mm) | 1250 | ||
| Peak power (kw/r/min) | 8.2kw/8500r/Min | curb weight (KG) | 115 | ||
| Peak torque (Nm/r/min) | 10N.m/7500r/Min | Fuel tank capacity (L) | 8.6 | ||
| Start mode | Electric/foot start | Tire specifications | Front 2.75-18, rear 3.00-18 | ||
| Maximum design speed | ≤ 85 km/h | Brake type | Front Disc Rear Drum | ||
Product display
1. The chrome-plated single-cylinder 150CC engine has a more dazzling appearance, stronger power, lower fuel consumption, and simple maintenance. It has excellent power performance and handling performance.
2. The one-piece windshield and tough and domineering large-capacity fuel tank in line with aerodynamics have stronger endurance and more luxurious overall shape.
3. The front and rear high-strength guard bars of the whole vehicle provide additional support and stability, making the motorcycle easier to control. Equipped with a moderate height seat bag, closer to the natural state of sitting posture, can ensure a good riding experience.
4. LED headlights, concentrated light source, and high-quality fog lights on the front bumper to improve the safety of driving in foggy days.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
