Products
PRESCRIPTION
Internal balance shaft engine-CH150-C, CH164FML-C
150CC/200CC single-cylinder, four-stroke, air-cooled, electric/foot start, built-in balance shaft CG engine. Performance is more superior than ordinary CG engine. The built-in balance shaft enables the engine to obtain a good balance, reduce engine vibration, greatly improve the ride comfort of the vehicle, and extend the service life of the engine. The special cover design is adopted to strengthen the supporting strength of the crankcase to the crankshaft and make the engine run more stable. The technology is mature and can be matched with carburetor and electronic injection systems.
Key words:
Classification:
Engine
Hotline:
Internal balance shaft engine-CH150-C, CH164FML-C
Graphic Details
Product Parameters
| Product Name | Built-in balance shaft engine | |||
| Product Model | CH150-C 、 CH164FML-C | |||
| Color | Silver/Custom | |||
| Gear | Cycle fifth gear/international fifth gear/non-cycle fifth gear/international sixth gear | |||
| Environmental requirements | Euro I/Euro II/EFI Euro IV | |||
| Clutch | Light clutch | |||
| Optional Displacement | 150cc /200cc | |||
| Engine Displacement Parameters | 150cc | 200cc | ||
| Peak power | 7.5/8000 kW/(r/min) | 8.6/8000 kW/(r/min) | ||
| Peak torque | 10/6500 N•m/(r/min) | 11.5/6500 N•m/(r/min) | ||
Product display
1. 150CC single-cylinder four-stroke, air-cooled, electric/foot start, built-in balance shaft CG engine. The smaller space volume makes the entire engine more concise and beautiful. The reverse vibration force generated by the eccentric weight is used to make the engine obtain a good balance, effectively reduce the vibration of the engine, and improve the ride comfort of the vehicle.

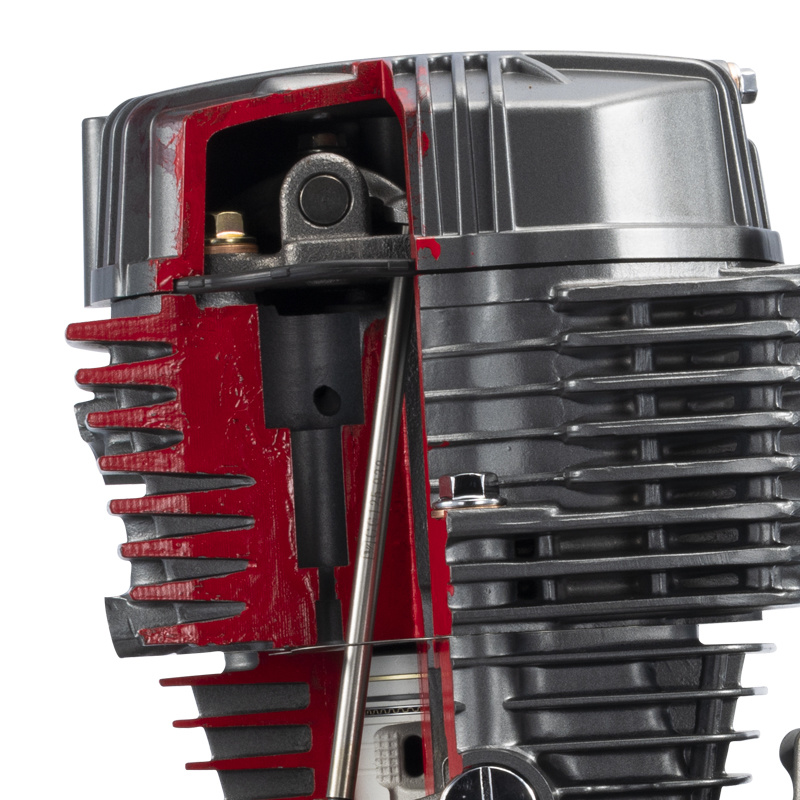

2. Adopt lightweight piston design to reduce friction and vibration and improve performance. The larger heat dissipation area ensures that the engine has continuous strong power and can maintain good performance even if it runs at high speed for a long time.
3. The engine can choose different displacements and gears, the operation is simple, and the gear shift is smoother. Suitable for CG engine parts, simple maintenance and lower cost.

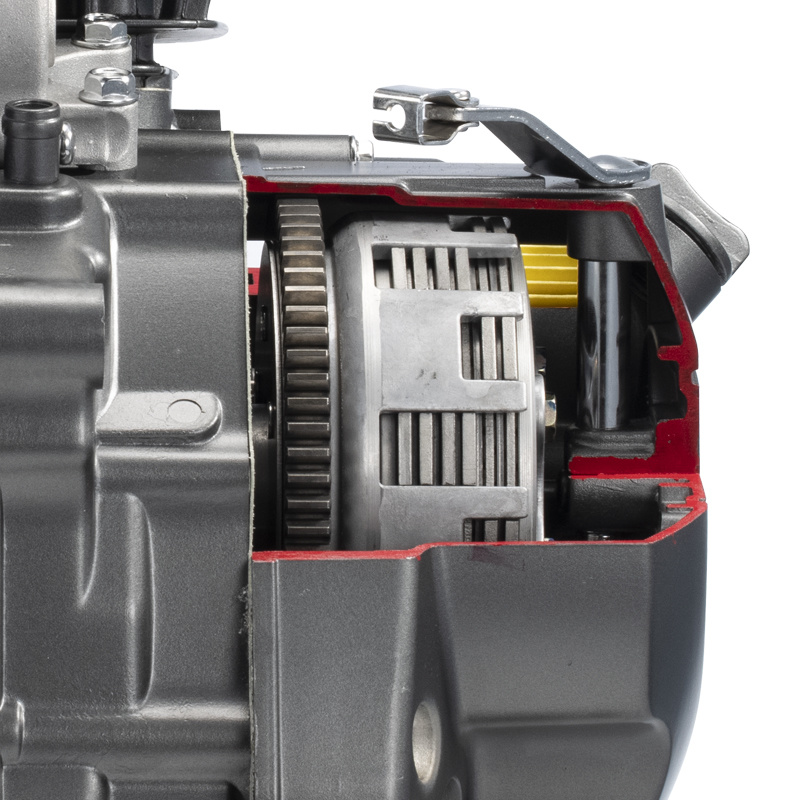

4, durable clutch assembly, to ensure that the motorcycle starts and runs smoothly, to meet the requirements of shifting, cut off the power supply, convenient braking.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
