ADV CH150T ADV

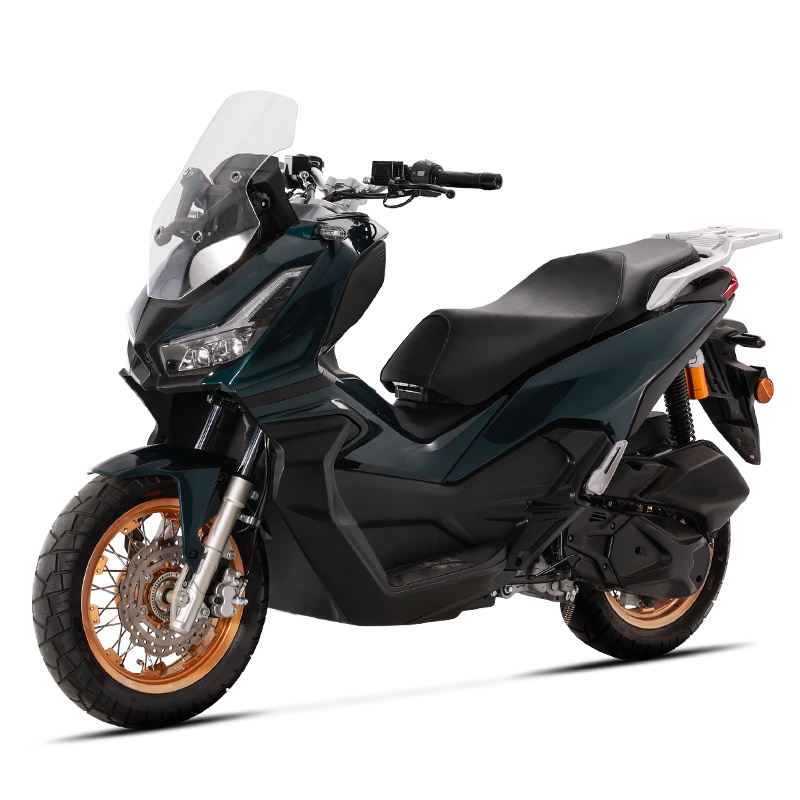

The ADV sports cruise scooter is equipped with a water-cooled 150CC/180CC engine, has a slender body, a muscular appearance, and a tall windshield to form a streamlined wind deflector. Integrated handle, TFT instrument panel, soft sofa-type seat cushion, wide and comfortable seating space. Body shape wide, luxurious LED front and rear headlights. The front 14-inch rear 13-inch wheel hub, the front and rear disc brake devices are equipped with ABS anti-lock system to ensure the safety of the rider.
Key words:
Classification:
Scooter
Hotline:
ADV CH150T ADV
Graphic Details
Product Parameters
| No. | CH150T-ADV | ||||
| Model | ADV CH150T-ADV | Optional body color | Red/Black/White/Blue/Customized | ||
| Engine | Engine type | KS150, water cooled | Body | Length * width * height (mm) | 1940x760x1250 |
| Cylinder diameter x stroke (mm) | 57.3 × 58 | Seat height (mm) | |||
| Displacement (ml) | 150 | Ground clearance (mm) | 90 | ||
| Compression ratio | 10.6:1 | Wheelbase (mm) | 1350 | ||
| Peak power (kw/r/min) | 10.5/8500 | curb weight (KG) | 138 | ||
| Peak torque (Nm/r/min) | 14/6500 | Fuel tank capacity (L) | 10.5 | ||
| Start mode | Electric start | Tire specifications | Front 110/80-14; Rear 130/70-13 | ||
| Maximum design speed | ≤ 95 | Brake type | Front Disc Rear Disc | ||
1. Create a unique and modern new sports cruise scooter, with a water-cooled 150CC/180CC engine, providing strong power, excellent heat dissipation performance, and long-term high-speed operation. Advanced EFI system, precise control of fuel injection volume, reduce fuel consumption, increase mileage, emissions more environmentally friendly.

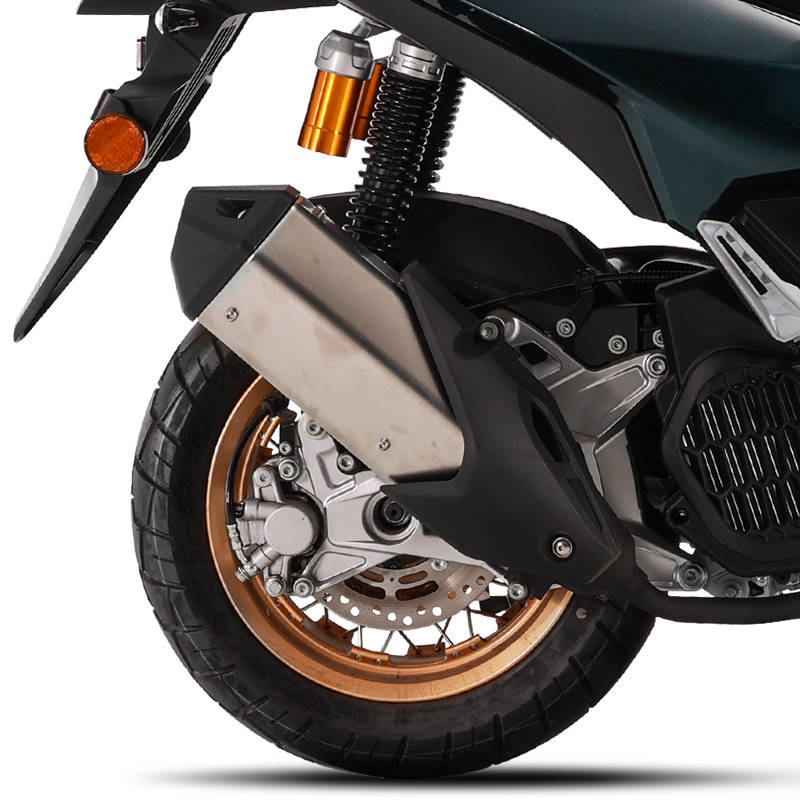

2. The front 14-inch and rear 13-inch wheels use powerful disc brakes and are equipped with ABS anti-lock braking system to provide excellent braking force. The whole vehicle adopts LED lamps, which is penetrating and brighter.

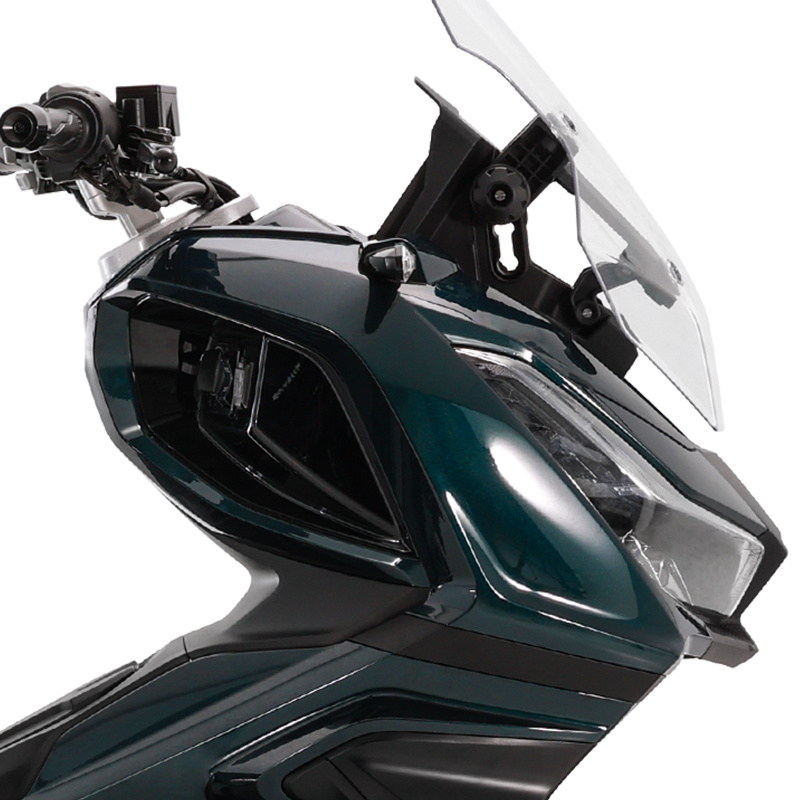

3,7-inch TFT instrument panel, diversified functions accurately convey the information and status of the motorcycle, providing drivers with a safer and more comfortable driving pleasure. Adjustable windshield to provide wind protection and more beautiful appearance of the whole vehicle
4. Equipped with a key start function, bid farewell to the troubles of groping for old-fashioned keys. The large-capacity storage space under the seat bag, the fairing includes two hidden storage boxes with a USD interface, and a large rear trunk is optional, which further provides convenience for long-distance travel.
