PRESCRIPTION
CH-013

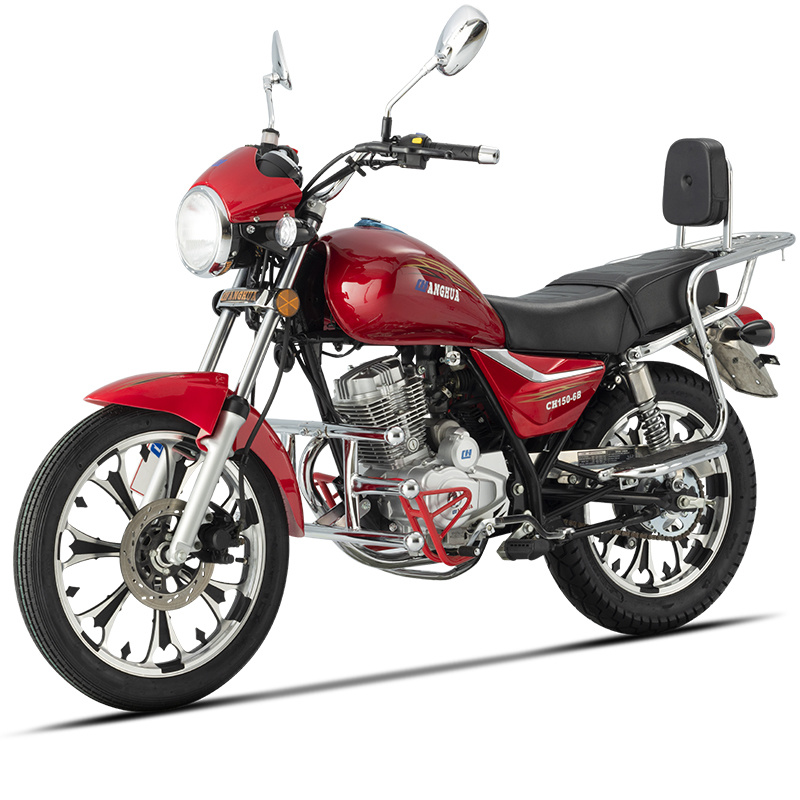

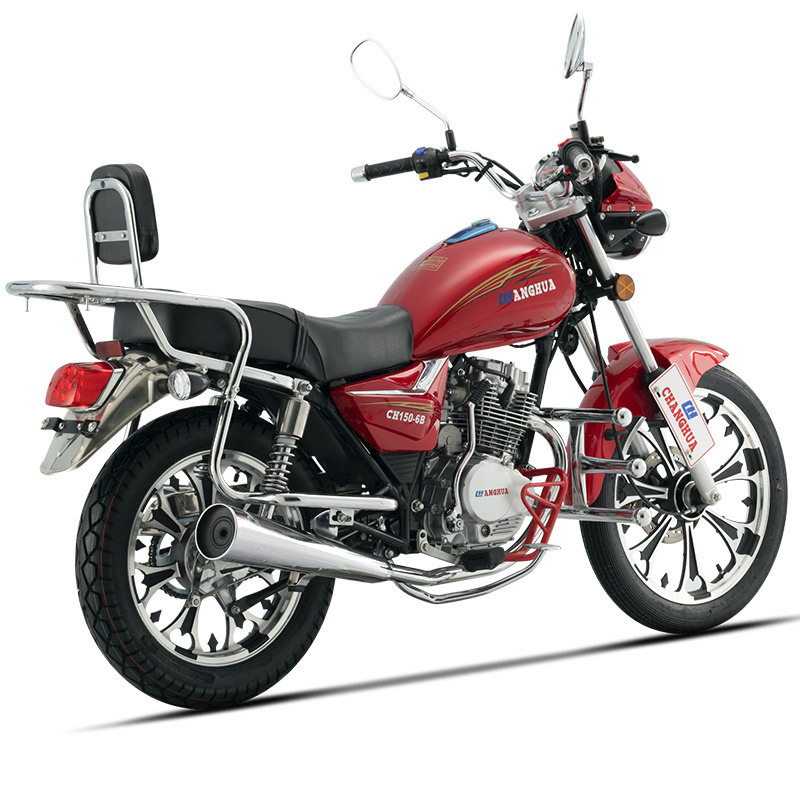

Classic GN model, headlights with deflector, more streamlined body, showing personality charm. The rear backrest and large pedals enhance the comfort of the passenger. High-strength front guard bar provides additional support and stability. A powerful engine is equipped to provide sufficient torque and power, lower fuel consumption, and release potential. A large number of vehicle appearance parts use metal plating process to enhance metal hardness and shine.
Key words:
Classification:
Two-wheeler
Hotline:
CH-013
Graphic Details
Product Parameters
| No. | CH-013 | ||||
| Model | CH150-6B | Body optional color | Red/Black/White/Blue | ||
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body | Length * width * height (mm) | 2020*825*1130 |
| Cylinder diameter x stroke (mm) | 62*49.5 | Seat height (mm) | 760 | ||
| Displacement (ml) | 150 | Ground clearance (mm) | 160 | ||
| Compression ratio | 9.0:1 | Wheelbase (mm) | 1310 | ||
| Peak power (kw/r/min) | 8.2kw/8500r/Min | curb weight (KG) | 118 | ||
| Peak torque (Nm/r/min) | 10N.m/7500r/Min | Fuel tank capacity (L) | 15 | ||
| Start mode | Electric/foot start | Tire specifications | Front 2.75-18, rear 100/90-16 | ||
| Maximum design speed | ≤ 85 km/h | Brake type | Front Disc Rear Drum | ||

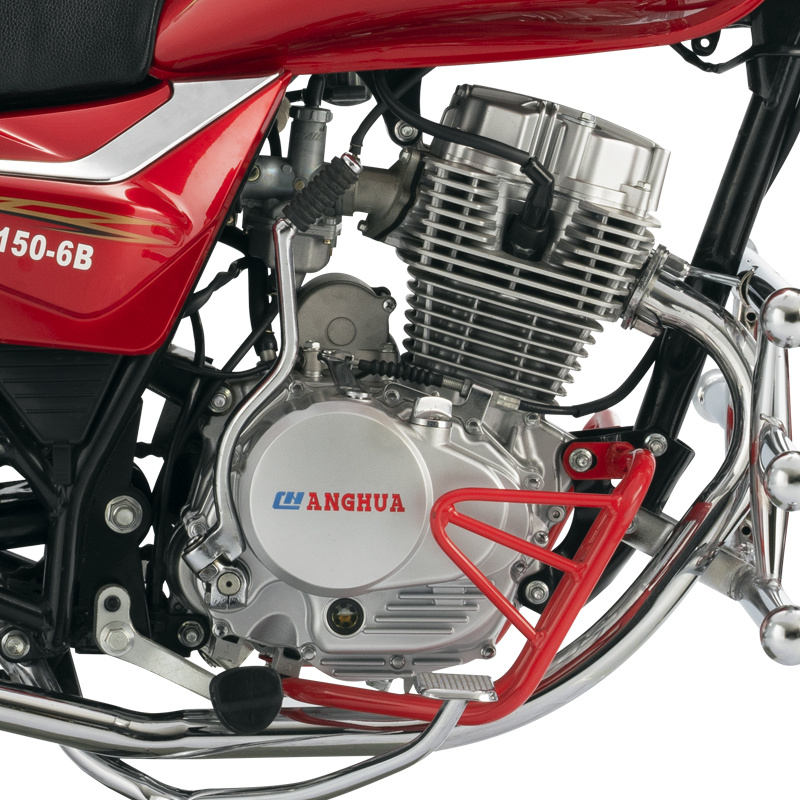

1. Single-cylinder four-stroke, air-cooled engine, stronger power and lower fuel consumption. The engine is equipped with left and right guards to better protect the engine from collision and damage.
2. Water drop type fuel tank, stylish design and smooth lines. The excellent suspension system ensures a comfortable driving experience even under high loads.
3. The rear backrest and large pedals enhance the comfort of the passenger. High-strength front guard bar provides additional support and stability.

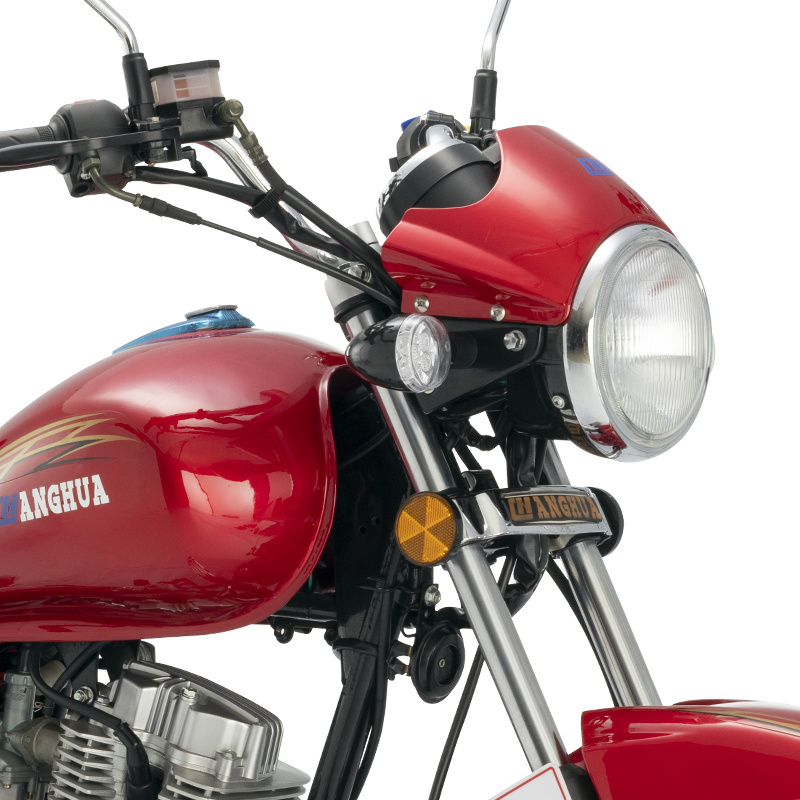

4. Classic GN model, headlights with flow deflector, more streamlined body, showing personality charm.
