PRESCRIPTION
CH-003

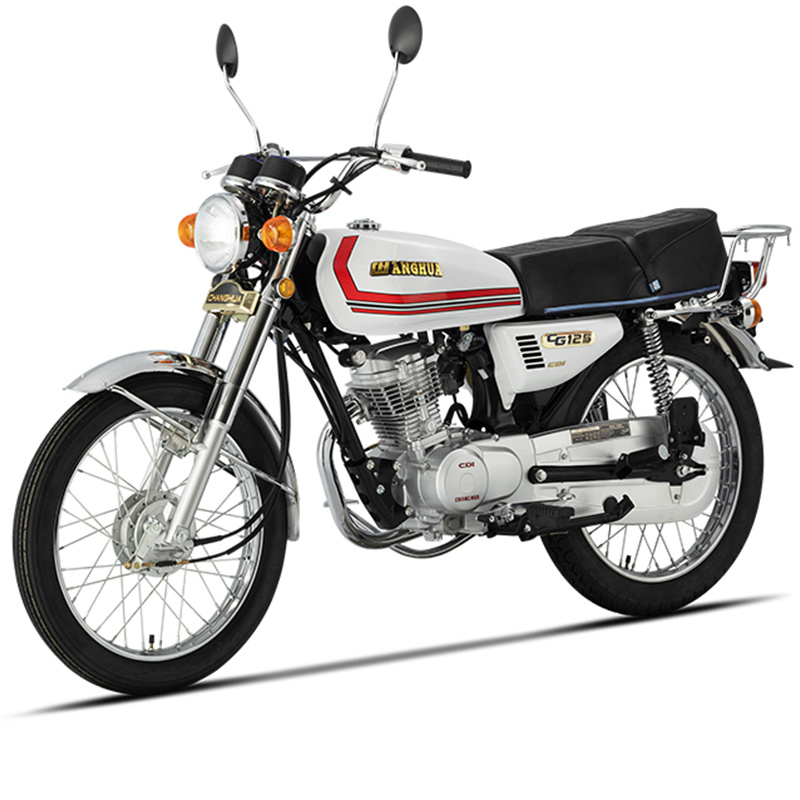

Classic and simple CG shape, threaded spoke mesh wheels, mechanical circular instrument panel and circular headlights, equipped with a single-cylinder foot-only 125CC engine, stronger power and lower fuel consumption. Large-capacity fuel tank, longer battery life. High cushioning shock absorber, moderate hardness. The thicker and wider high-rebound seat bag is comfortable to ride and can ensure a good riding experience.
Key words:
Classification:
Two-wheeler
Hotline:
CH-003
Graphic Details
Product Parameters
| No. | CH-003 | ||||
| Model | CG（CH125-A) | Body optional color | Red/Black/White/Blue | ||
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body | Length * width * height (mm) | 1960*715*1015 |
| Cylinder diameter x stroke (mm) | 56.5*49.5 | Seat height (mm) | 780 | ||
| Displacement (ml) | 125 | Ground clearance (mm) | 120 | ||
| Compression ratio | 9.0:1 | Wheelbase (mm) | 1250 | ||
| Peak power (kw/r/min) | 7.2kw/8500r/Min | curb weight (KG) | 98.5 | ||
| Peak torque (Nm/r/min) | 8.5N.m/7500r/Min | Fuel tank capacity (L) | 8.6 | ||
| Start mode | Foot start | Tire specifications | Front 2.75-18, rear 3.00-18 | ||
| Maximum design speed | ≤ 85 km/h | Brake type | Front Drum Rear Drum | ||
Product display

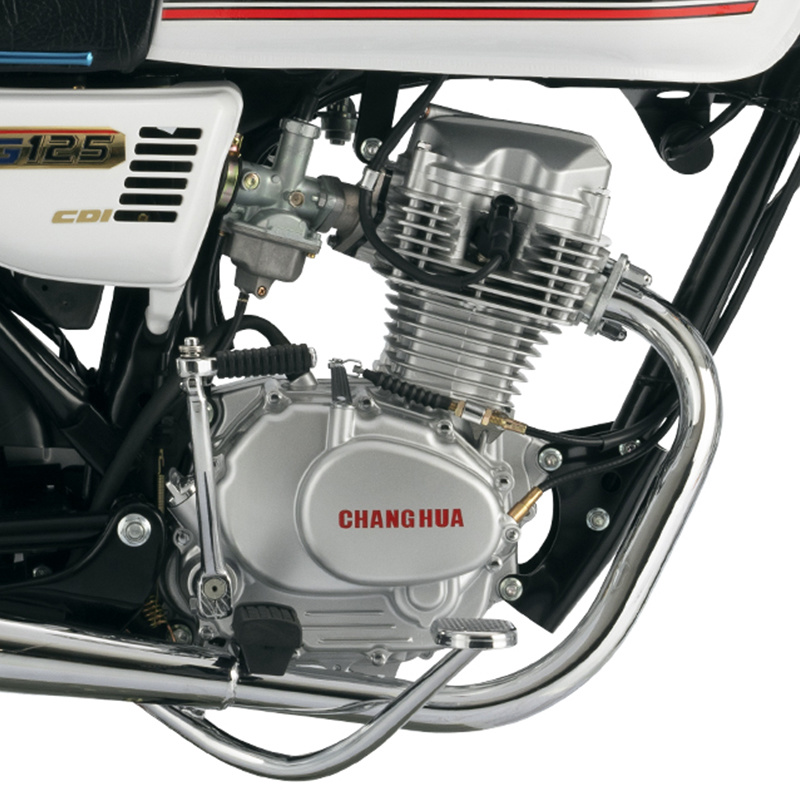

1. The single-cylinder 125CC engine has stronger power, lower fuel consumption and simple maintenance. It has excellent power performance and handling performance.
2. Large-capacity fuel tank, stronger endurance, and long-term efficient operation. High cushioning shock absorber, moderate hardness, improve riding comfort.
3. The seat bag with a moderate height is closer to the natural sitting posture, ensuring that the arms, waist, back and legs are relaxed, and can ensure a good riding experience.

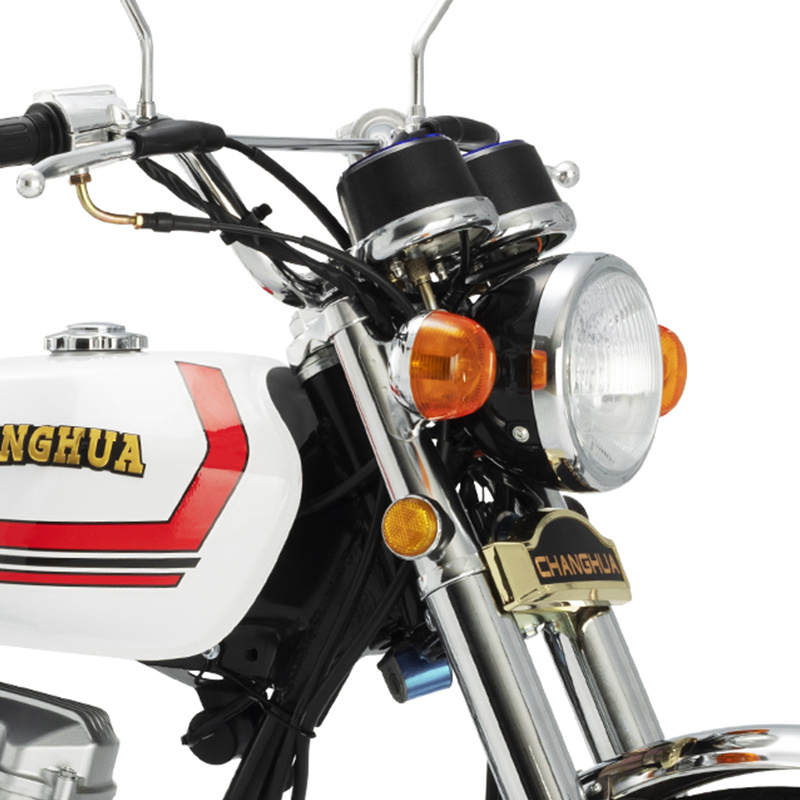

4. The headlights have high brightness, concentrated light sources, and night travel is safer. Display clear square mechanical instrument and square headlights, simple layout.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
