Products
PRESCRIPTION
NTCG engine-CH150-D, CH164FML-D
150CC/200CC single-cylinder, four-stroke, air-cooled, electric/foot-start external balance shaft CG engine. Performance is more superior than ordinary CG engine. The external balance shaft allows the engine to obtain a good balance, reduce engine vibration, and greatly improve the ride comfort of the vehicle. The technology is mature and can be matched with carburetor and electronic injection systems.
Key words:
Classification:
Engine
Hotline:
NTCG engine-CH150-D, CH164FML-D
Graphic Details
Product Parameters
| Product Name | NTCG engine | |||
| Product Model | CH150-D、CH164FML-D | |||
| Color | Silver/Custom | |||
| Gear | Cycle fifth gear/international fifth gear/non-cycle fifth gear/international sixth gear | |||
| Environmental requirements | Euro I/Euro II/EFI Euro IV | |||
| Clutch | Light clutch | |||
| Exhaust mode | Single Row/Double Row | |||
| Optional Displacement | 150cc /200cc | |||
| Engine Displacement Parameters | 150cc | 200cc | ||
| Peak power | 8.2/8500 kW/(r/min) | 10/7500 kW/(r/min) | ||
| Peak torque | 9.5/7500 N•m/(r/min) | 14/5500 N•m/(r/min) | ||

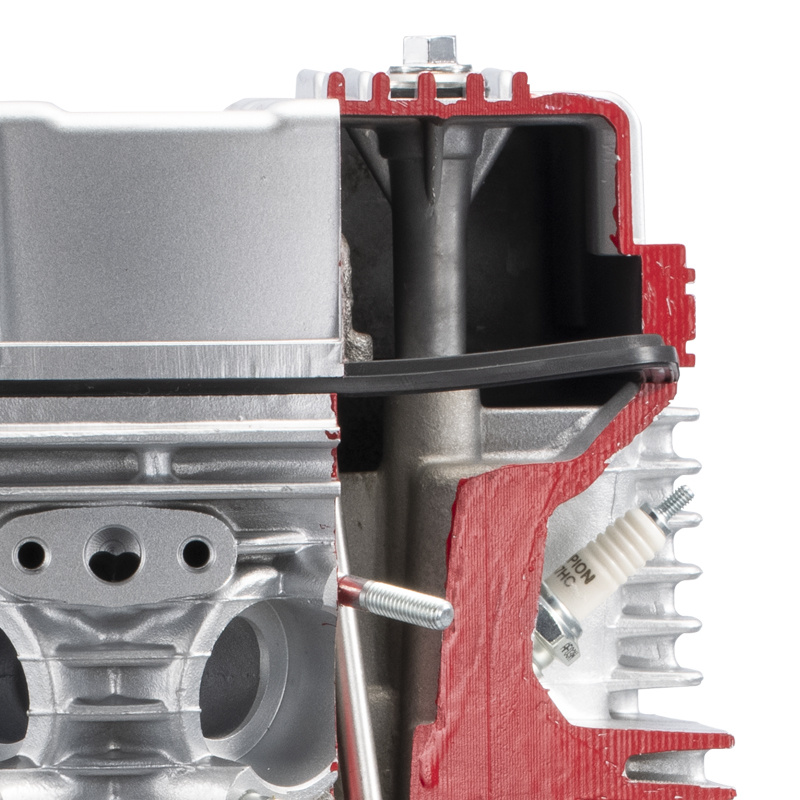

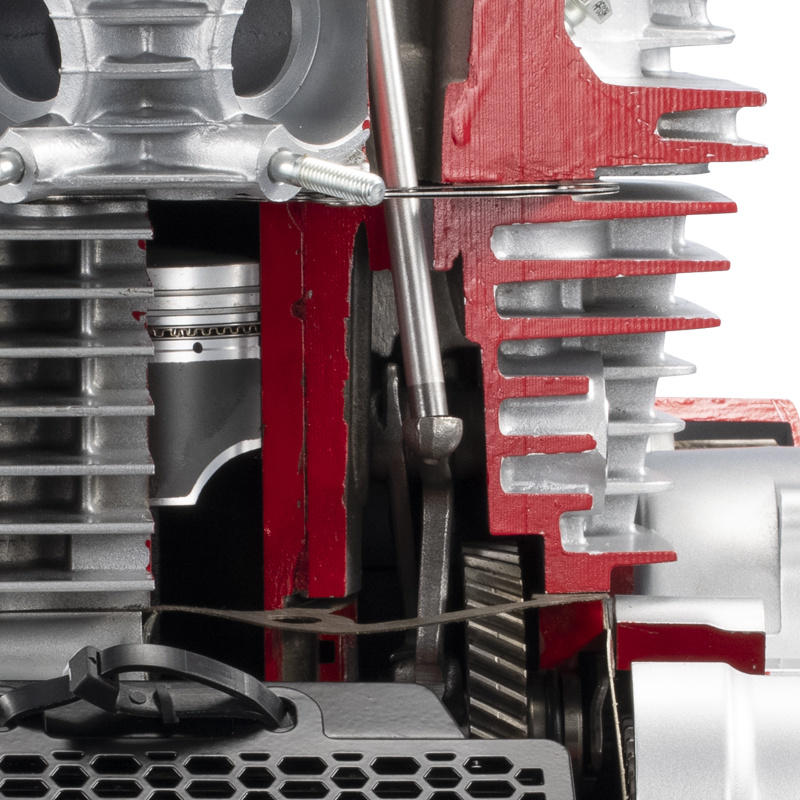

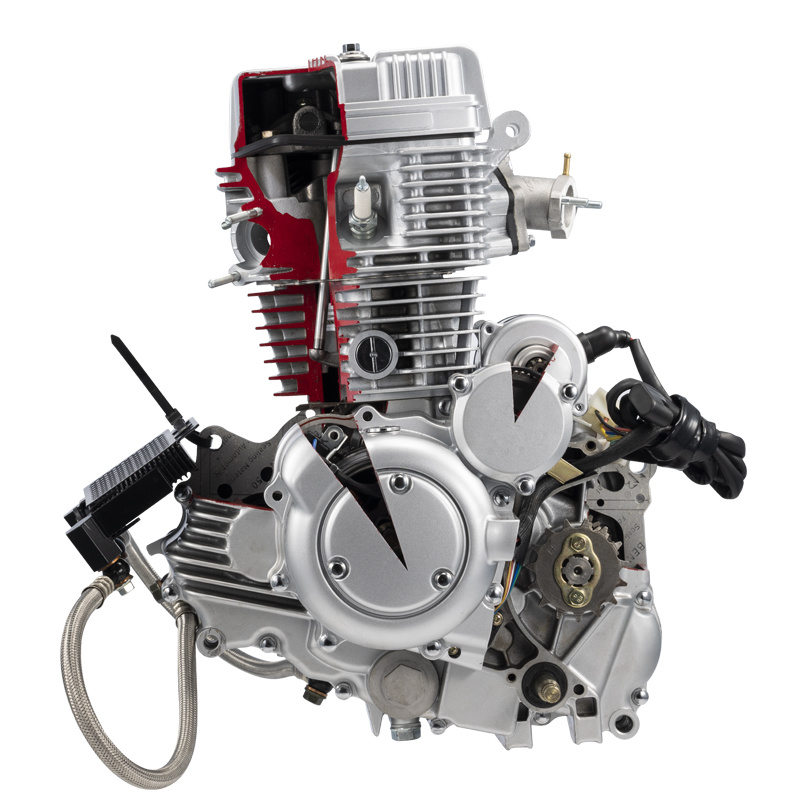

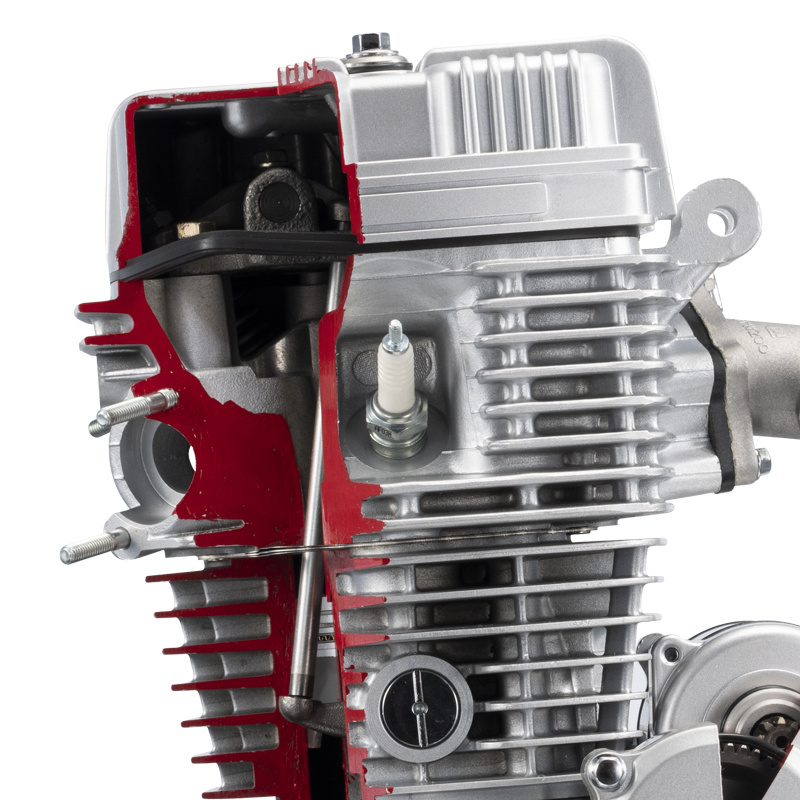

Product display
1. 150CC/200CC single-cylinder, four-stroke, air-cooled, electric/foot-start external balance shaft CG engine. The external balance shaft uses the reverse vibration force generated by the eccentric weight to make the engine obtain a good balance, effectively reduce the vibration of the engine, and improve the ride comfort of the vehicle.
2. Upgrade the intake and exhaust ducts to make the combustion more complete, the explosive power is stronger, and the superior acceleration performance and starting performance are improved.
3. Optimize the exhaust pipe design, the exhaust pipe air pressure is low, which helps to increase engine power, increase power output and improve performance.
4. Adopt lightweight piston design to reduce friction and vibration and improve performance. Even if it runs at high speed for a long time, it can maintain good performance.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
