2015 Brazil Off-Road_CH-051

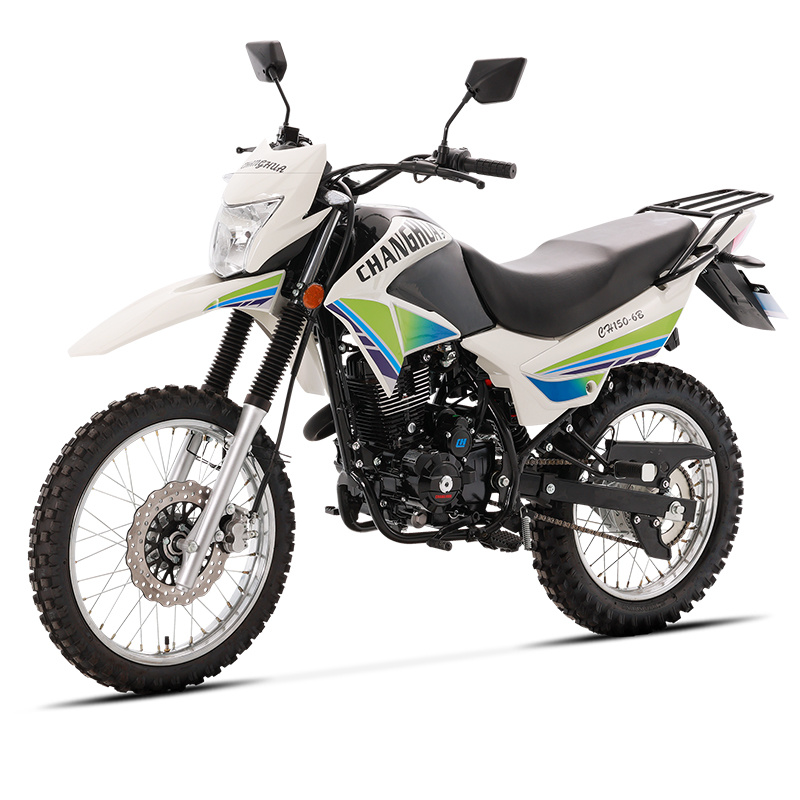

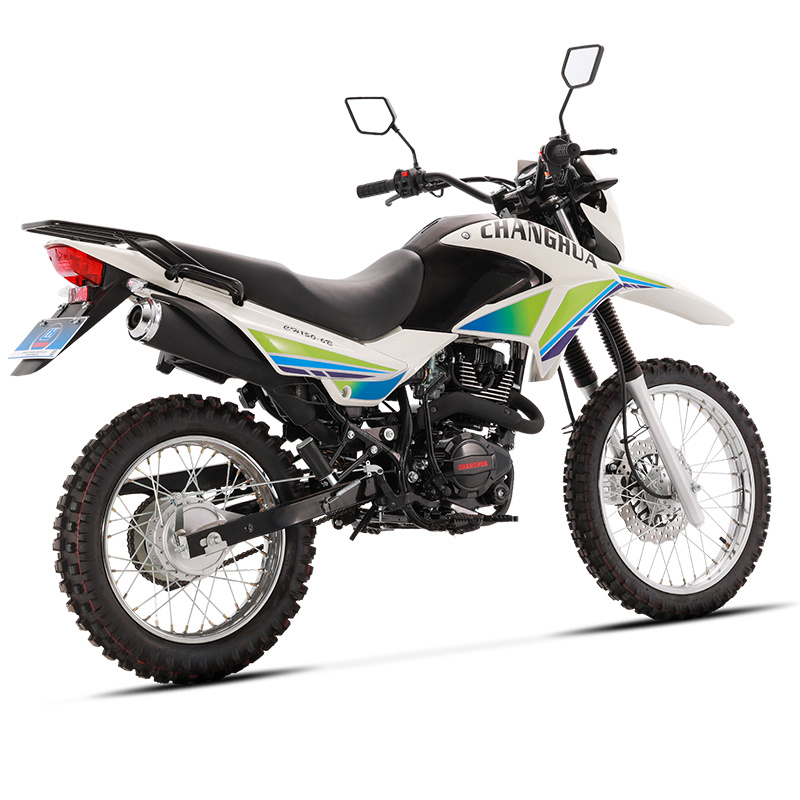

An off-road motorcycle designed for crossing jungle and city roads. Powerful 150CC air-cooled engine with large torque, fast speed and high fuel efficiency. Add a large fuel tank for stronger endurance. High ground clearance and powerful disc brakes can adapt to various complex terrains. The high-position exhaust pipe has better passability and strong wading performance, which is the guarantee of off-road sports.
Key words:
Classification:
Off-road motorcycle
Hotline:
2015 Brazil Off-Road_CH-051
Graphic Details
Product Parameters
| No. | CH-051 | ||||
| Model | CH150-6B | Optional body color | Red/Black/White/Blue/Customized | ||
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body | Length * width * height (mm) | 2010*870*1170 |
| Cylinder diameter x stroke (mm) | 62*49.5 | Seat height (mm) | / | ||
| Displacement (ml) | 150 | Ground clearance (mm) | 280 | ||
| Compression ratio | 9.0:1 | Wheelbase (mm) | 1360 | ||
| Peak power (kw/r/min) | 8.2kw/8500r/Min | curb weight (KG) | 119.5 | ||
| Peak torque (Nm/r/min) | 10N.m/7500r/Min | Fuel tank capacity (L) | 12 | ||
| Start mode | Electric/foot start | Tire specifications | Front 90/90-19, Rear 110/90-17 | ||
| Maximum design speed | ≤85 | Brake type | Front Disc Rear Drum | ||
Product display

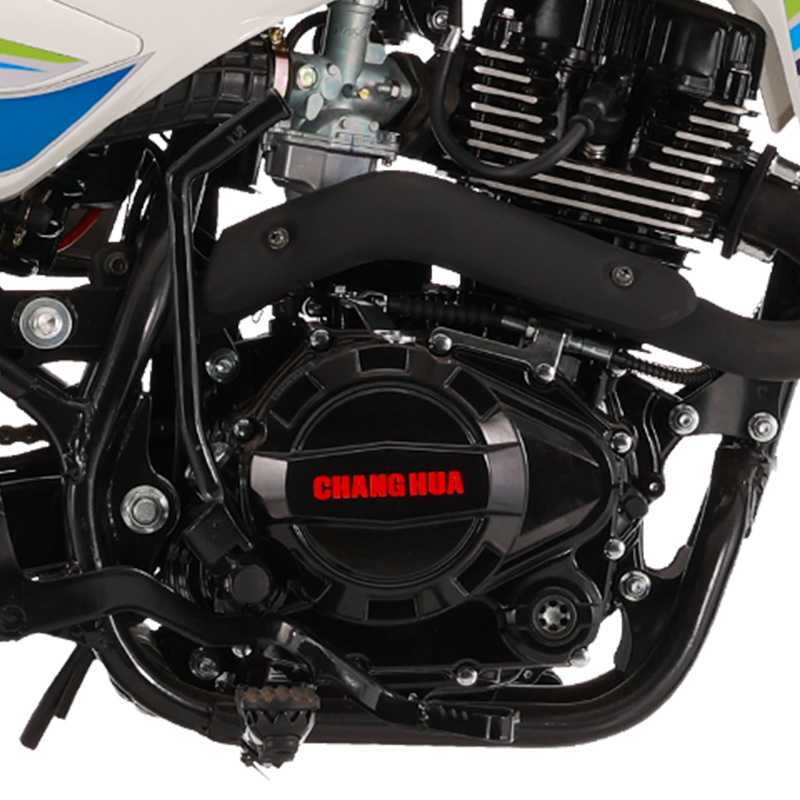

1. The single-cylinder four-stroke, 150CC air-cooled engine provides stable and powerful torque and power, with high fuel efficiency, suitable for various paths and riders.
2. Powerful single disc brake device, providing excellent braking performance. Excellent suspension system reduces vibration and brings a more comfortable driving experience.

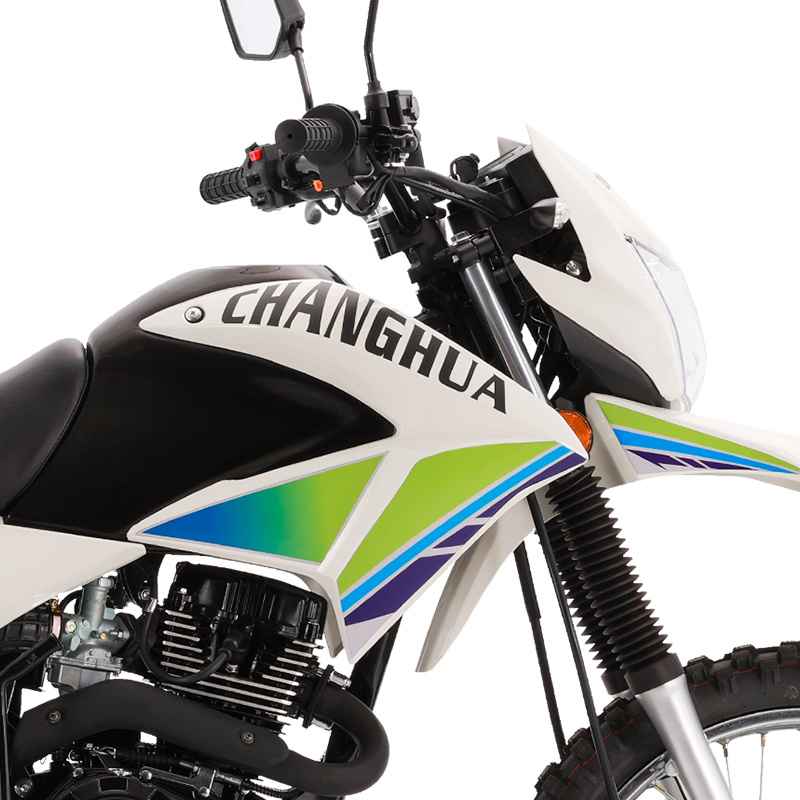

3. The ergonomically designed frame and simple body optimize the riding position, and the control is more flexible, linking the performance potential of the rider and the motorcycle, so that the motorcycle can adapt to various rugged mountain mud roads.
4. The whole vehicle uses high-quality lamps to ensure a clearer driving vision.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
