PRESCRIPTION
CH-007

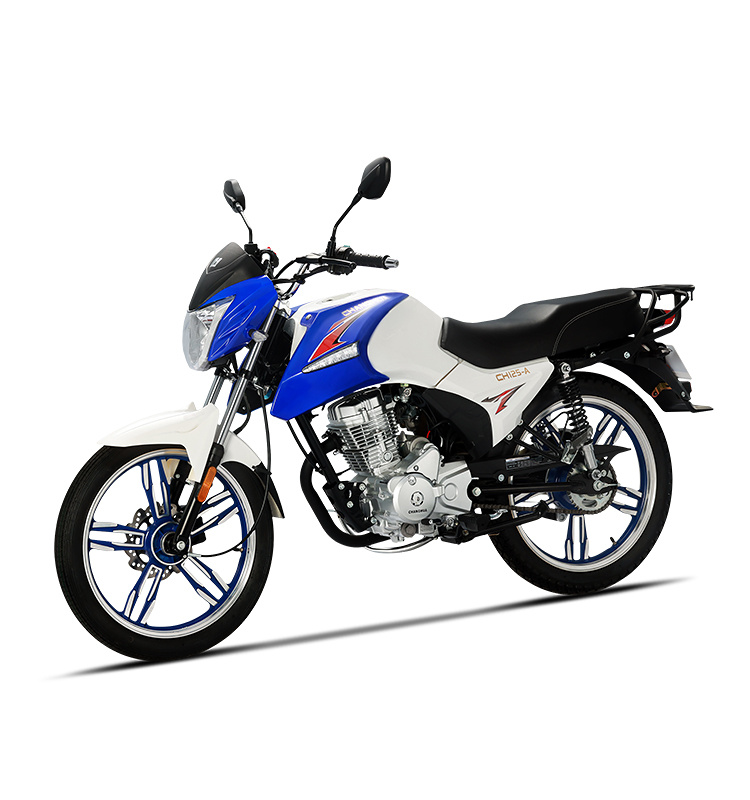

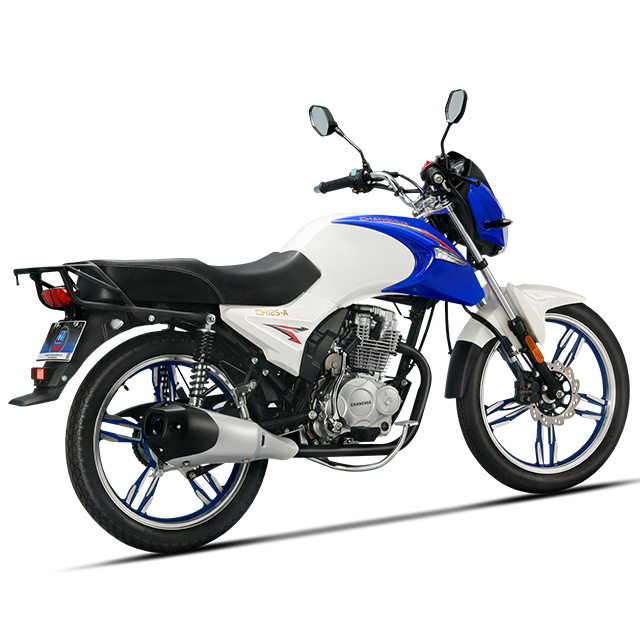

Strong and muscular body design. The headlamp has high brightness and concentrated light source. Simple shape, high definition LED tail light. The single-cylinder 125mm engine has more powerful power, lower fuel consumption, large-capacity fuel tank and longer battery life. High cushioning shock absorber, moderate hardness and softness. The ergonomically designed high-rebound seat package provides a comfortable ride, accurately adjusts the driving posture, and effectively relieves driving fatigue.
Key words:
Classification:
Two-wheeler
Hotline:
CH-007
Graphic Details
Product Parameters
| No. | CH-007 | ||||
| Model | CG(CH125-A) | Color Options | Red/Black/White/Blue | ||
| Motor | Engine type | Single cylinder, four-stroke, natural air-cooled, vertical | of the body Motorcycle |
Length * width * height (mm) | 2020*760*1050 |
| Cylinder diameter x stroke (mm) | 56.5*49.5 | Seat height (mm) | 780 | ||
| Displacement (ml) | 125 | Ground clearance (mm) | 120 | ||
| Compression ratio | 9.0:1 | Wheelbase (mm) | 1250 | ||
| Peak power (kw/r/min) | 7.2kw/8500r/Min | curb weight (KG) | 104 | ||
| Peak torque (Nm/r/min) | 8.5N.m/7500r/Min | Fuel tank capacity (L) | 12 | ||
| Start Mode | Electric/Pedal Start | Tire specifications | Front 2.75-18, rear 3.00-18 | ||
| Maximum design speed | ≤ 85 km/h | Brake type | Front Disc/Rear Drum | ||
Product display
1. The single-cylinder 125 engine has stronger power, lower fuel consumption, simple maintenance, and excellent power performance and handling performance.
2. Large-capacity fuel tank, stronger endurance, long-term and efficient operation. The mechanical instrument has a clear display and a simple layout.
3. The seat bag with a moderate height and a sitting posture closer to the natural state ensures the rider's driving comfort.

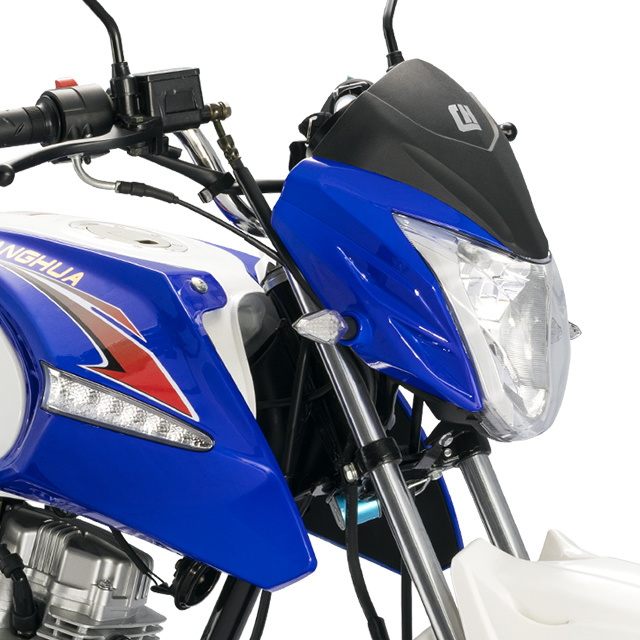

4. The headlights have high brightness and concentrated light sources, making it safer to drive at night. LED taillights are designed to be highly recognizable.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
