CG Series Electric Foot Start Engine-CH125, CH150, CH164FML
125CC/150CC/200CC single-cylinder, four-stroke, air-cooled, electric/foot-start CG engine. DC CDI ignition is used to upgrade the intake and exhaust ducts to make combustion more complete, more powerful, and lower fuel consumption. Selectable gear, simple operation, smooth and easy shifting. The engine performs well at low speeds, with a fast start and superior acceleration performance.
Key words:
Classification:
Engine
Hotline:
CG Series Electric Foot Start Engine-CH125, CH150, CH164FML
Graphic Details
Product Parameters
| Product Name | CG Series Electric Foot Start Engine | ||||
| Product Model | CH125、CH150、CH164FML | ||||
| Color | Silver/Custom | ||||
| Gear | Cycle fourth gear/non-cycle fourth gear/international fifth gear/non-cycle fifth gear | ||||
| Environmental requirements | Euro I/Euro II/EFI Euro IV | ||||
| Clutch | Light clutch or ordinary clutch | ||||
| Optional Displacement | 125cc /150cc/200cc | ||||
| Engine Displacement Parameters | 125cc | 150cc | 200CC | ||
| Peak power | 7.5/8500 kW/(r/min) | 8.5/8500 kW/(r/min) | 10.8/7500 kW/(r/min) | ||
| Peak torque | 9/7500 N•m/(r/min) | 10/7500 N•m/(r/min) | 17/5500 N•m/(r/min) | ||
Product display
1. 125CC/150CC/200CC electric/foot start engine, stronger power, lower fuel consumption, low maintenance cost.

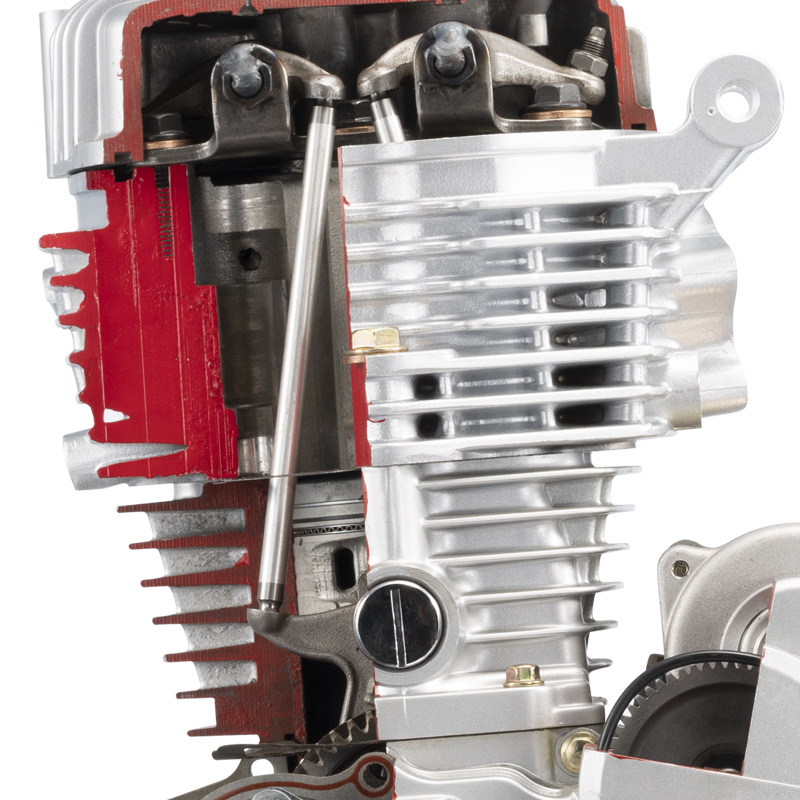

2. Adopt lightweight piston design to reduce friction and vibration and improve performance. Upgrade the intake and exhaust ducts to make the combustion more complete, the explosive force is stronger, and the superior acceleration performance and starting performance are improved.

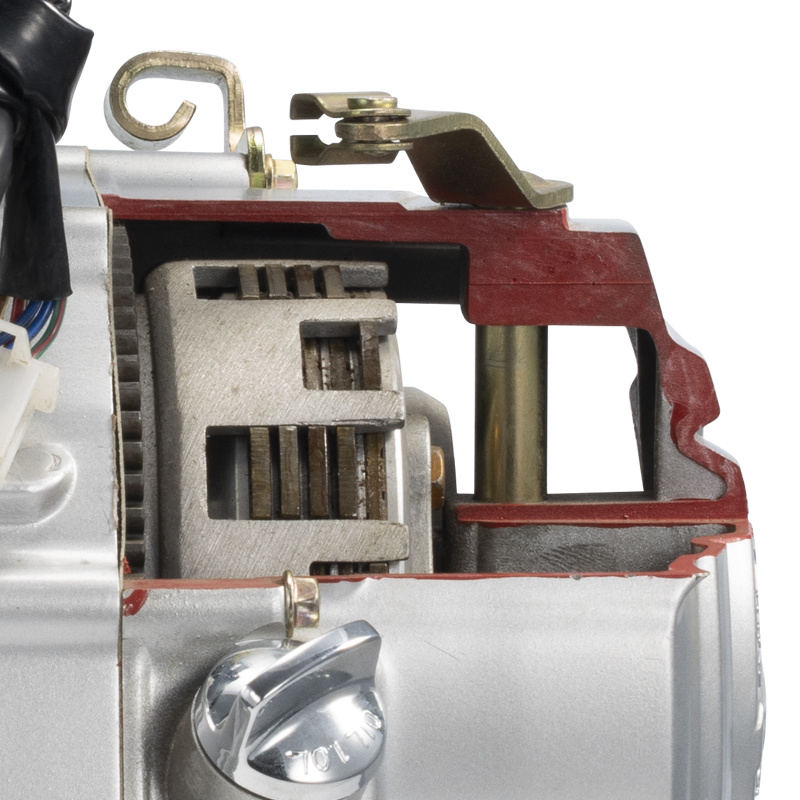

3. The durable clutch assembly ensures that the motorcycle can start and run smoothly, meet the requirements of shifting, cut off the power supply, and facilitate braking.
4. The heat dissipation area is larger to ensure that the engine has continuous strong power and can maintain good performance even if it runs at high speed for a long time.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
