PRESCRIPTION

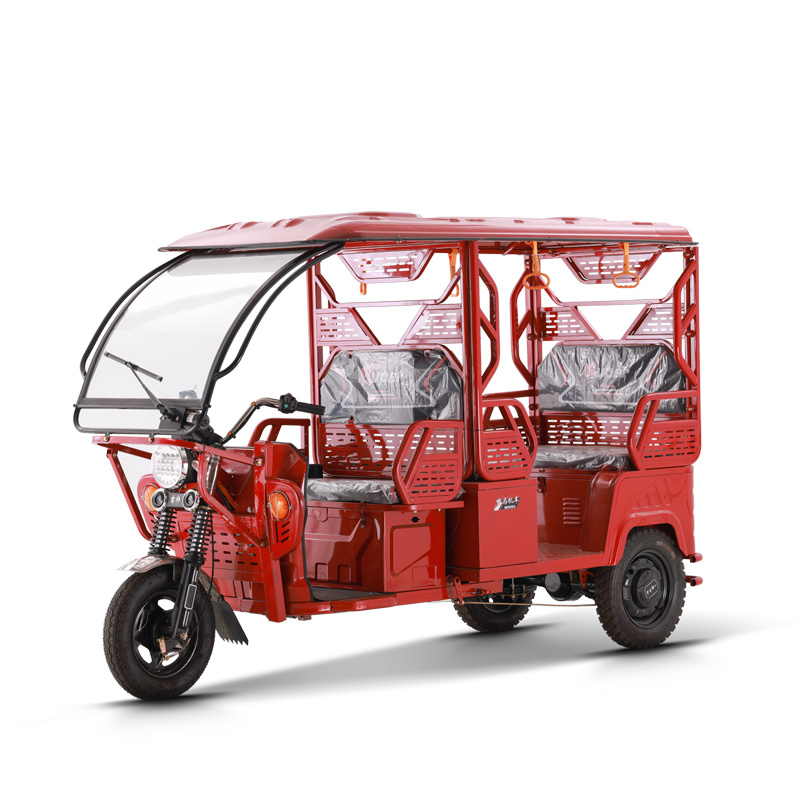

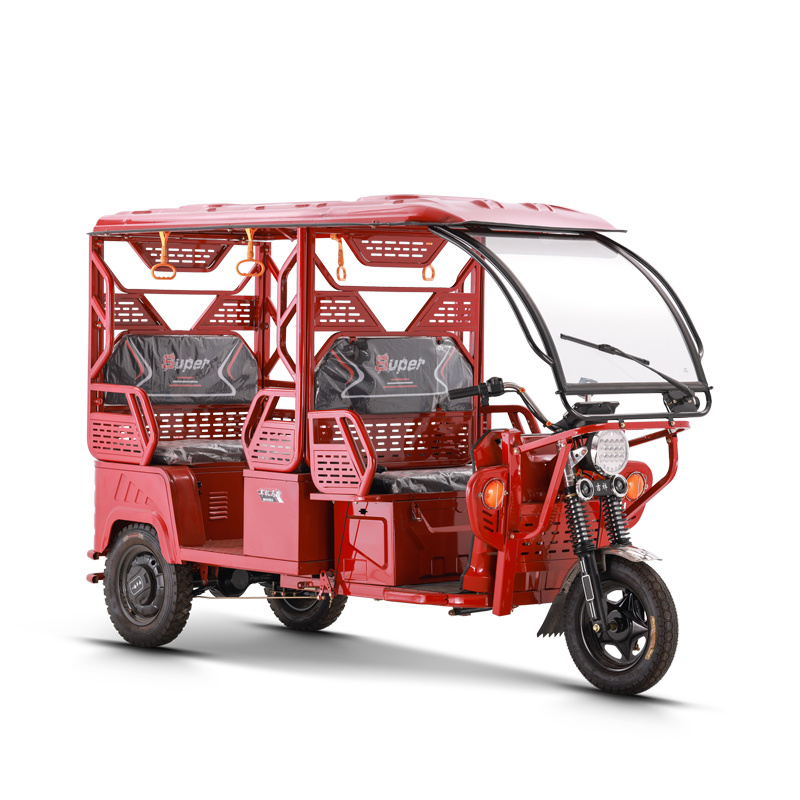

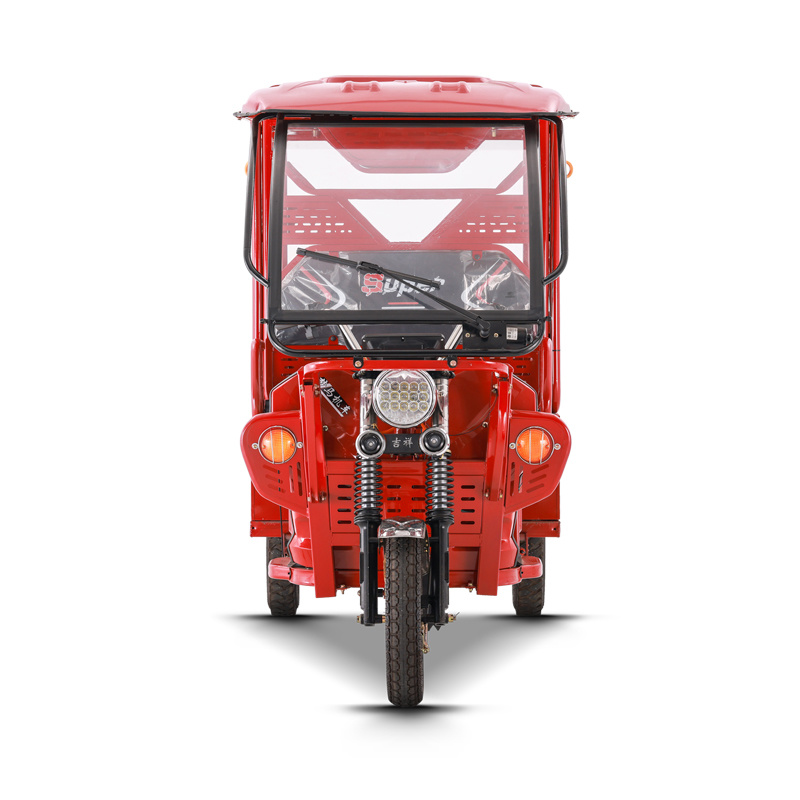

CH-K009
Passenger-carrying four-seater electric tricycle with integrated stamped canopy, strong and durable. The stylish design not only enhances aerodynamic performance, but also provides ample seating, making it ideal for families, small groups or shared commuting. Equipped with a 1800W70H permanent magnet motor, it can continuously output strong power. 160mm drum brake integrated gear shifting, smoother transmission. Equipped with an LCD instrument panel to promptly convey the riding status of the tricycle. LED headlights, concentrated light, safer driving at night. With mobile phone charging function and Bluetooth speakers, experience the fun of travel.
Key words:
Classification:
E-motorcycle
Hotline:
CH-K009
Graphic Details
Product Parameters
| Model | CH-K009 | ||||
| Basic configuration | Vehicle size(mm) | 3000*100*2000 | Power system | Motor | 1800W70H permanent magnet motor |
| Passenger Seats | Four seats | Controller | 24 Mousse tube | ||
| Seat height(mm) | 750 | Maximum speed(KM/H) | 40-52(Optional) | ||
| Ground clearance(mm) | 220 | Maximum torque | / | ||
| Track width(mm) | 930 | Start mode | Electronic control | ||
| Curb weight(KG) | 240（No battery included） | Storage battery | 72V68A | ||
| Load capacity mass(KG) | 350 | Mileage driven | Reference battery data | ||
| Tire Size | Front 3.75-12/Rear 4.00-12 | Other Configuration | Phone charging | Yes | |
| Braking method | Front drum/Rear drum | Bluetooth audio | Yes | ||
| Rear axle | 160mm brake hub | Fringe curtain | Whole | ||
| Front suspension | 43mm External spring damping | Alternator | Selective assembly | ||
| Rear suspension | Five spring plates | Packaging method | CKD | ||
| Instrument | LCD instrument | Windshield wiper | Electric wipers | ||
| Headlamps | LED | ||||
Product display
1. Equipped with an efficient 1800W70H permanent magnet motor, it accelerates faster and can maintain strong kinetic energy during long-term operation.
2. The front and rear wheels use 12-inch deep-tooth tires, which show excellent load-bearing capacity, improve the grip performance of the tricycle, and ensure driving safety.
3. The rear axle adopts a 160mm drum brake integrated shifting system to provide reliable braking force and achieve rapid stopping and starting maneuverability. It runs more smoothly and quietly, and can provide excellent stability and comfort even on uneven roads.
4. Equipped with an LCD instrument panel, clear visual effects and diversified functions. Using high-quality LED headlights, the light source is concentrated, making driving safer at night. With mobile phone charging function and Bluetooth speakers, it improves the riding experience and fun.
