PRESCRIPTION
CH-K018

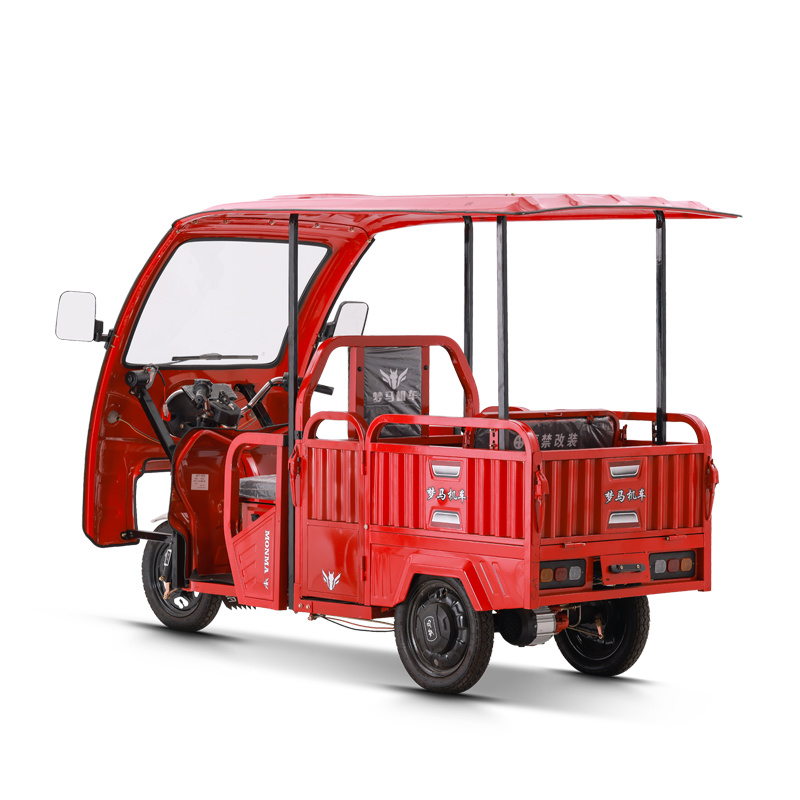

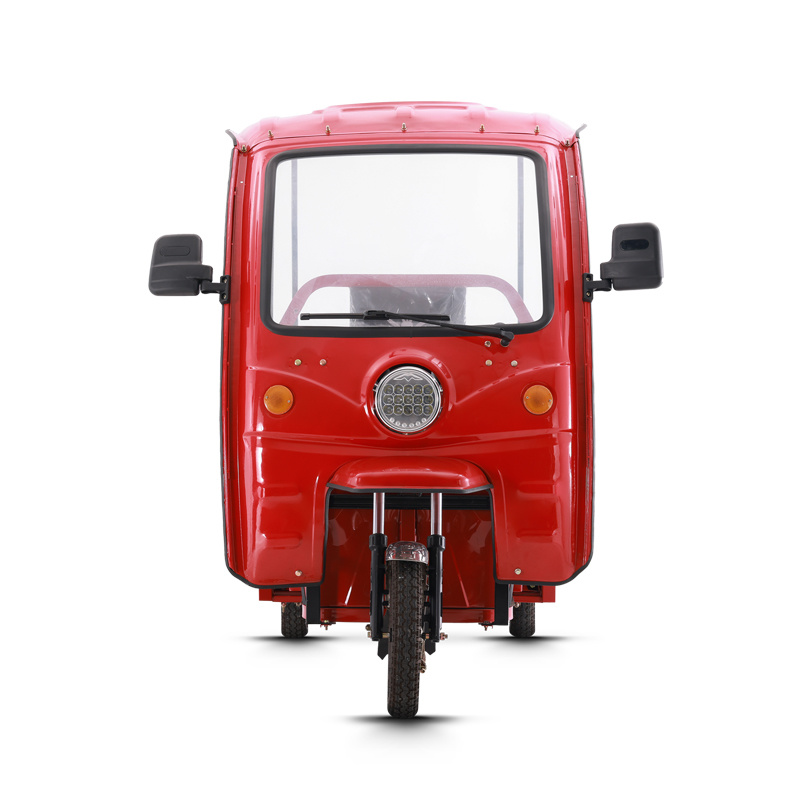

Passenger-carrying electric tricycle, with integrated stamped canopy, strong and durable. 1200*900mm cargo box size, larger rear space, providing a more comfortable riding experience. Equipped with 1200W50H permanent magnet motor, it can continuously output strong power. 160mm drum brake integrated gear shifting, more stable transmission. Equipped with LCD instrument panel, timely convey the riding status of the tricycle. LED headlights, concentrated light, safer driving at night.
Key words:
Classification:
E-motorcycle
Hotline:
CH-K018
Graphic Details
Product Parameters
| Number | CH-K018 | ||||
| Model | CH-K018 | ||||
| Basic configuration | Vehicle size(mm) | 2660*1070*1700 | Power system | Motor | 1200W50H permanent magnet motor |
| Container size (mm) | 1200*900 | Controller | 18 Mousse tube | ||
| Seat height(mm) | 700 | Maximum speed(KM/H) | 40-52(Optional) | ||
| Ground clearance(mm) | 220 | Start mode | Electronic control | ||
| Track width(mm) | 740 | Storage battery | 60V32A | ||
| Curb weight(KG) | 180 | Mileage driven | Reference battery data | ||
| Load capacity mass(KG) | 200 | Other Configuration | Phone charging | No | |
| Tire Size | Front 3.00-12/Rear 3.00-12 | Bluetooth audio | No | ||
| Braking method | Front drum/Rear drum | Fringe curtain | Whole | ||
| Rear axle | 160mm brake hub | Alternator | No | ||
| Front suspension | 31mm External spring damping | Packaging method | CKD | ||
| Rear suspension | Five-leaf spring plate non-load bearing | Windshield wiper | Electric wipers | ||
| Instrument | LCD instrument | ||||
| Headlamps | LED | ||||
Product display
1. 1500W60H permanent magnet motor, a spacious and sturdy carriage, and can carry 300KG of cargo.
2. The front and rear wheels use 12-inch deep-tooth tires, which show excellent load-bearing capacity, improve the grip performance of the tricycle, and ensure driving safety.
3. The rear axle adopts a 160mm drum brake integrated shifting system to provide reliable braking force, and the operation is quieter and more efficient. The front suspension 43mm thickened external spring shock absorber enables the tricycle to provide excellent stability and comfort even on uneven roads.
4. Equipped with an LCD instrument panel, clear visual effects and diversified functions. Use high-quality LED headlights, concentrated light source, and longer illumination distance. It is safer to drive at night.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
Previous Page
CH-K017
Next Page
CH-K018
Passenger-carrying electric tricycle, with integrated stamped canopy, strong and durable. 1200*900mm cargo box size, larger rear space, providing a more comfortable riding experience. Equipped with 1200W50H permanent magnet motor, it can continuously output strong power. 160mm drum brake integrated gear shifting, more stable transmission. Equipped with LCD instrument panel, timely convey the riding status of the tricycle. LED headlights, concentrated light, safer driving at night.
Key words:
Classification:
Product accessories:
Hotline:
Product Details
Product Parameters
| Number | CH-K018 | ||||
| Model | CH-K018 | ||||
| Basic configuration | Vehicle size(mm) | 2660*1070*1700 | Power system | Motor | 1200W50H permanent magnet motor |
| Container size (mm) | 1200*900 | Controller | 18 Mousse tube | ||
| Seat height(mm) | 700 | Maximum speed(KM/H) | 40-52(Optional) | ||
| Ground clearance(mm) | 220 | Start mode | Electronic control | ||
| Track width(mm) | 740 | Storage battery | 60V32A | ||
| Curb weight(KG) | 180 | Mileage driven | Reference battery data | ||
| Load capacity mass(KG) | 200 | Other Configuration | Phone charging | No | |
| Tire Size | Front 3.00-12/Rear 3.00-12 | Bluetooth audio | No | ||
| Braking method | Front drum/Rear drum | Fringe curtain | Whole | ||
| Rear axle | 160mm brake hub | Alternator | No | ||
| Front suspension | 31mm External spring damping | Packaging method | CKD | ||
| Rear suspension | Five-leaf spring plate non-load bearing | Windshield wiper | Electric wipers | ||
| Instrument | LCD instrument | ||||
| Headlamps | LED | ||||
Product display
1. 1500W60H permanent magnet motor, a spacious and sturdy carriage, and can carry 300KG of cargo.
2. The front and rear wheels use 12-inch deep-tooth tires, which show excellent load-bearing capacity, improve the grip performance of the tricycle, and ensure driving safety.
3. The rear axle adopts a 160mm drum brake integrated shifting system to provide reliable braking force, and the operation is quieter and more efficient. The front suspension 43mm thickened external spring shock absorber enables the tricycle to provide excellent stability and comfort even on uneven roads.
4. Equipped with an LCD instrument panel, clear visual effects and diversified functions. Use high-quality LED headlights, concentrated light source, and longer illumination distance. It is safer to drive at night.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
