PRESCRIPTION

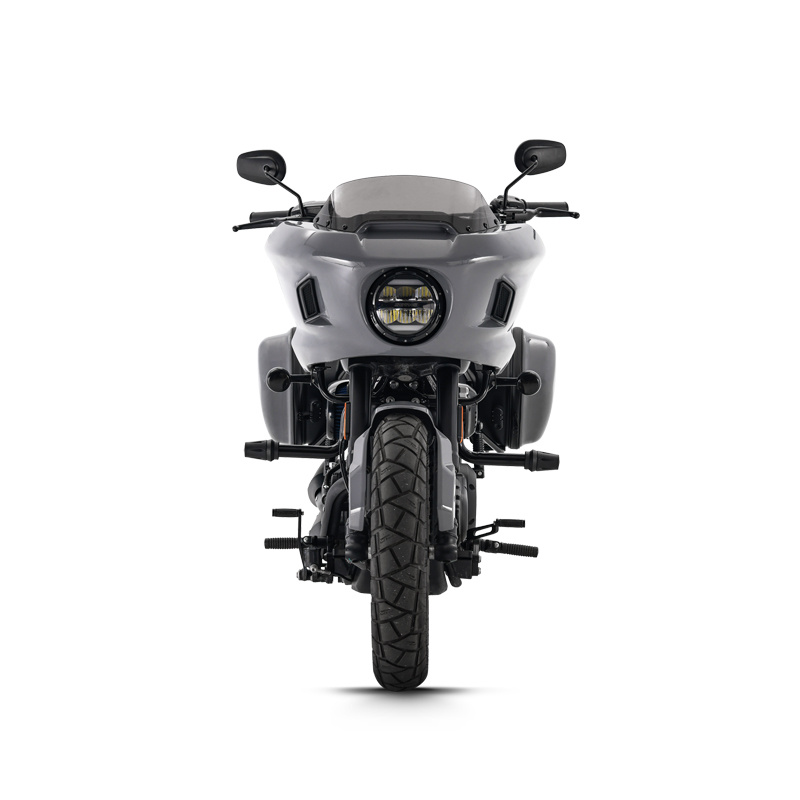

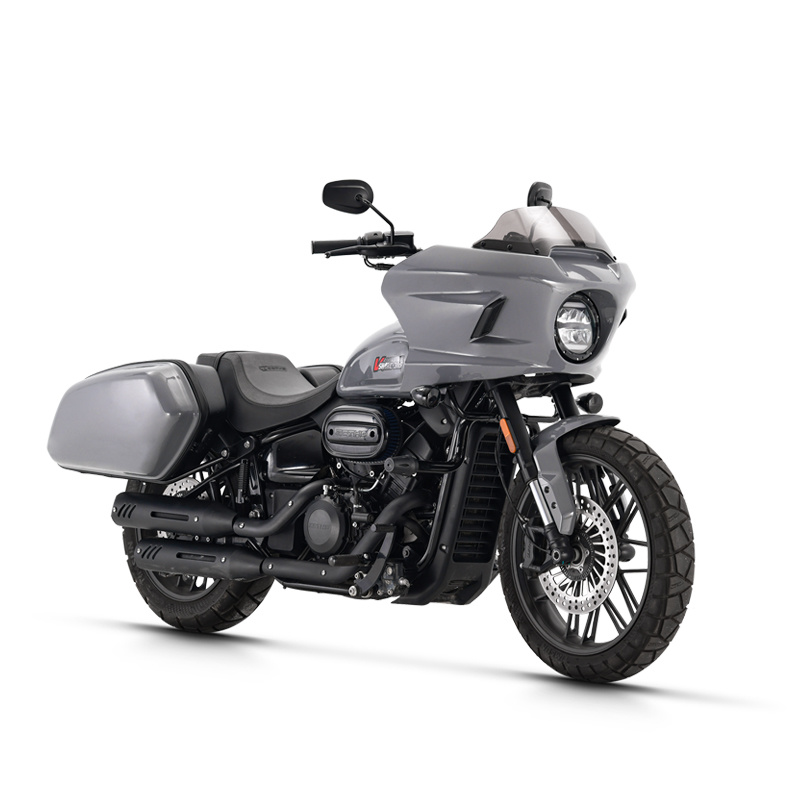

VINCENT 316-2
The phenomenal cruise motorcycle breaks through the traditional design, integrates Harley elements into the shape, and the headlights are surrounded by an integrated air deflector and matched with left and right side boxes. Equipped with a water-cooled V-type two-cylinder engine, it has stronger power and can run efficiently for a long time. The double exhaust pipe is equipped with an anti-ironing board design, which brings more vigorous sound waves. The front and rear single disc brake ABS braking system makes riding safer and more stable. Add a large 14L fuel tank, more endurance, able to travel long distances.
Key words:
Classification:
Two-wheeler
Riding bike
Hotline:
VINCENT 316-2
Graphic Details
Product Parameters
| No. | VINCENT316-2 | ||||
| Model | Vincent | ||||
| Engine | Engine type | Two-cylinder, four-stroke, water-cooled, V-cylinder | Body | Frame type | cradle frame |
| Cylinder diameter × stroke (mm) | 60*56 | Length * width * height (mm) | 2250*862*1175 | ||
| Displacement (ml) | 316 | Seat height (mm) | 675 | ||
| Compression ratio | 11.5:1 | Ground clearance (mm) | 155 | ||
| Peak power (kw/r/min) | 22.5/8500 | Wheelbase (mm) | 1555 | ||
| Peak torque (Nm/r/min) | 25.3/6500 | No-load mass (KG) | 211 | ||
| Oil supply mode | EFI | Fuel tank capacity (L) | 14 | ||
| Fuel consumption | 3L/100km | Appearance color selection | Gray, black | ||
| Maximum design speed | ≤ 135(km/h) | Wheels and tires | Front brake system | 300mm Single Disc Four Piston Radial Caliper | |
| Manipulation | Start mode | Electric start | Rear Brake System | 260mm Single Disc Double Piston Caliper | |
| Clutch form | wet multi-plate sliding clutch | Tire specifications | Front: 120/70-19, Rear: 150/70-17 | ||
| Gearbox form | International 6 | Brake type | Front disc/rear disc | ||
| ABS device | Yes | ||||
Product display
1. "V" type two-cylinder four-stroke. 316CC water-cooled engine, maximum power 22.5kW/8500rpm, maximum torque 25.3N.m/6500pm, outstanding power performance. With a large 14L fuel tank, it can run efficiently for a long time and is the best partner for long-distance travel.
2. The front and rear large single disc brakes are matched with a dual-channel ABS braking system, which greatly improves the braking ability of the motorcycle and ensures the safety of the rider.
3. Inverted front shock absorption and pre-pressure adjustable rear shock absorption system can adapt to bumpy roads, improve motorcycle handling performance, and make the riding experience more comfortable.
4. Equipped with TFT color display, bringing diversified functions and clear visual effects. The integrated front panel shroud is designed with vents for a tougher shape.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
Research and Development Department:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
