PRESCRIPTION
CH-P011

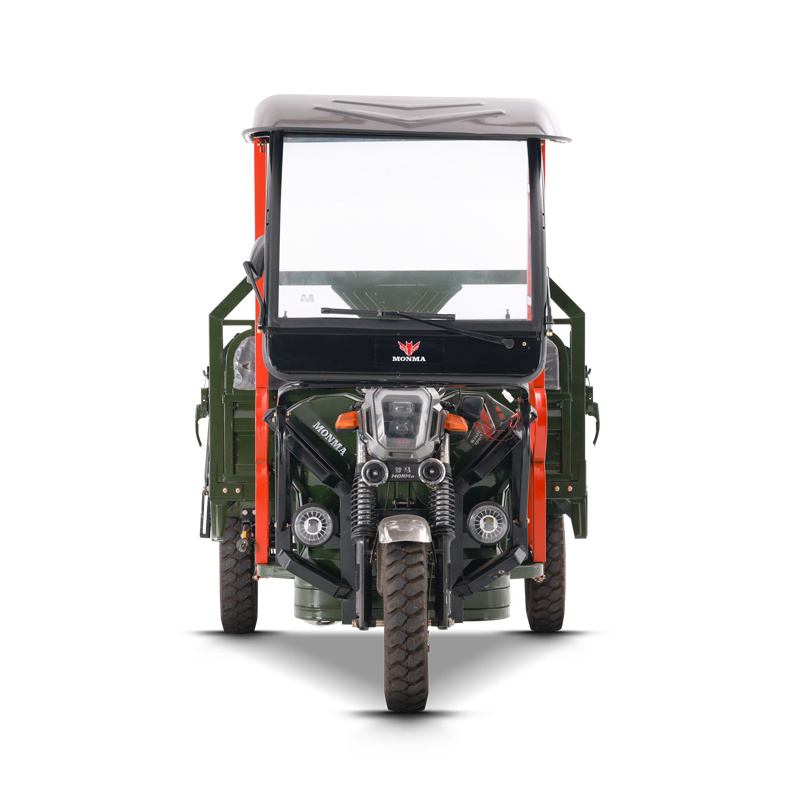

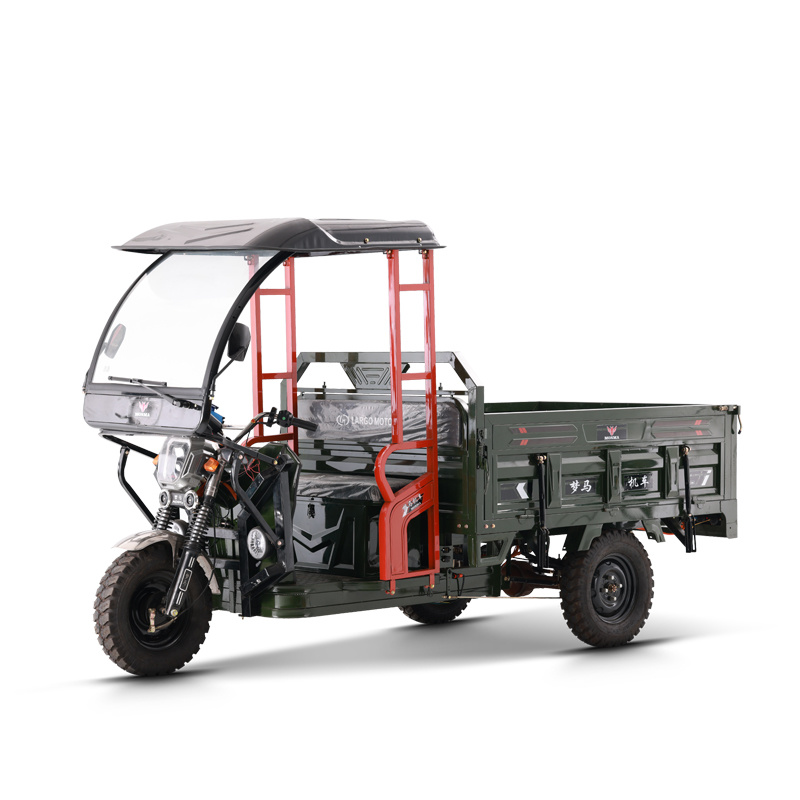

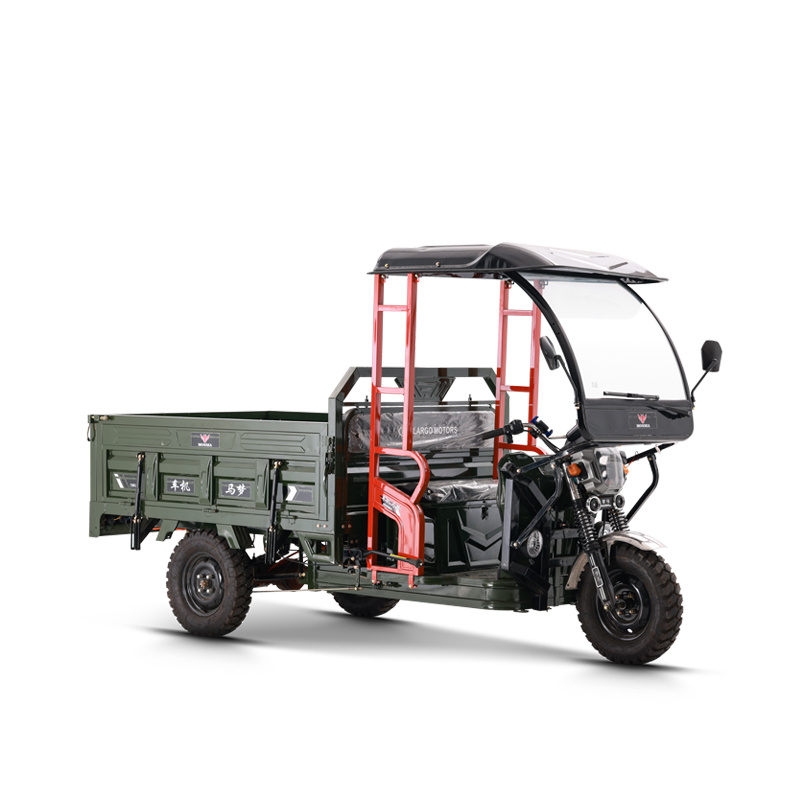

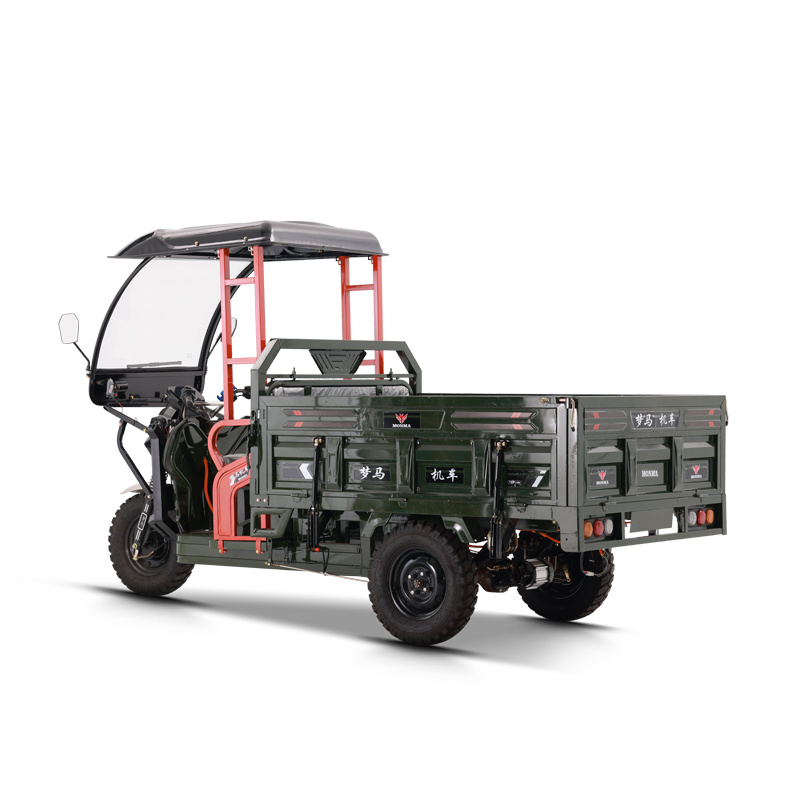

The cargo-carrying electric tricycle is equipped with a 1800*1300mm large cargo compartment and an integrated stamped compartment, making the body structure more stable. Equipped with a 1800W70H permanent magnet motor, it can continuously output strong power. The 160mm drum brake integrated gear shifting makes the transmission more stable. Equipped with an LCD instrument panel to promptly convey the riding status of the tricycle. The LED headlights, with concentrated light, make driving safer at night. With mobile phone charging function and Bluetooth speakers, you can experience the fun of traveling.
Key words:
Classification:
E-motorcycle
Hotline:
CH-P011
Graphic Details
Product Parameters
| Model | CH-P011 | ||||
| Basic configuration | Vehicle size(mm) | 3300*1300*750 | Power system | Motor | 1800W70H permanent magnet motor |
| Container size（mm） | 1800*1300 | Controller | 24 Mousse tube | ||
| Seat height(mm) | 700 | Maximum speed(KM/H) | 40-52(Optional) | ||
| Ground clearance(mm) | 220 | Maximum torque | / | ||
| Track width(mm) | 1160 | Start mode | Electronic control | ||
| Load capacity mass(KG) | 320 | Storage battery | 72V68A | ||
| Tire Size | Front 5.00-12/Rear 5.00-12 | Mileage driven | Reference battery data | ||
| Braking method | Front drum/Rear drum | Other Configuration | Phone charging | Yes | |
| Rear axle | 160mm brake hub | Bluetooth audio | Yes | ||
| Front suspension | 43mm External spring damping | Fringe curtain | No | ||
| Rear suspension | Double steel plate structure, six spring plates non-load bearing | Alternator | No | ||
| Instrument | LCD instrument | Packaging method | CKD | ||
| Headlamps | LED | Windshield wiper | Electric wipers | ||
Product display
1. The cargo tricycle combines durability, practicality and versatility. It is equipped with a powerful 1800W70H permanent magnet motor, a spacious and sturdy high guardrail compartment, a larger load-bearing space, and can carry up to 320KG of cargo.
2. The front and rear wheels use 5.00-12 wide tires to improve the grip performance of the tricycle and ensure driving safety.
3. The rear axle uses a 160mm drum brake integrated shifting system to provide reliable braking force, and the operation is quieter and more efficient. The front suspension 43mm thickened external spring shock absorber enables the tricycle to provide excellent stability and comfort even on uneven roads.
4. Equipped with an LCD instrument panel, clear visual effects and diversified functions. Using high-brightness headlights, driving at night is safer and the field of vision is wider. With mobile phone charging function and Bluetooth speakers, it improves the riding experience and fun.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
