PRESCRIPTION
Moxia CH200-47F
Stylish and simple street sports style, smooth body line design, avant-garde LED headlights, let you become the focus of the street. Body can be customized LOGO, color and decals. The 200CC external balance shaft air-cooled engine has stronger explosive power and greater torque, making it easy to enjoy riding. Front and rear disc brake system, excellent braking performance, provide driving safety.
Key words:
Classification:
Two-wheeler
Riding bike
Hotline:
Moxia CH200-47F
Graphic Details
Product Parameters
| No. | CH200-47F | ||||
| Model | Moxia | Body optional color | Red/Black/White/Blue | ||
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body | Length * width * height (mm) | 1870x760x1140 |
| Cylinder diameter x stroke (mm) | 63.5 × 62.2 | Seat height (mm) | / | ||
| Displacement (ml) | 197 | Ground clearance (mm) | 190 | ||
| Compression ratio | 8.9:1 | Wheelbase (mm) | 1370 | ||
| Peak power (kw/r/min) | 9.6/7500 | curb weight (KG) | 126 | ||
| Peak torque (Nm/r/min) | 13.5/5500 | Fuel tank capacity (L) | 15 | ||
| Start mode | Electric/foot start | Tire specifications | Front 100/70-17, rear 130/70-17 | ||
| Maximum design speed | ≤ 110 km/h | Brake type | Front Disc Rear Disc | ||
Product display

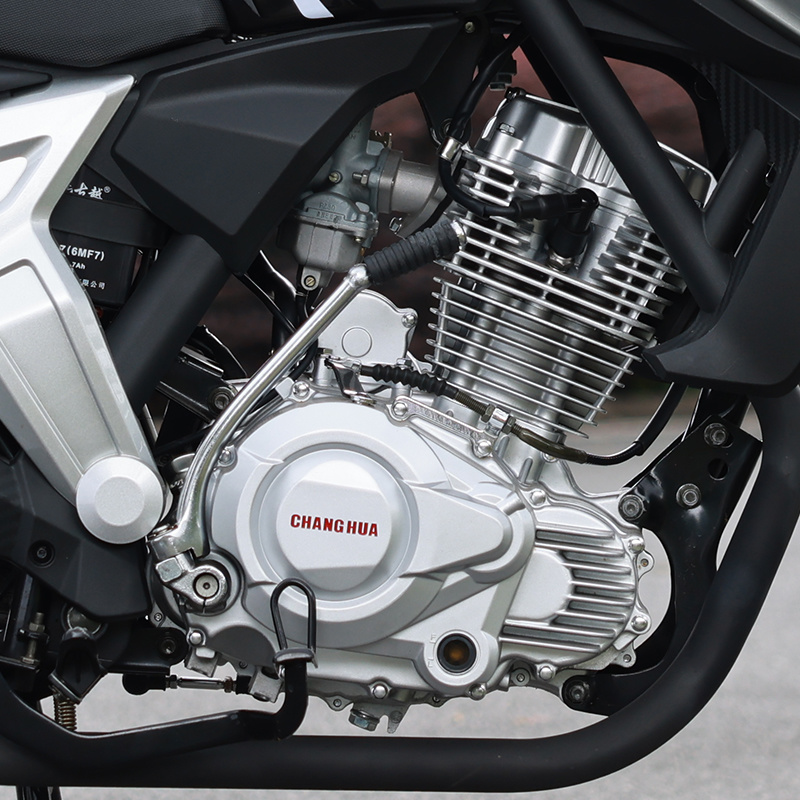

1. Single-cylinder four-stroke, 200CC external balance shaft air-cooled engine, strong power and fast speed. The engine runs more smoothly than ordinary CG engines and has less vibration, which greatly improves the overall stability of the motorcycle.

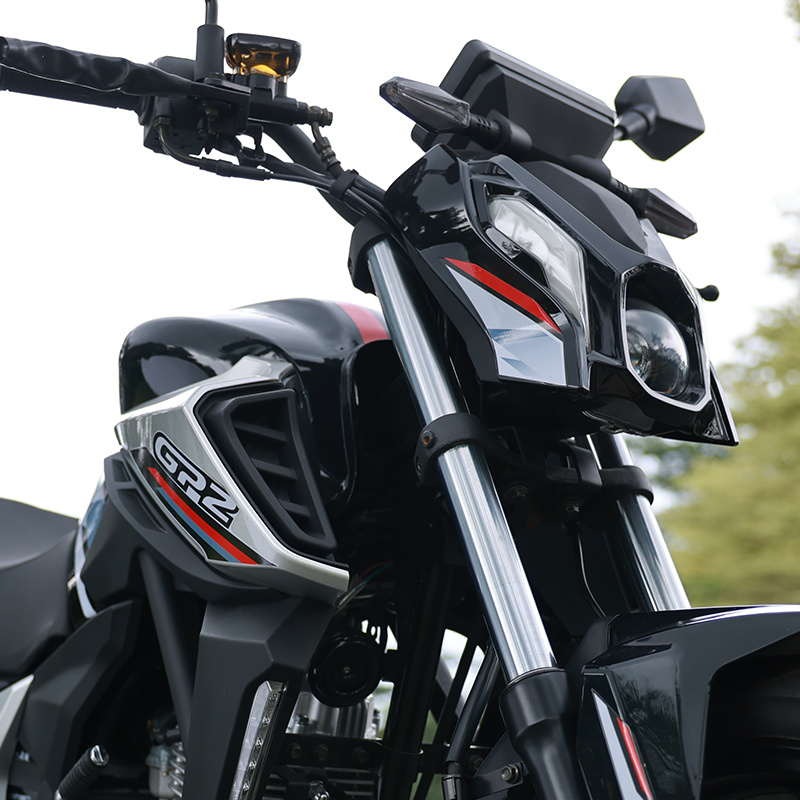

2. The avant-garde LED headlights have concentrated light sources and a wider lighting range, which improves driving safety at night.
3. Thick front shock absorption and central rear shock absorption to provide a more comfortable driving experience and improve motorcycle handling.
4. Sports unilateral double-hole exhaust pipe brings more vigorous sound waves. The front and rear single disc brakes have superior braking performance to ensure the safety of the rider.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
Research and Development Department:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
