Products
PRESCRIPTION

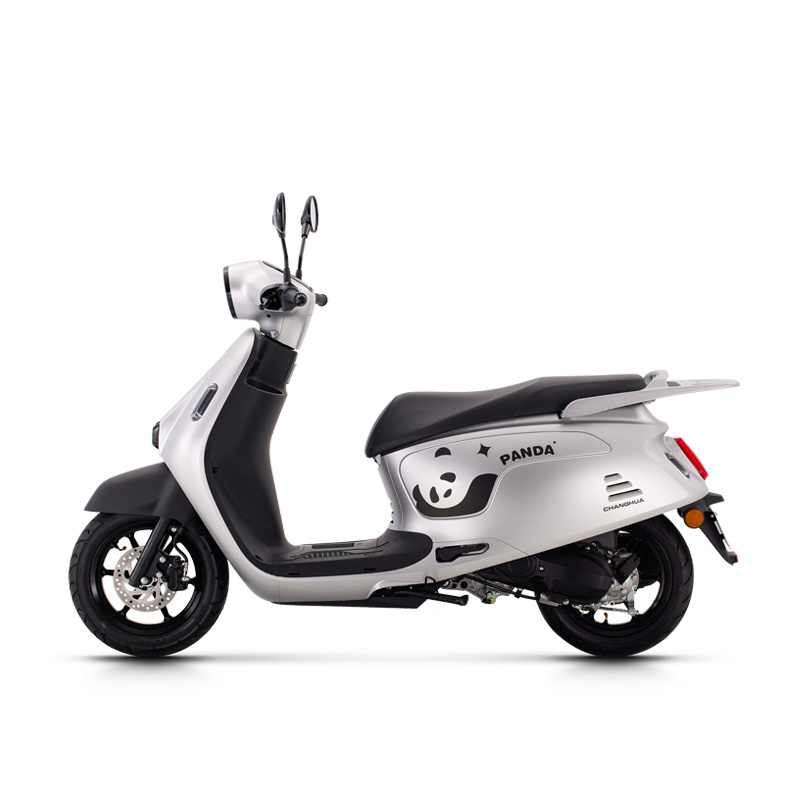

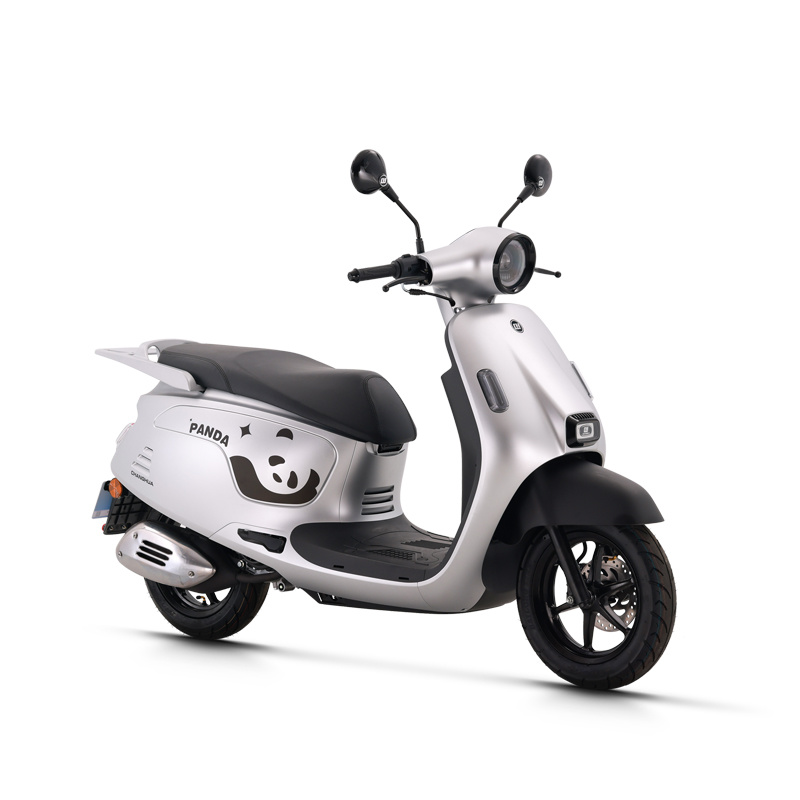

CH125T-HY
Smooth body lines, outlining an elegant silhouette. It combines retro appearance with modern technology. It is equipped with powerful 125CC air-cooled engine and an advanced EFI system, and its emissions can meet Euro V standards. The front disc and rear drum CBS linkage brake system and telescopic suspension provide flexible operation and smooth driving. It is equipped with smart lock and keyless entry, which is safer and more convenient than traditional mechanical locks.
Key words:
Classification:
Scooter
Hotline:
CH125T-HY
Graphic Details
Product Parameters
| Model | CH125T-HY | color options | Red/Black/White/Blue | ||
| Engine | Engine type | J25-125, Air cooled | Body of scooter |
Length * width * height (mm) | 1950×730×1110 |
| Cylinder diameter x stroke (mm) | 53.5×55.1 | Seat height (mm) | / | ||
| Displacement (ml) | 125 | Ground clearance (mm) | 110 | ||
| Compression ratio | 9.5：1 | Wheel base (mm) | 1290 | ||
| peak power(kw/r/min) | 6.8/7500 | Unladen mass (KG) | 95 | ||
| Peak torque(Nm/r/min) | 9.5/6000 | Oil tank capacity (L) | 6.2 | ||
| Startup mode | Electrit start | Tyre specification | Front 90/90-12，Rear110/70-12 | ||
| Maximum design speed | ≤90km/h | Brake type | Front disc/rear drum | ||
Product display
1. The large storage space under the seat makes it easy to carry your necessities. The open front storage box and hidden USB charging port make every ride a practical and enjoyable experience.
2. Equipped with 125CC air-cooled engine and an advanced EFI system, it provides stable power, optimizes fuel delivery, improves efficiency and reduces emissions.
3. Equipped with LED headlights and taillights, the light source is concentrated and penetrating, illuminating a wider area. The front disc and rear drum CBS linkage brake system is flexible to operate and smooth to drive.
4. The ergonomically designed seat is spacious and comfortable, and it is also comfortable for two people to ride, making it a good helper for family sharing.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
Why choose us?
Company advantage
Changhua Group is a professional OEM and ODM motorcycle factory. Our company has middle and senior technical personnel and management personnel, and employs technical experts, management and marketing elites in the domestic industry. In order to realize the sustainable development of enterprises, we have invested a lot of money in research and development to explore new technologies and new materials. At present, we have obtained 35 patented designs and developed a series of motorcycles with independent intellectual property rights.
Service advantage
We have a dedicated service team docking customers, can timely solve the customer pre-sale, sale, after-sales needs. Changhua Group is willing to accompany customers to grow together and solve problems for customers with fast and effective service. We will continue to maintain our business purpose: customer quality requirements, is our work standard.
ISO 9001
CQC
CE
Previous Page
CH50T-HW
Next Page
CH125T-HY
Smooth body lines, outlining an elegant silhouette. It combines retro appearance with modern technology. It is equipped with powerful 125CC air-cooled engine and an advanced EFI system, and its emissions can meet Euro V standards. The front disc and rear drum CBS linkage brake system and telescopic suspension provide flexible operation and smooth driving. It is equipped with smart lock and keyless entry, which is safer and more convenient than traditional mechanical locks.
Key words:
Classification:
Product accessories:
Hotline:
Product Details
Product Parameters
| Model | CH125T-HY | color options | Red/Black/White/Blue | ||
| Engine | Engine type | J25-125, Air cooled | Body of scooter |
Length * width * height (mm) | 1950×730×1110 |
| Cylinder diameter x stroke (mm) | 53.5×55.1 | Seat height (mm) | / | ||
| Displacement (ml) | 125 | Ground clearance (mm) | 110 | ||
| Compression ratio | 9.5：1 | Wheel base (mm) | 1290 | ||
| peak power(kw/r/min) | 6.8/7500 | Unladen mass (KG) | 95 | ||
| Peak torque(Nm/r/min) | 9.5/6000 | Oil tank capacity (L) | 6.2 | ||
| Startup mode | Electrit start | Tyre specification | Front 90/90-12，Rear110/70-12 | ||
| Maximum design speed | ≤90km/h | Brake type | Front disc/rear drum | ||
Product display
1. The large storage space under the seat makes it easy to carry your necessities. The open front storage box and hidden USB charging port make every ride a practical and enjoyable experience.
2. Equipped with 125CC air-cooled engine and an advanced EFI system, it provides stable power, optimizes fuel delivery, improves efficiency and reduces emissions.
3. Equipped with LED headlights and taillights, the light source is concentrated and penetrating, illuminating a wider area. The front disc and rear drum CBS linkage brake system is flexible to operate and smooth to drive.
4. The ergonomically designed seat is spacious and comfortable, and it is also comfortable for two people to ride, making it a good helper for family sharing.
Company Department Introduction
Professional enterprise team, complete production process
Multiple departments supervise each other and standardize the production process to ensure that customer requirements and relevant quality standards are met
R & D Dept:
Responsible for the development of product inspection standards.
Quality Control Department
Responsible for product inspection, production process and regular inspection of final products
Production workshop
Responsible for self-inspection and mutual inspection of production process.
Optimize supply chain management
We can help customers optimize supply chain management, provide supply chain coordination, logistics and distribution services, ensure stable product supply and reduce costs.
