CH-P011

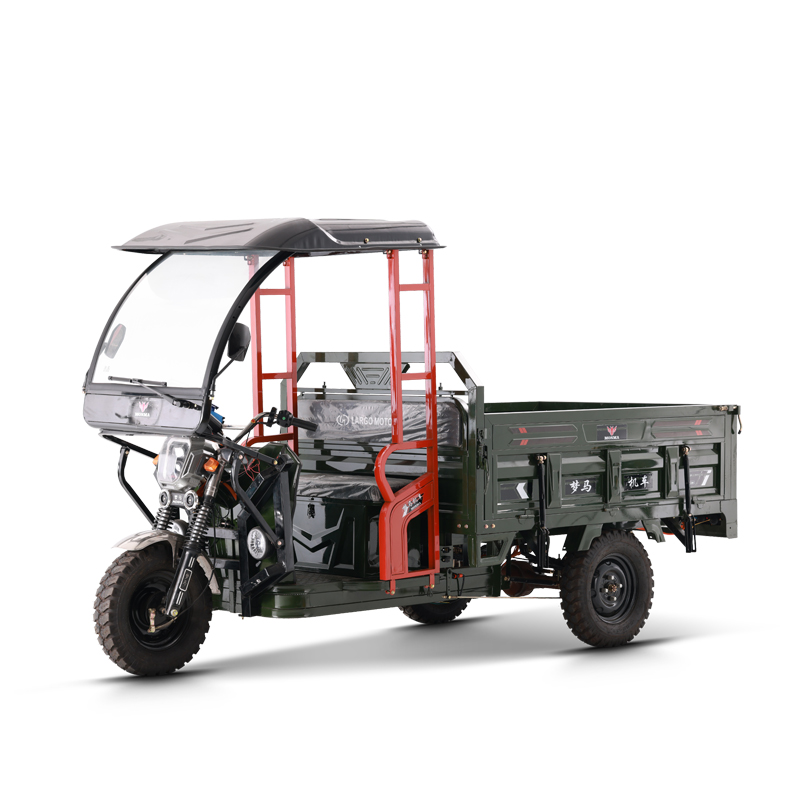

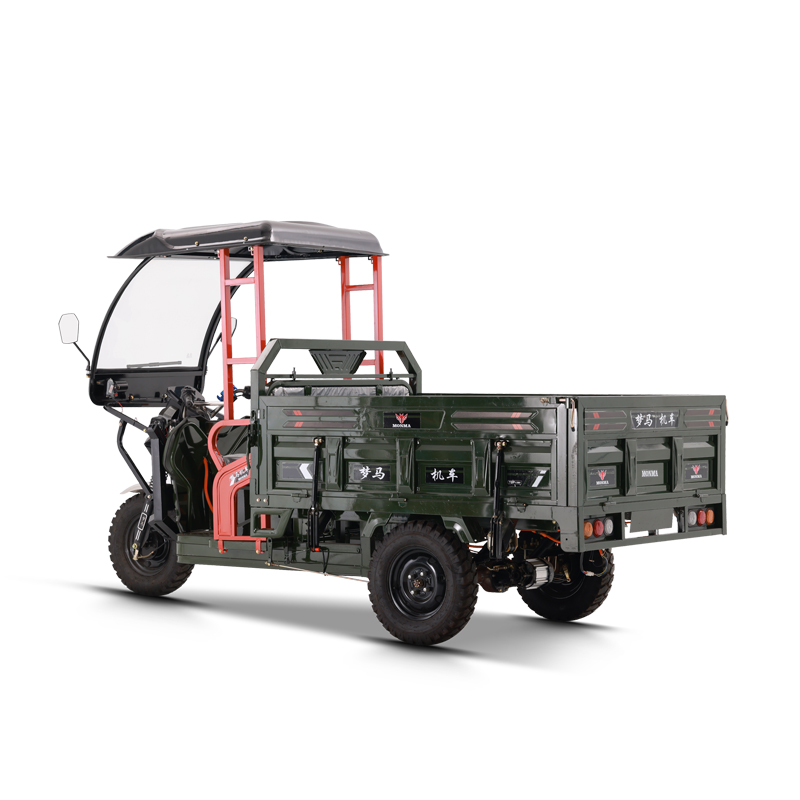

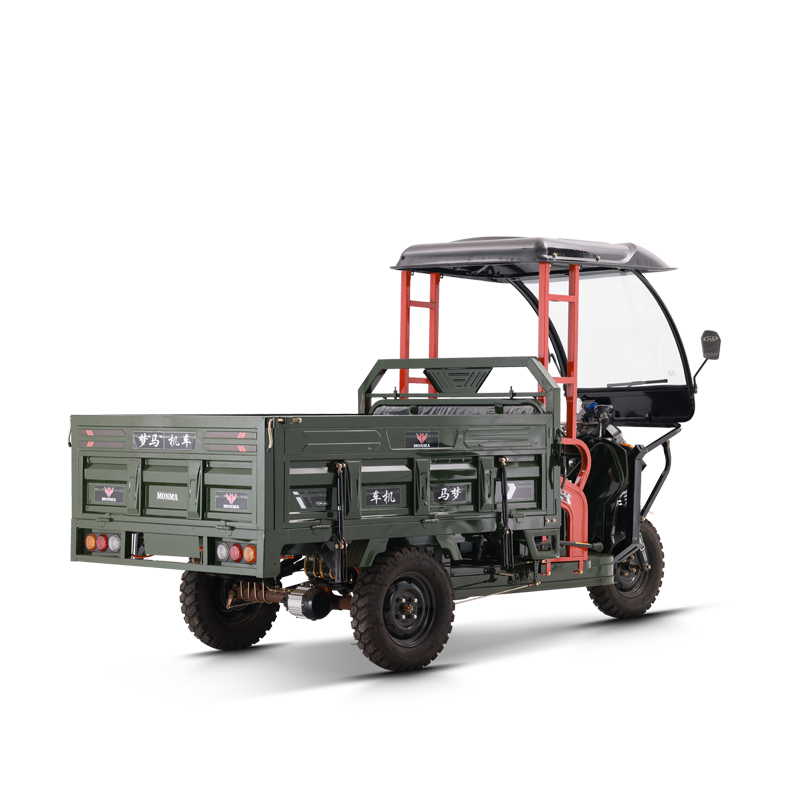

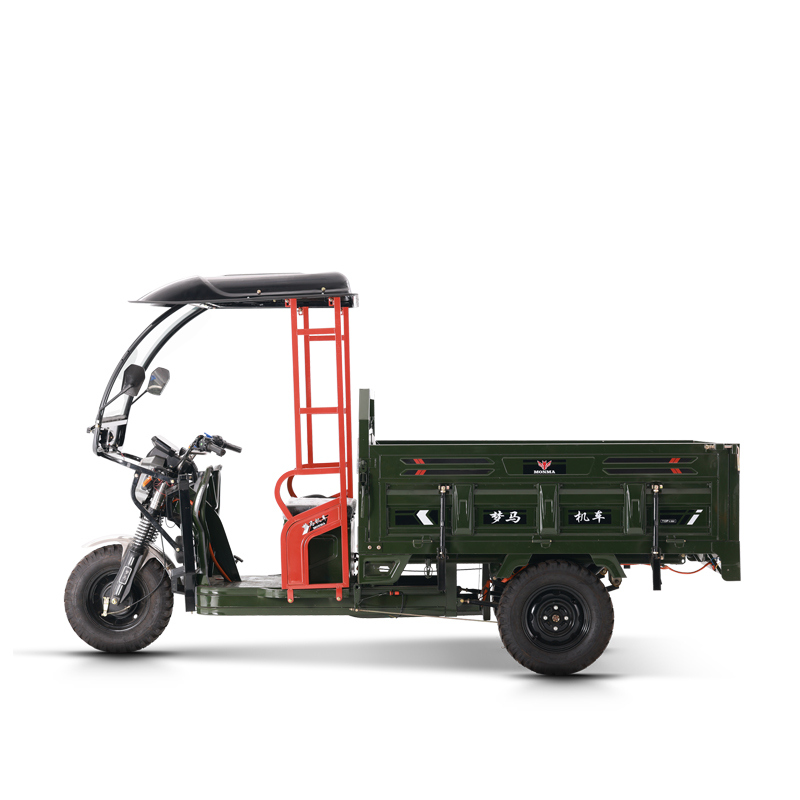

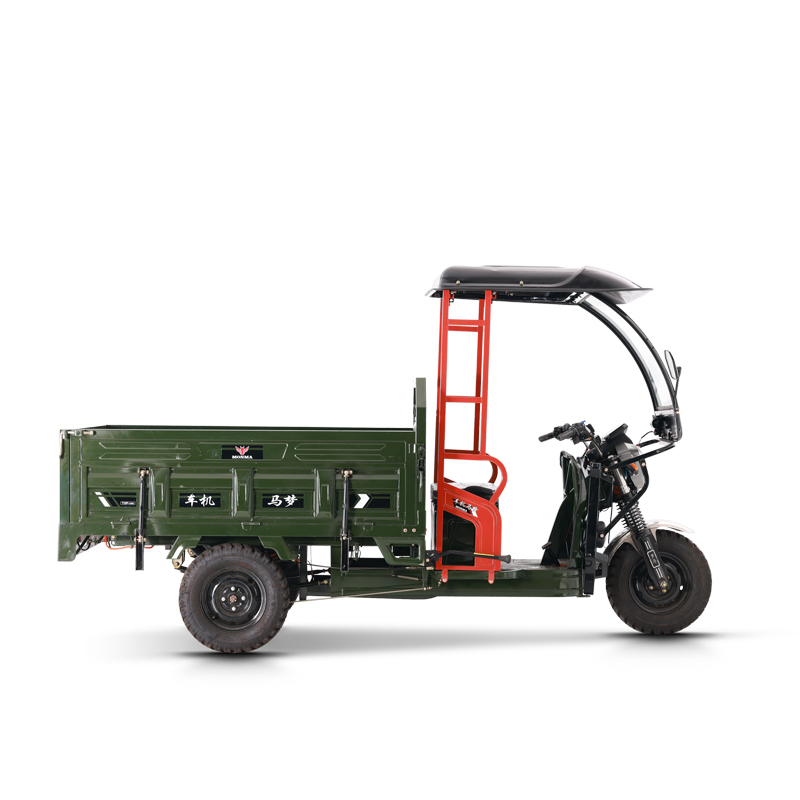

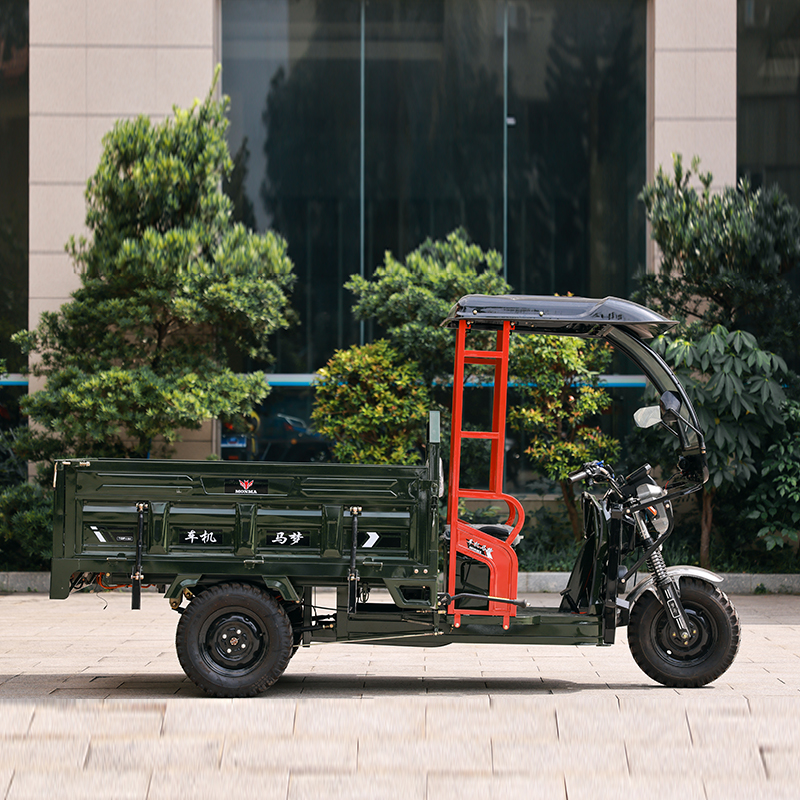

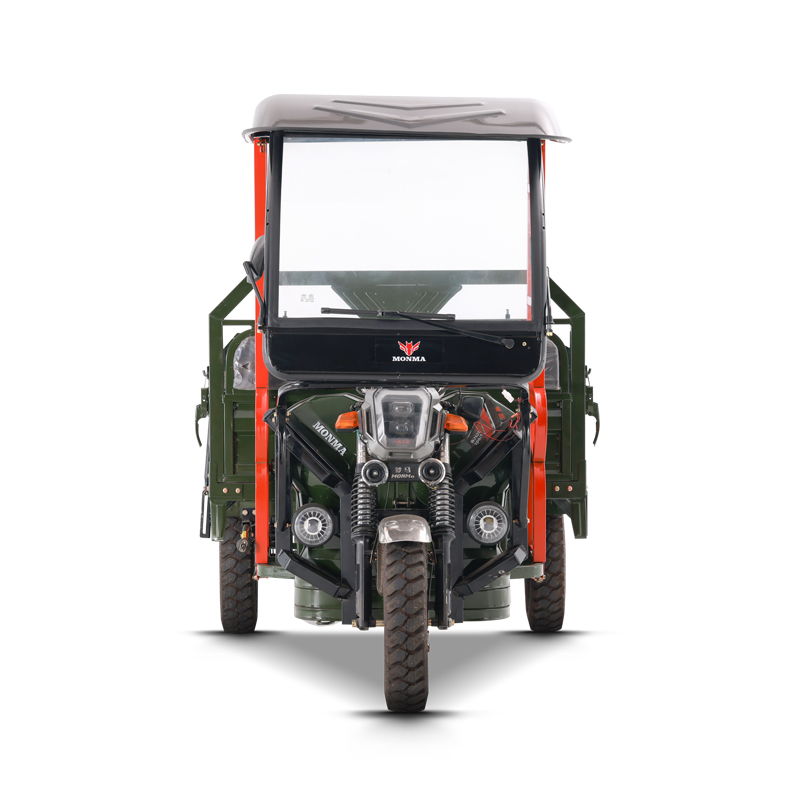

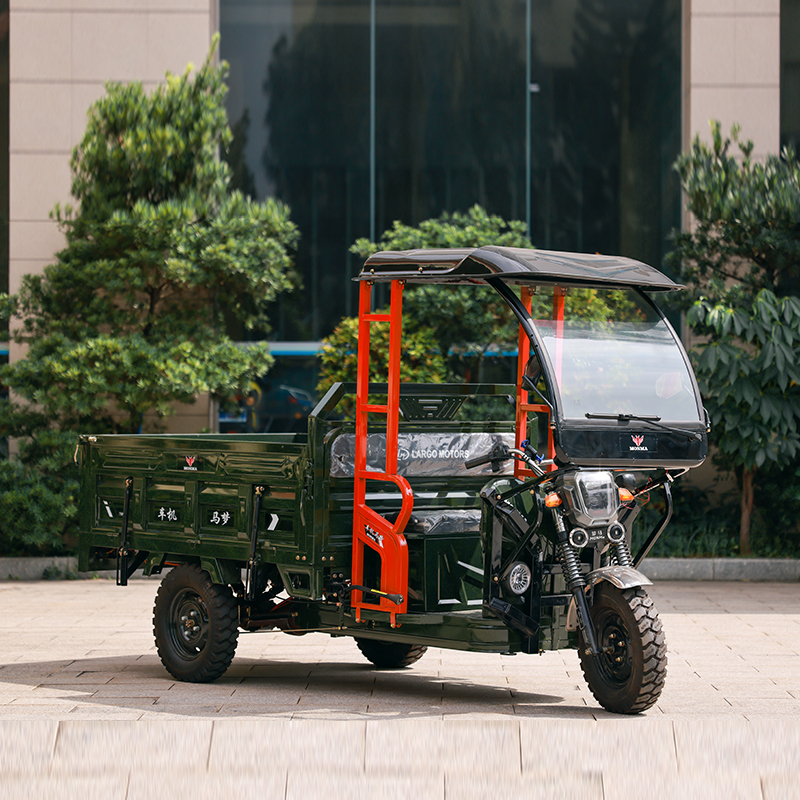

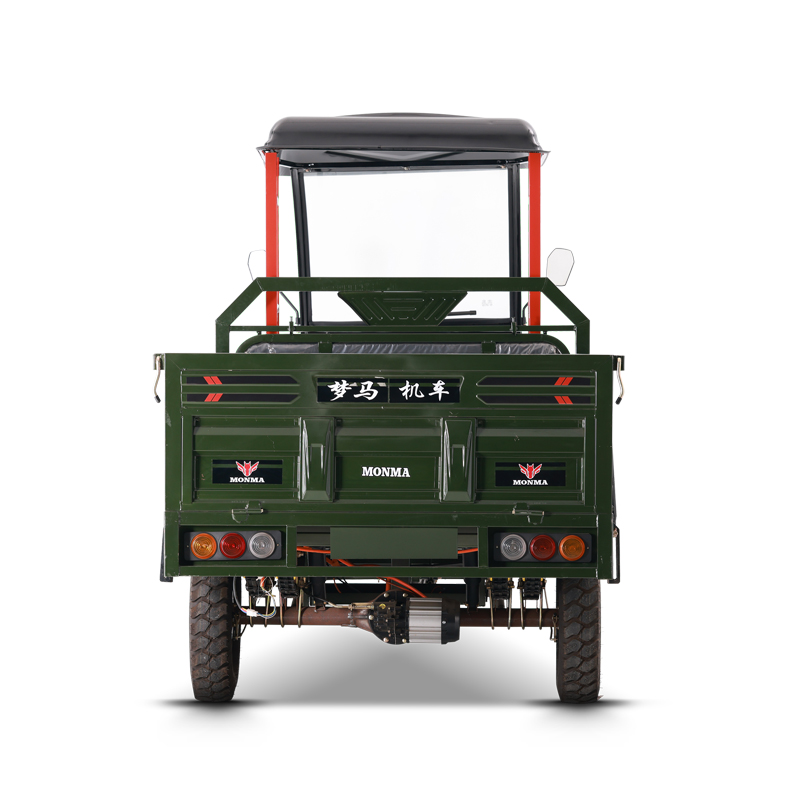

The cargo-carrying electric tricycle is equipped with a 1800*1300mm large cargo compartment and an integrated stamped compartment, making the body structure more stable. Equipped with a 1800W70H permanent magnet motor, it can continuously output strong power. The 160mm drum brake integrated gear shifting makes the transmission more stable.
Equipped with an LCD instrument panel to promptly convey the riding status of the tricycle. The LED headlights, with concentrated light, make driving safer at night. With mobile phone charging function and Bluetooth speakers, you can experience the fun of traveling.
PRODUCT PARAMETERS
| Number | CH-P011 |
| Model | CH-P011 |
|
|
| Basic configuration | Vehicle size(mm) | 3300*1300*750 | Power system | Motor | 1800W70H permanent magnet motor |
| Container size（mm） | 1800*1300 | Controller | 24 Mousse tube |
| Seat height(mm) | 700 | Maximum speed(KM/H) | 40-52(Optional) |
| Ground clearance(mm) | 220 | Maximum torque | / |
| Track width(mm) | 1160 | Start mode | Electronic control |
| Load capacity mass(KG) | 320 | Storage battery | 72V68A |
| Tire Size | Front 5.00-12/Rear 5.00-12 | Mileage driven | Reference battery data |
| Braking method | Front drum/Rear drum | Other Configuration | Phone charging | Yes |
| Rear axle | 160mm brake hub | Bluetooth audio | Yes |
| Front suspension | 43mm External spring damping | Fringe curtain | No |
| Rear suspension | Double steel plate structure, six spring plates non-load bearing | Alternator | No |
| Instrument | LCD instrument | Packaging method | CKD |
| Headlamps | LED | Windshield wiper | Electric wipers |
PERFORMANCE
● The cargo tricycle combines durability, practicality and versatility. It is equipped with a powerful 1800W70H permanent magnet motor, a spacious and sturdy high guardrail compartment, a larger load-bearing space, and can carry up to 320KG of cargo.
● The front and rear wheels use 5.00-12 wide tires to improve the grip performance of the tricycle and ensure driving safety.
● The rear axle uses a 160mm drum brake integrated shifting system to provide reliable braking force, and the operation is quieter and more efficient. The front suspension 43mm thickened external spring shock absorber enables the tricycle to provide excellent stability and comfort even on uneven roads.
● Equipped with an LCD instrument panel, clear visual effects and diversified functions. Using high-brightness headlights, driving at night is safer and the field of vision is wider. With mobile phone charging function and Bluetooth speakers, it improves the riding experience and fun.
APPLICATION
A practical electric cargo tricycle, widely used in agricultural land planting, building material delivery and logistics transportation.
