Factory Direct Sale 5000W Electric Moto Battery Motorcycles
The stylish street motorcycle is equipped with a 72V5000W mid-mounted motor and a maximum speed of 120km/h. The high-energy-density ternary lithium battery has a range of 120KM, making it suitable for long-distance travel. It is equipped with an LCD instrument panel that displays information such as vehicle speed and power in real time, providing the rider with a driving experience.
The front and rear are equipped with vacuum tires and CBS disc brake systems, which provide superior braking performance and ensure the safety of the rider.
PRODUCT PARAMETERS
| Model | TD-12KW | Color options | Red/Black/White/Blue |
| Motor | Motor type | 138-90H | Body | Length * width * height (mm) | 2060×770×1125 |
| Motor form | Mid mounted motor | Seat height (mm) | 730 |
| Battery | 4.32KW | Ground clearance (mm) | 200 |
| Battery cell type | Ternary Lithium Battery | Wheel base (mm) | 1380 |
| Motor power | 5000W | Unladen mass (KG) | 150 |
| Controller | FOC Vector | Maximum payload(KG) | 150 |
| Cruising range | 120KM | Tyre specification | Front:110/70-17，Rear:140/70-17 |
| Max speed | 120km/h | Brake type | Front:Disc，Rear:Disc |
| Charger time | 6H | Meter | LCD |
PERFORMANCE
● Equipped with a 72V5000W mid-mounted motor and FOC vector controller, it achieves excellent torque output, with the maximum torque output of the rear wheel reaching 483N.m, the motor conversion efficiency can reach 95%, and the maximum climbing angle exceeds 20°. Equipped with a ternary lithium battery, it has high energy density and long life, reduces energy waste, greatly improves the use efficiency, and has a range of 120KM.

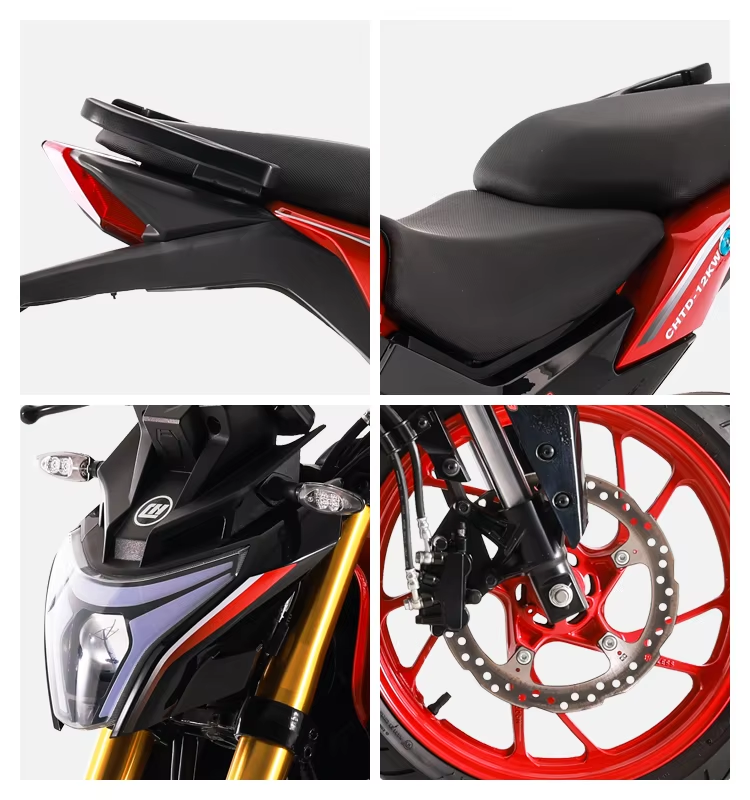

● Equipped with 110/70-17 front wheel vacuum tires and 140/70-17 rear wheel vacuum tires, with CBS disc brake systems at the front and rear, which greatly improves the overall braking performance of the motorcycle.
● Inverted front shock absorbers and central rear shock absorbers provide a more comfortable driving experience and improve the controllability of the motorcycle.
● High-brightness LED headlights make driving safer at night. The instrument uses an LCD display screen, which still maintains clear visibility under strong light and can display driving data such as speed and mileage in real time.
APPLICATION
The combination of performance and avant-garde aesthetic design, taking into account the passion of speed and urban fashion, allows riders to conquer every street.
