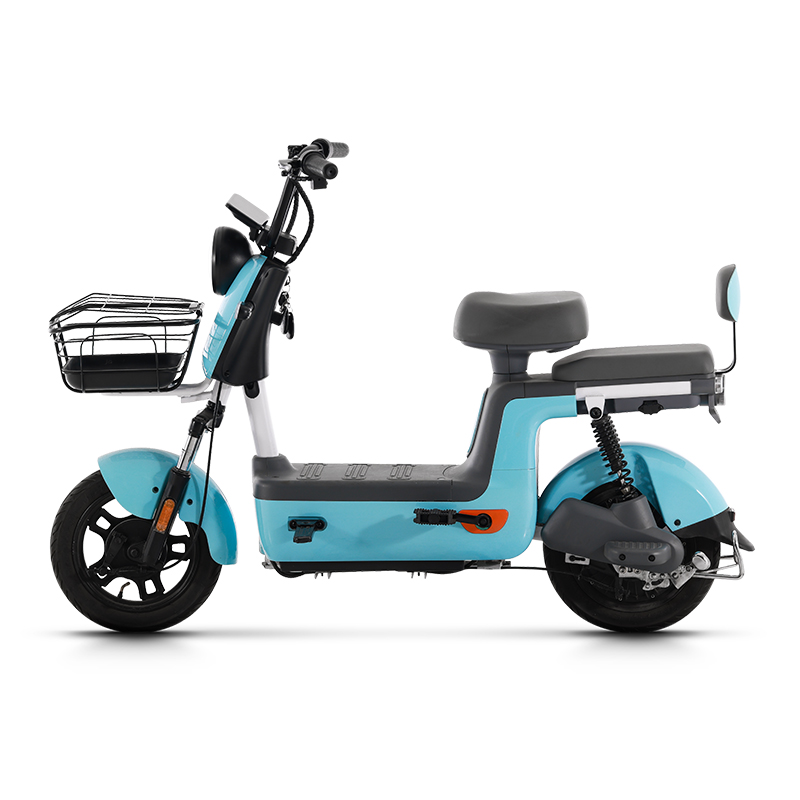

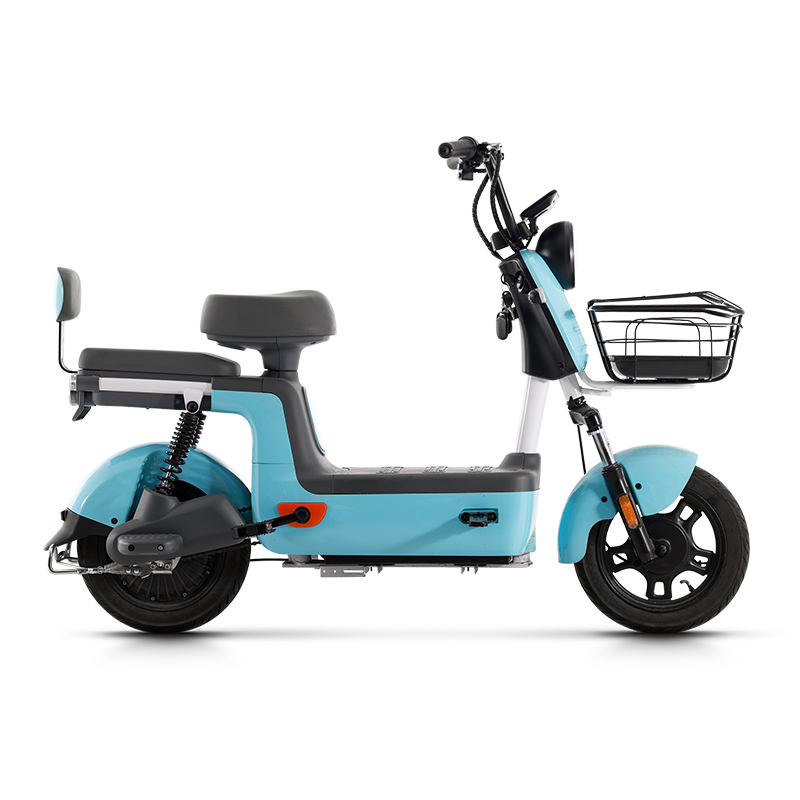

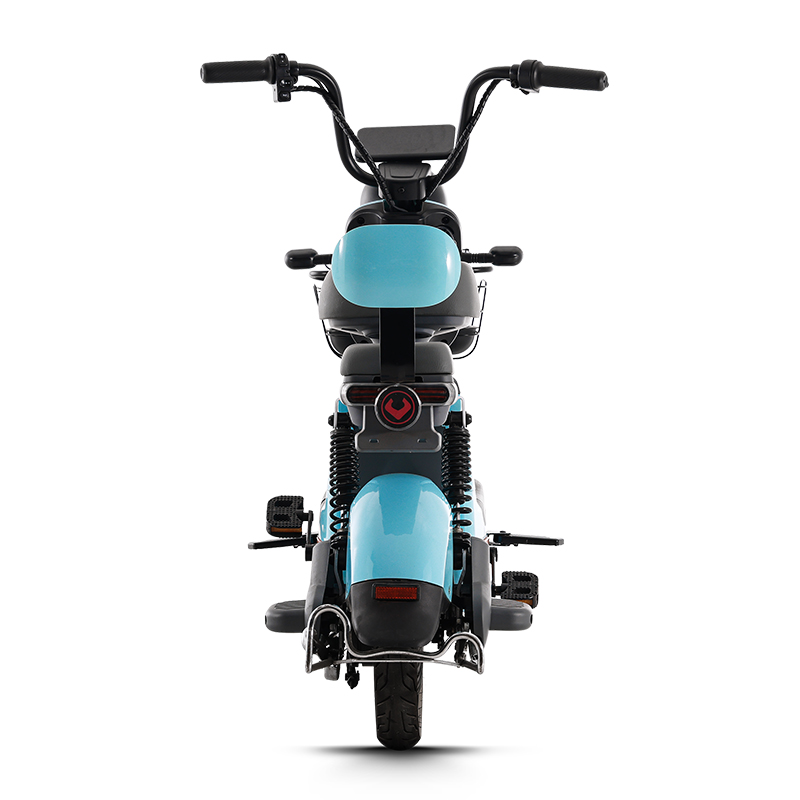

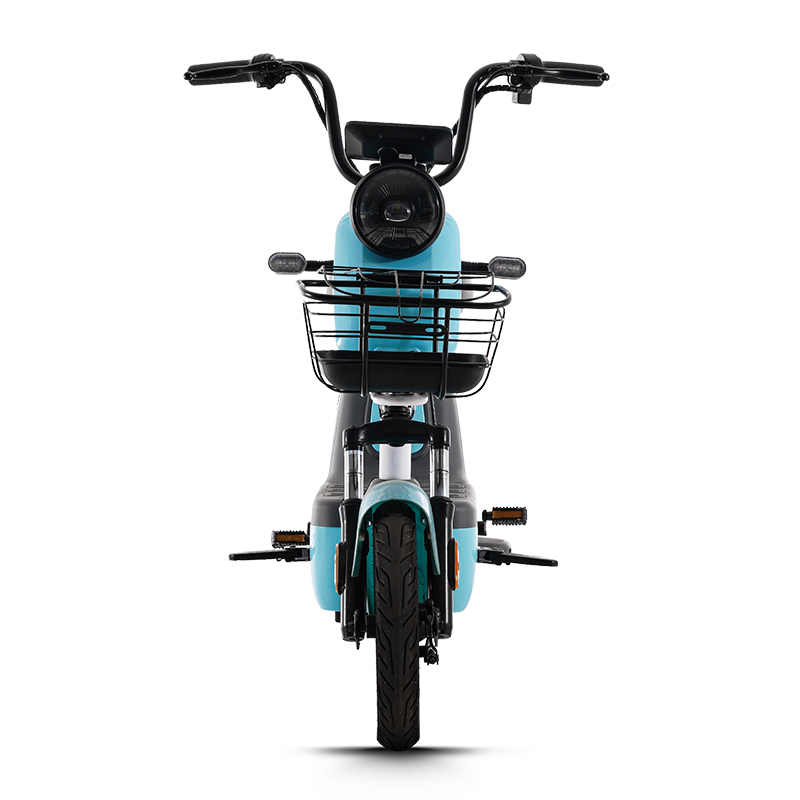

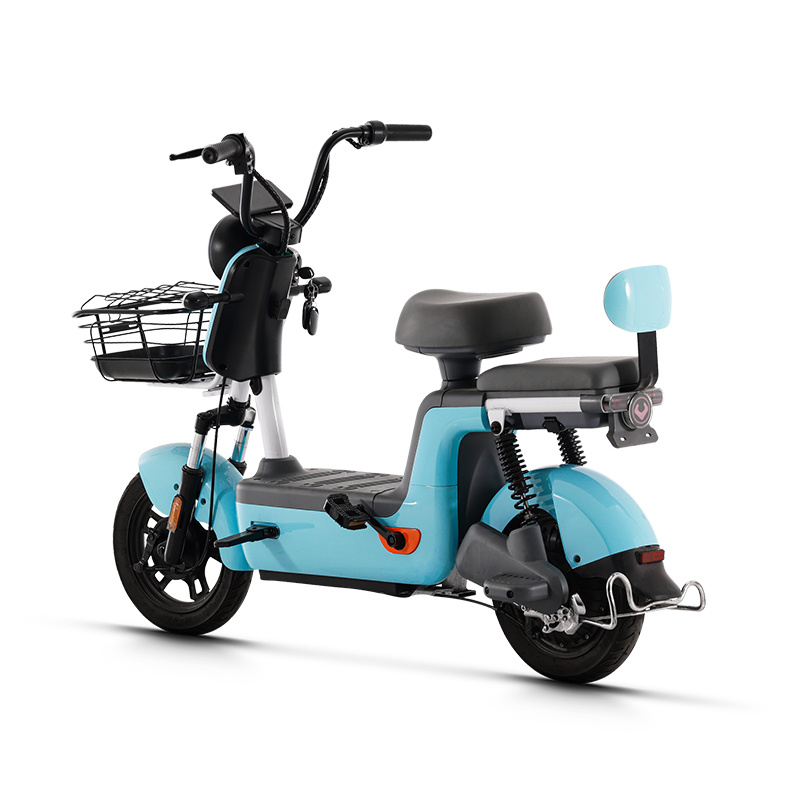

New Model Design Electric Bike 14 inch Tire Motos for Adults
Lightweight electric bike, equipped with 48V350W hub motor, 55KM range, suitable for short-distance commuting. Uses lead-acid battery, charging time 6.5 hours, economical and practical. Practical functions, humanized design.
Equipped with LCD instrument panel, real-time display of vehicle speed, power and other information, focusing on user experience, highlighting the sense of technology. Provide users with efficient and economical green travel solutions, it is an ideal choice for urban commuting and leisure riding.
PRODUCT PARAMETERS

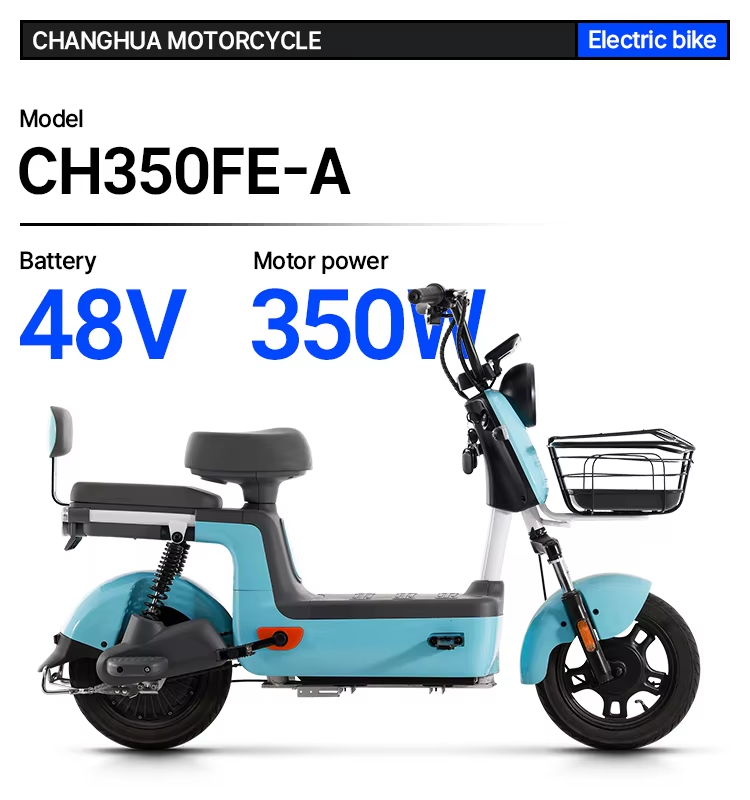

| Model | CH350FE-A | color options | Red/Black/White/Blue |
| Motor | Motor type | DZ48V350W | Body | Length * width * height (mm) | 1445×660×1010 |
| Motor form | Wheelmotor | Seat height (mm) | 700 |
| Battery | 48V20AH | Ground clearance (mm) | 140 |
| Battery cell type | Lead acid Battery | Wheel base (mm) | 1055 |
| Motor power | 350W | Unladen mass (KG) | 63 |
| Controller | FOC Vector | Maximum payload(KG) | 75 |
| Cruising range | 55KM | Tyre specification | Front:2.50×14，Rear:2.50×14 |
| Max speed | 25km/h | Brake type | Front:Drum，Rear:Drum |
| Charger time | 6.5H | Meter | LCD |
PERFORMANCE
● Equipped with DZ48V350W hub-mounted permanent magnet synchronous motor, it adopts FOC (field oriented control) vector control technology to achieve up to 95% energy efficiency conversion
● The frame adopts high-carbon steel rectangular tube welding structure, with a curb weight of 63kg while maintaining a dynamic load capacity of 75kg.
● The 700mm seat height design, combined with an ergonomic saddle, provides good comfort for long-term riding. The instrument adopts an LCD display screen, which maintains clear visibility under strong light and can display driving data such as speed and mileage in real time.
● The lighting system adopts LED light source, with a low beam irradiation distance of 15m, and energy consumption is 60% lower than that of traditional halogen lamps.
● Equipped with a large-capacity front storage basket, it is an ideal choice for urban commuting and leisure riding.
APPLICATION
Exhilarating Performance. Silent Power.Small and nimble, it weaves through city traffic like never before.
