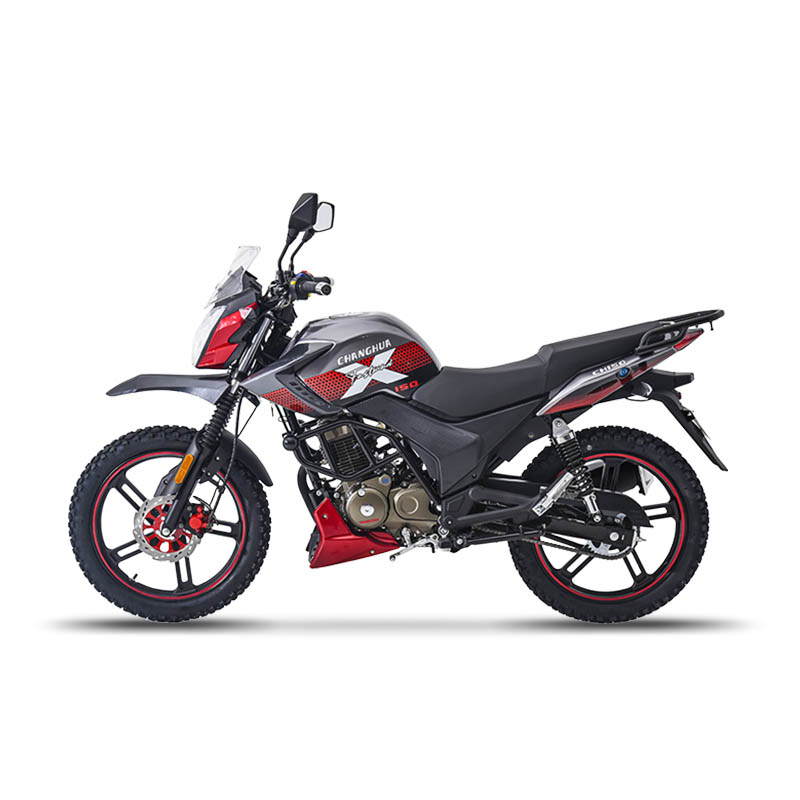

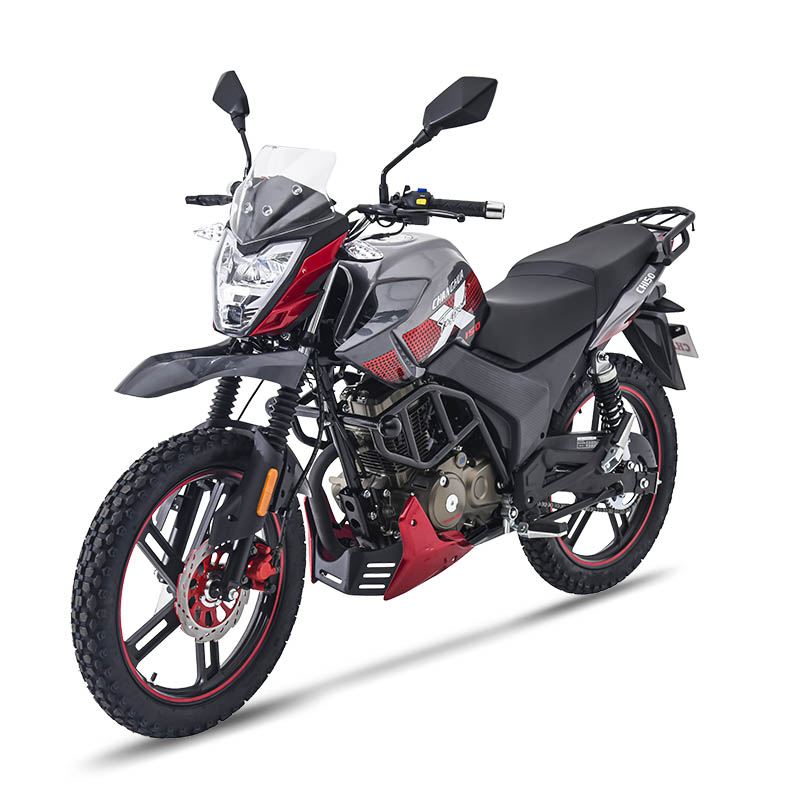

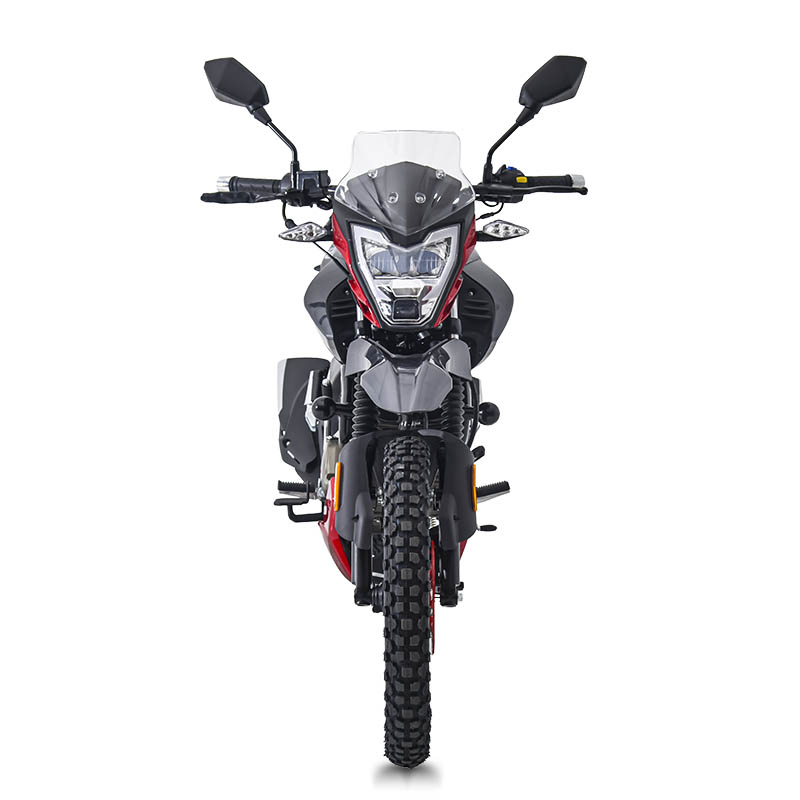

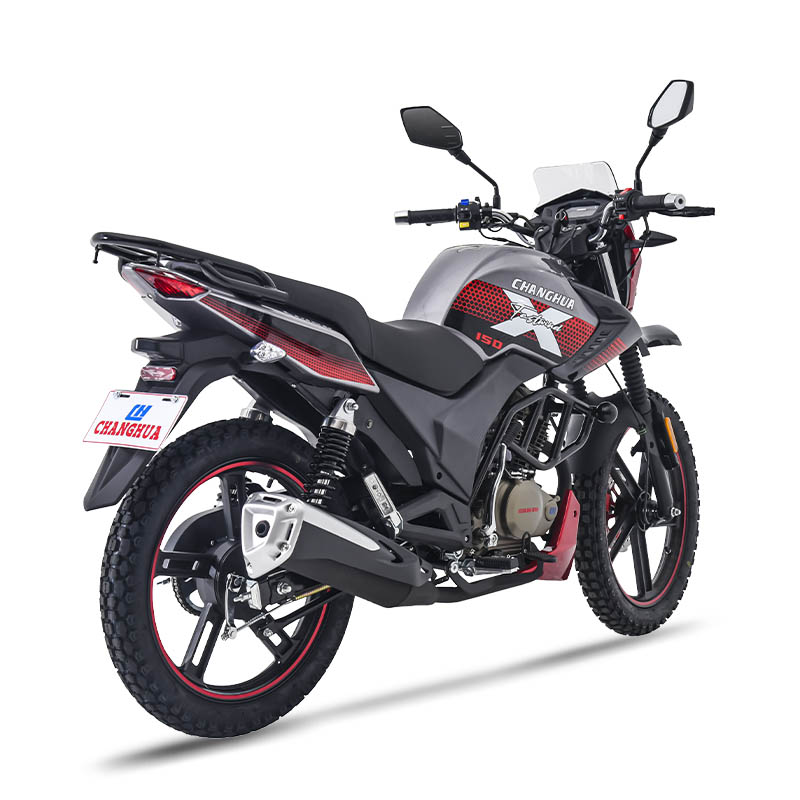

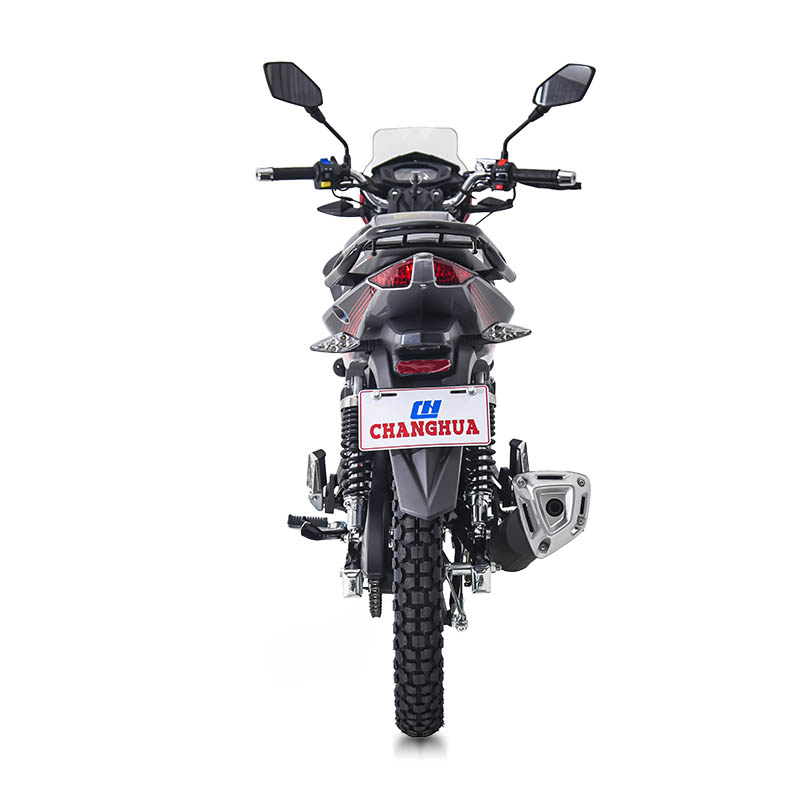

CH-043

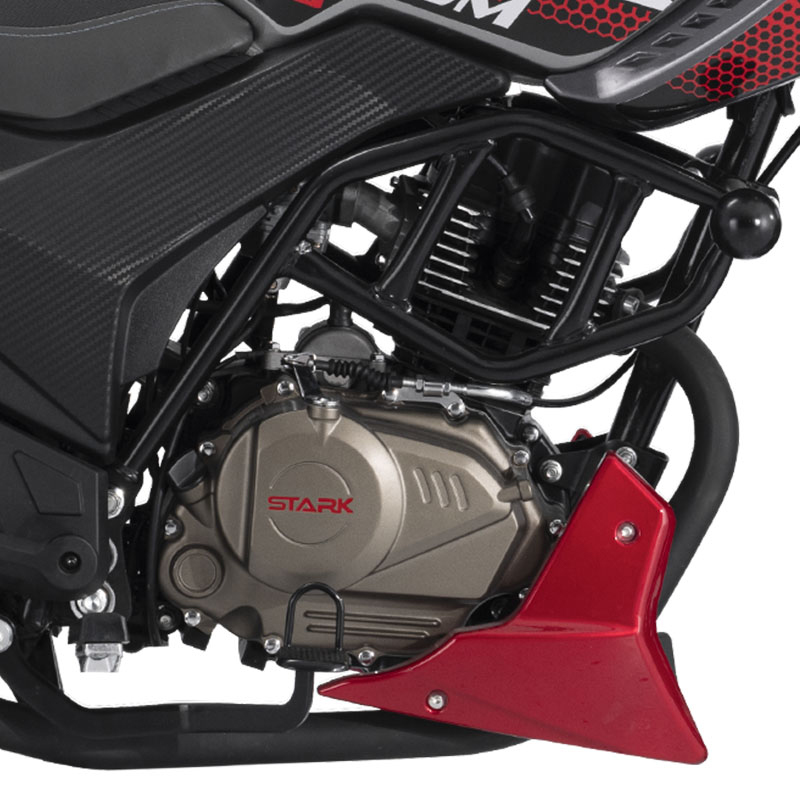

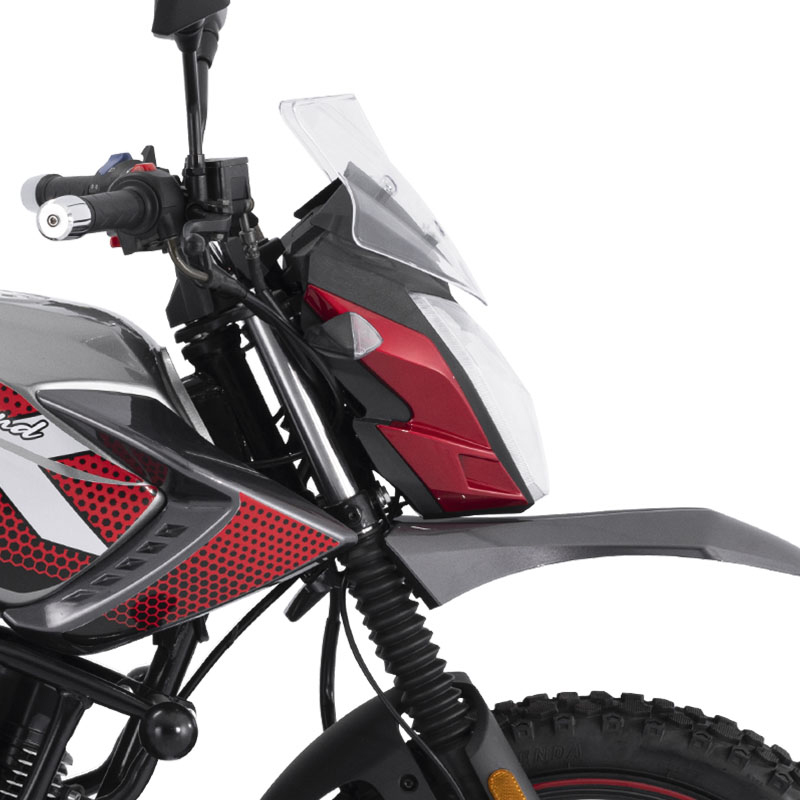

Unique headlights and a highly recognizable body shape can be customized with different colors and decals. The off-road model has a raised front fender and deep-toothed tires, suitable for mountainous mud roads. High-quality engine guard provides key protection for the engine.
The motorcycle body is equipped with anti-fall bumpers to protect the safety of the vehicle and rider. Thicker rear shock absorbers improve driving comfort. 150CC CBF engine has strong power, low noise, low vibration and fast speed increase.
PRODUCT PARAMETERS
| 车型 | CH-043 | Color options | Red/Black/White/Blue |
| Engine | Engine type | Single cylinder, four stroke, air cooling, vertical | Body of
motorcycle | Length * width * height (mm) | 2010X750X1290 |
| Cylinder diameter x stroke (mm) | 57.3×57.8 | Seat height (mm) | / |
| Displacement (ml) | 150 | Ground clearance (mm) | 180 |
| Compression ratio | 9.2:1 | Wheel base (mm) | 1340 |
| peak power(kw/r/min) | 8.6/7500 | Unladen mass (KG) | 142 |
| Peak torque(Nm/r/min) | 11.5/6000 | Oil tank capacity (L) | 15 |
| Startup mode | Electric/foot start | Tyre specification | Front100/80-17 ，Rear 110/80-17 |
| Maximum design speed | ≤90km/h | Brake type | Front disc/rear drum |
PERFORMANCE
● Single-cylinder four-stroke, CBF 150CC air-cooled engine has strong power, low noise, low vibration, and fast speed increase. It is a high-performance engine that can provide power evenly throughout the entire speed range and maintain stable operation for a long time.
● Off-road styling, heightened fenders, and deep-toothed tires are suitable for rugged mountainous mud roads.
● Equipped with engine guard and anti-fall guard bar to protect the safety of the vehicle and rider. The thick black rear shock absorbers highlight the tough stance and improve the rider's driving comfort.
● The dashboard displays clearly and has a simple layout. The entire vehicle uses high-quality lamps with concentrated light sources, making driving at night safer.
APPLICATION
It has powerful power, flexible operation, can quickly cross the ground, can operate for a long time in harsh terrain, and has the ability to ride off-road.
