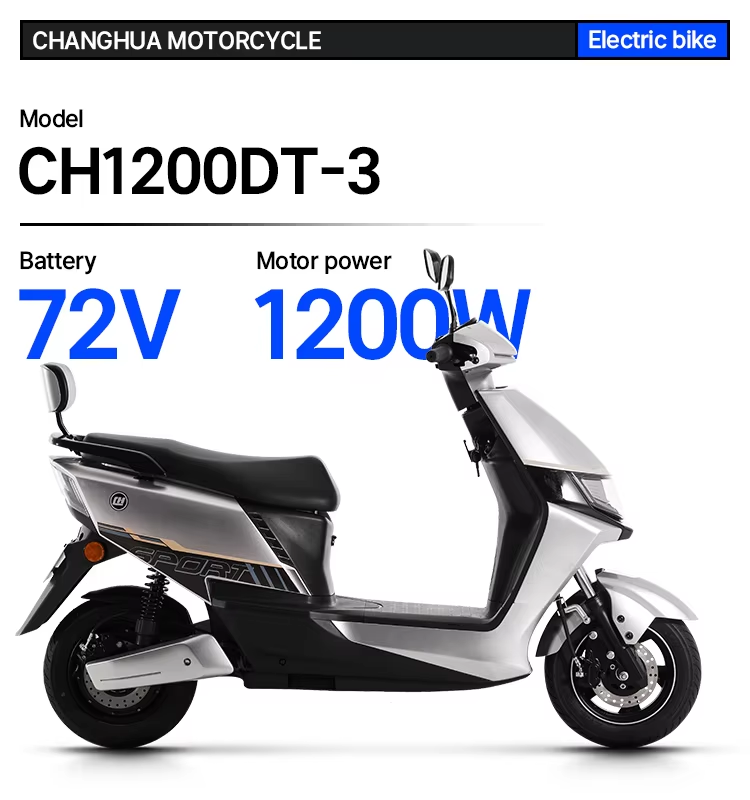

Adult Electric Scooter with 1200W Two-Wheel Electronic Smart Type Brushless Motor
The vehicle uses a 72V1200W motor, has a range of 80KM, and a maximum speed of 50km/h. It takes into account both power and economy, and is suitable for medium and short-distance travel. The lead-acid battery takes 6.5 hours to charge, which is economical and practical.
The lead-acid battery is recyclable and meets environmental protection requirements. The low-noise motor reduces urban noise pollution. It is equipped with an LCD instrument panel, which displays information such as vehicle speed and power in real time, focusing on user experience and highlighting a sense of technology
PRODUCT PARAMETERS
| Model | CH1200DT-3 | color options | Red/Black/White/Blue |
| Motor | Motor type | 72V1200W | Body | Length * width * height (mm) | 1795×690×1105 |
| Motor form | Wheelmotor | Seat height (mm) | 740 |
| Battery | 72V20AH | Ground clearance (mm) | 120 |
| Battery cell type | Lead acid Battery | Wheel base (mm) | 1320 |
| Motor power | 1200W | Unladen mass (KG) | 122 |
| Controller | FOC Vector | Maximum payload(KG) | 150 |
| Cruising range | 80KM | Tyre specification | Front:3.0-10，Rear:3.0-10 |
| Max speed | 50km/h | Brake type | Front:Disc，Rear:Disc |
| Charger time | 6.5H | Meter | LCD |
PERFORMANCE
● Equipped with 72V1200W high-efficiency hub motor, optimized magnetic circuit design, rear wheel output maximum torque ≤120, with FOC vector controller, excellent low-speed torque output, can maintain a stable climbing speed on a 15° slope, fully meeting the traffic needs of common slopes such as urban overpasses and underground garages.
● The frame has been reinforced, focusing on strengthening the rear fork and motor suspension point structure, with a curb weight of 122kg while maintaining a dynamic load capacity of 150kg.

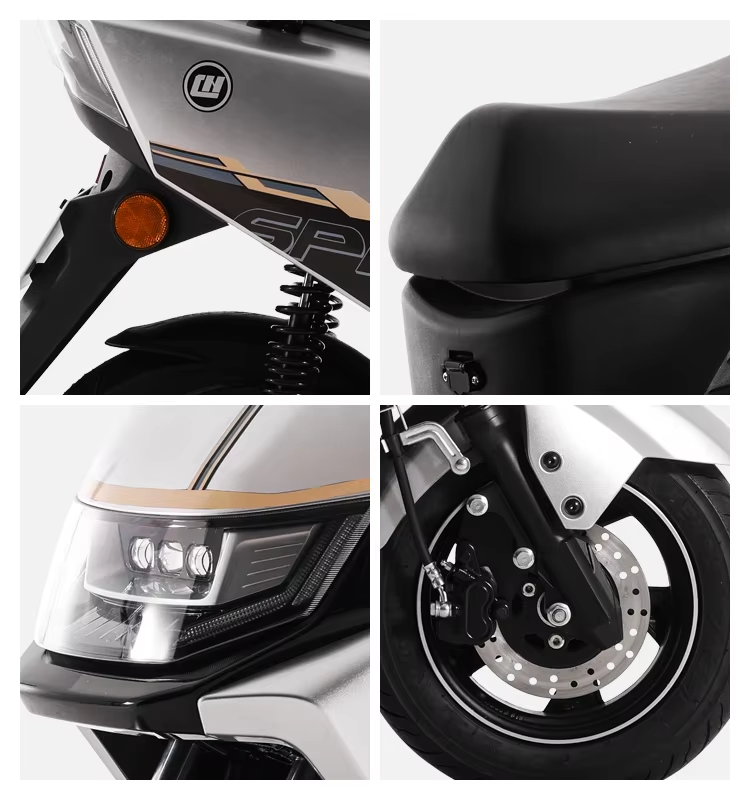

● The 740mm seat height design, combined with an ergonomic saddle, provides good comfort for long-term riding. The instrument uses an LCD display screen, which maintains clear visibility under strong light and can display driving data such as speed and mileage in real time.
● High-brightness LED headlights make driving safer at night. The front and rear brakes use high-friction brake pads to maintain stable braking force at high speeds.
APPLICATION
Exhilarating Performance. Silent Power.Small and nimble, it weaves through city traffic like never before.
