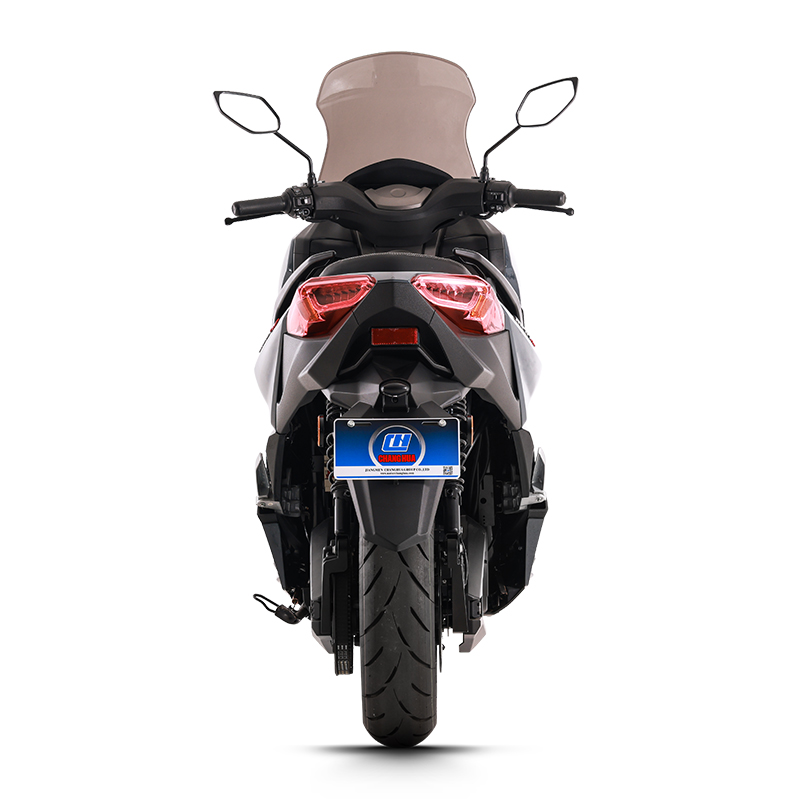

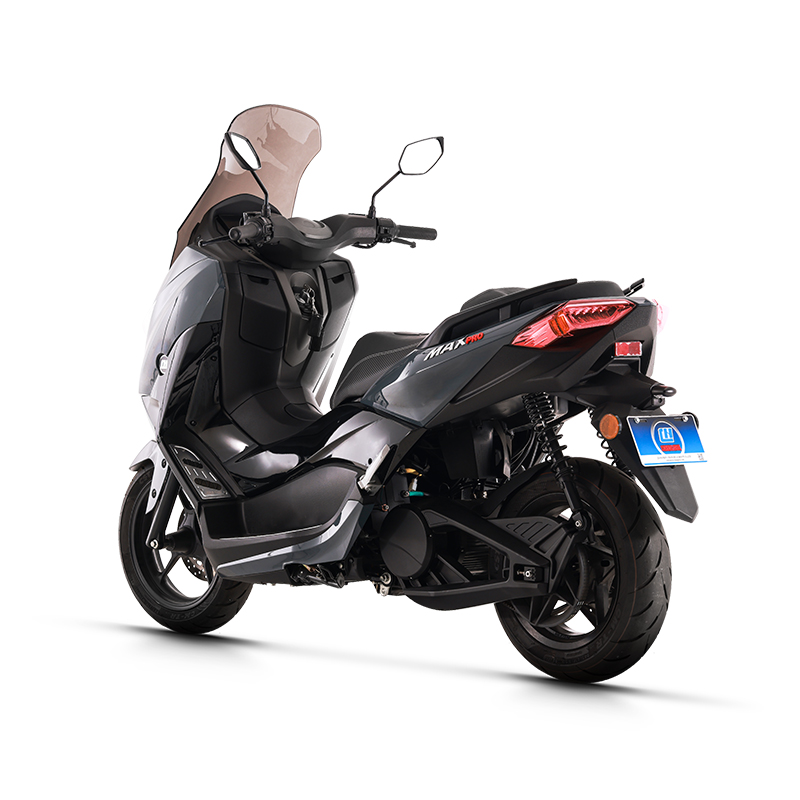

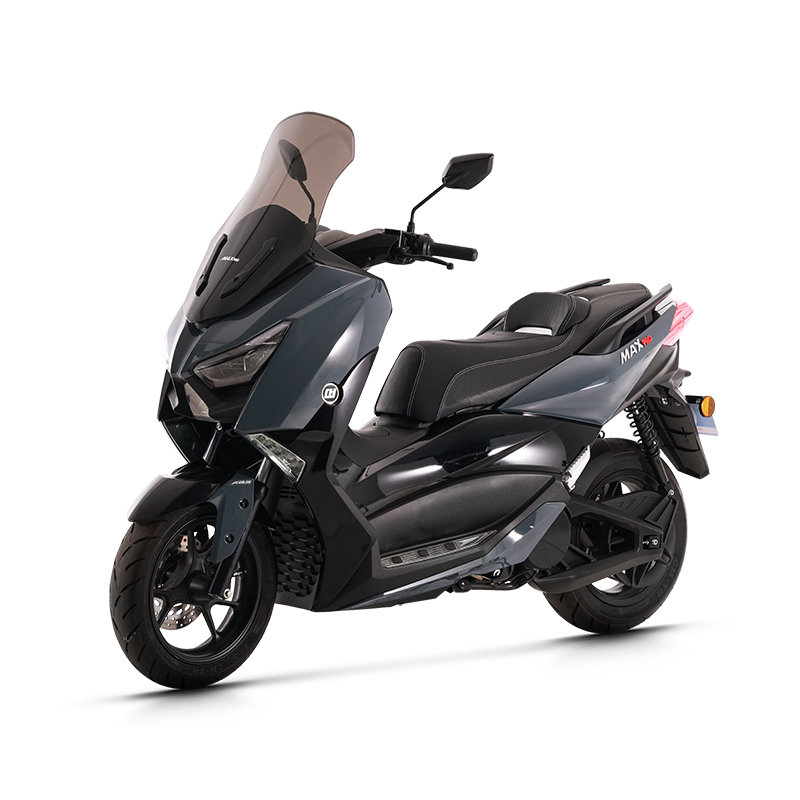

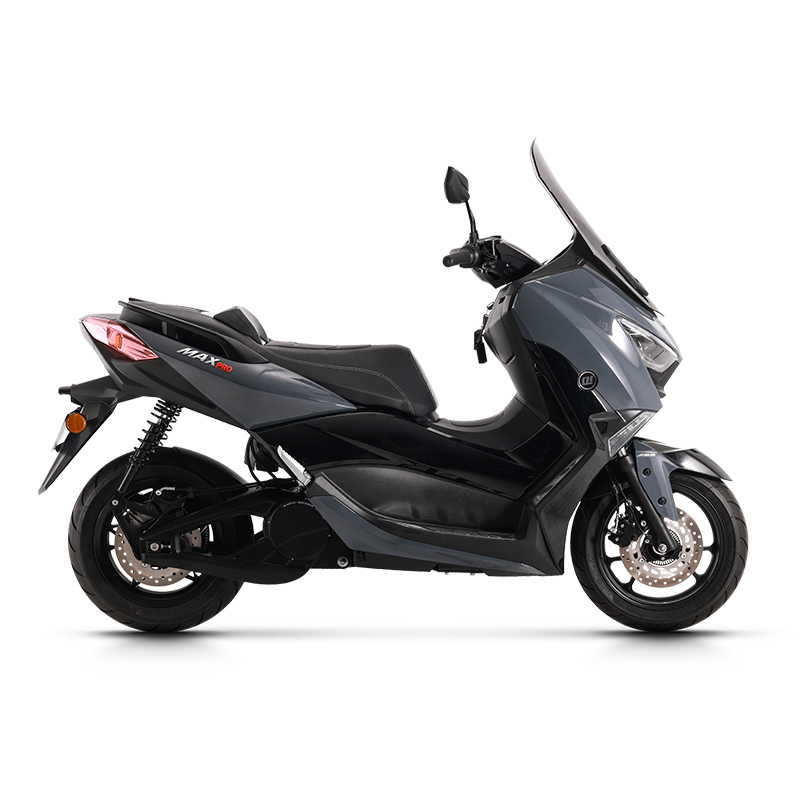

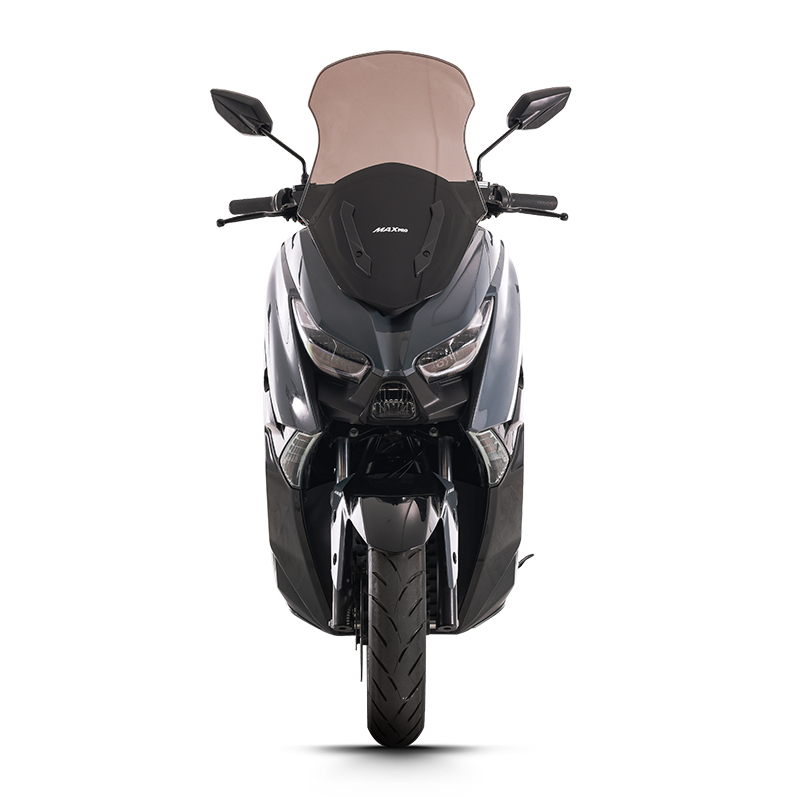

XMAX 150CC Mobility Lithium Battery Electric Scooter Motorbike
The stylish cruise electric scooter has a slender body, a tall windshield, and a streamlined wind deflector. The vehicle is equipped with a 5000W motor, a range of 120KM, and a maximum speed of 120km/h. It is also equipped with a high-density ternary lithium battery, with a range of up to 120KM, which completely solves the anxiety of range. It is equipped with a CAN communication controller and a TFT LCD instrument.

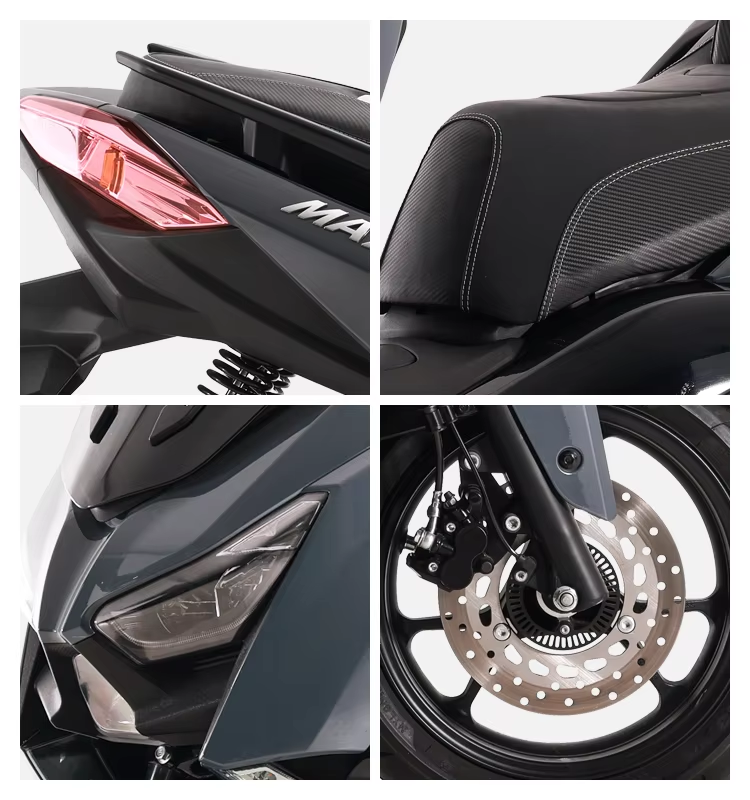

The soft sofa-type seat cushion, the spacious and comfortable riding space, and the wide body shape. The 13-inch large wheels, the front and rear disc brakes are equipped with an ABS anti-lock braking system to ensure the safety of the rider.
PRODUCT PARAMETERS

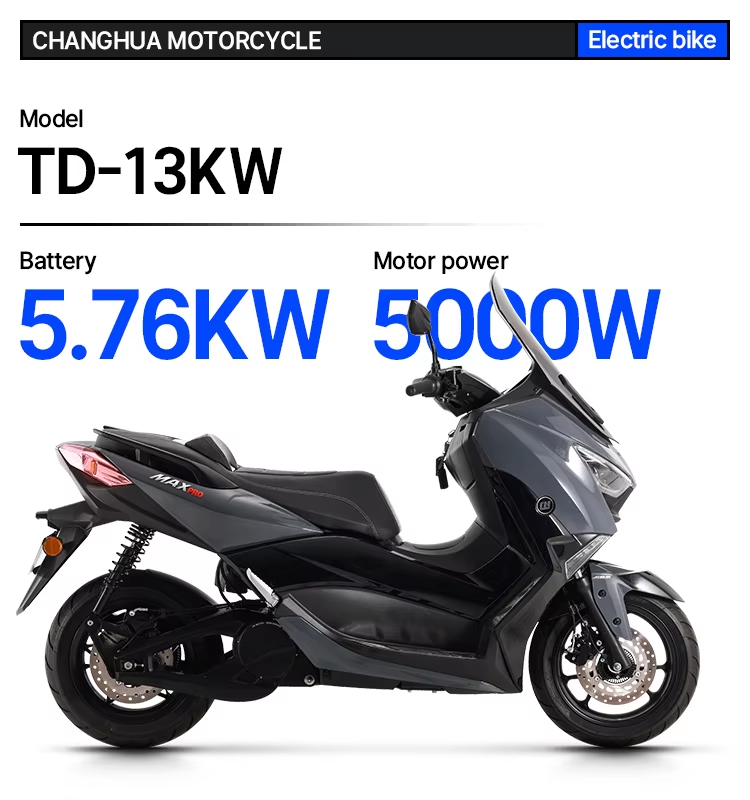

| Model | TD-13KW | Color options | Red/Black/White/Blue |
| Motor | Motor type | DZ96V5000W | Body | Length * width * height (mm) | 2022×720×1380 |
| Motor form | Mid mounted motor | Seat height (mm) | 780 |
| Battery | 5.76KW | Ground clearance (mm) | 125 |
| Battery cell type | Ternary Lithium Battery | Wheel base (mm) | 1355 |
| Motor power | 5000W | Unladen mass (KG) | 152 |
| Controller | FOC Vector | Maximum payload(KG) | 150 |
| Cruising range | 120KM | Tyre specification | Front:110/70-13 ，Rear:130/70-13 |
| Max speed | 120km/h | Brake type | Front:Disc，Rear:Disc |
| Charger time | 6H | Meter | TFT 7 inches |
PERFORMANCE
● Equipped with a 5000W mid-mounted motor and FOC vector controller, it can easily achieve a maximum speed of 120km/h. The maximum torque output of the rear wheel reaches 260N.m, the motor conversion efficiency can reach 93%, and the maximum climbing angle exceeds 20°. The motor adopts IP67 protection level, and the efficient heat dissipation design ensures that it will not decay during long-term high-load operation.
● Safety-first hard-core configuration, front and rear ABS dual-channel hydraulic disc brake system, front and rear 13-inch aluminum alloy wheels, grip adapted to various road conditions. High-rigidity frame, carrying capacity of 150kg.
● CAN communication controller ensures real-time data exchange and coordination between the subsystems of the electric scooter, improving overall performance and safety.
● CAN communication controller ensures real-time data exchange and coordination between the subsystems of the electric scooter, improving overall performance and safety.
APPLICATION
The combination of performance and avant-garde aesthetic design, taking into account the passion of speed and urban fashion, allows riders to conquer every street.
