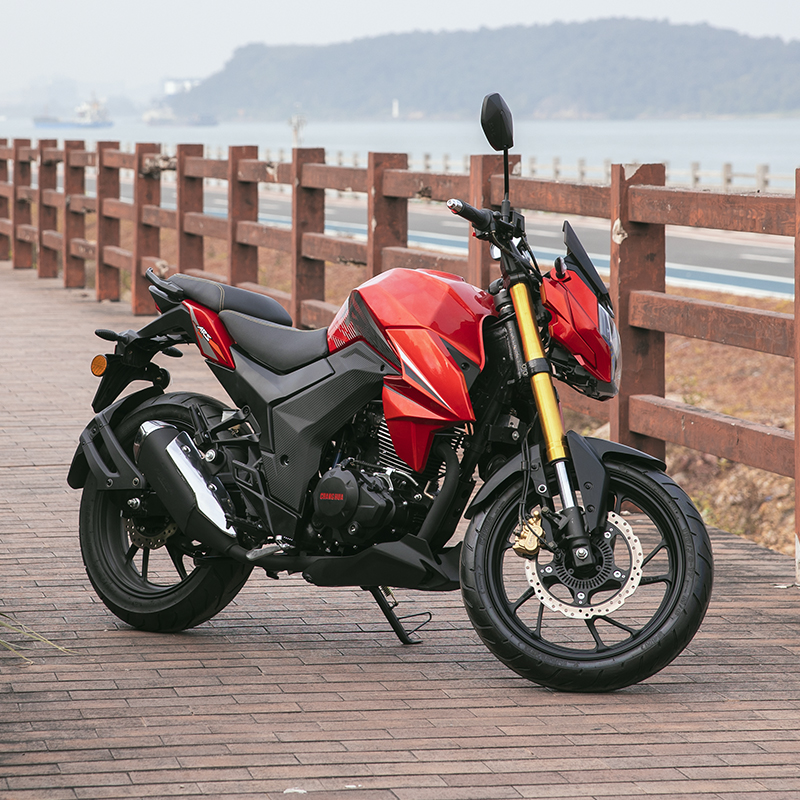

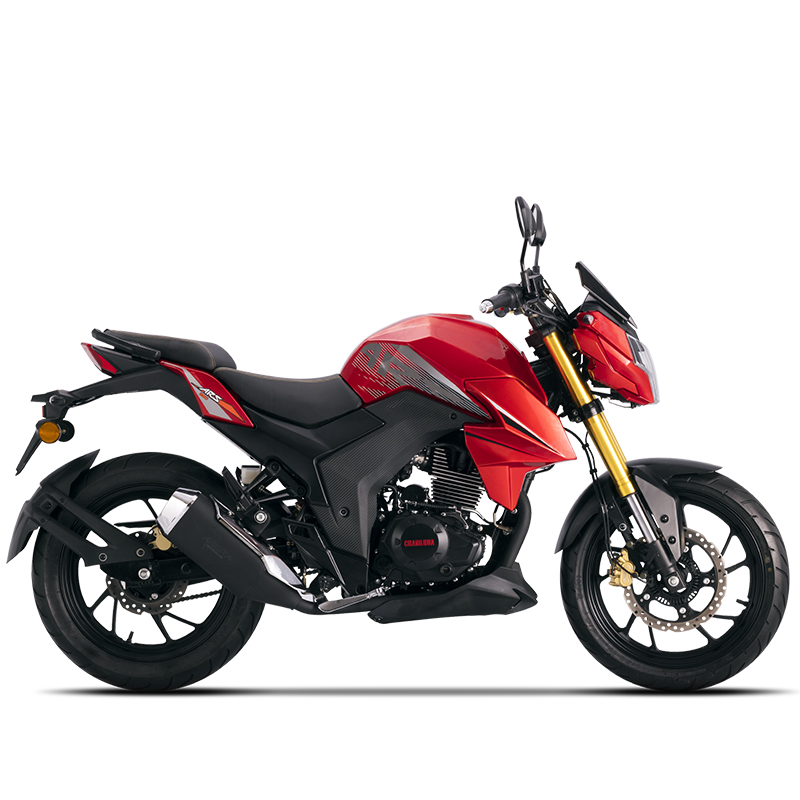

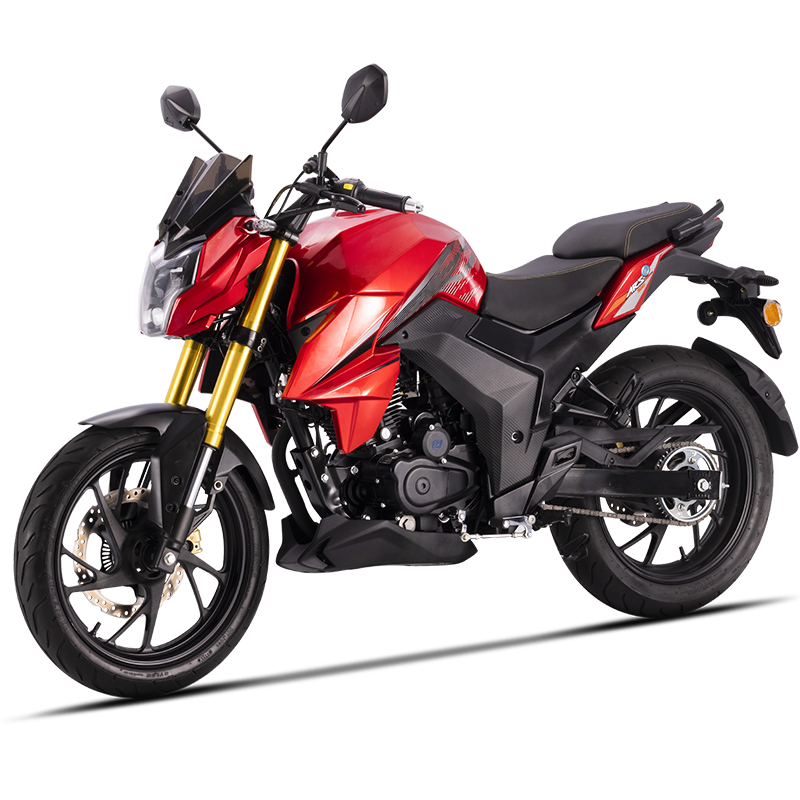

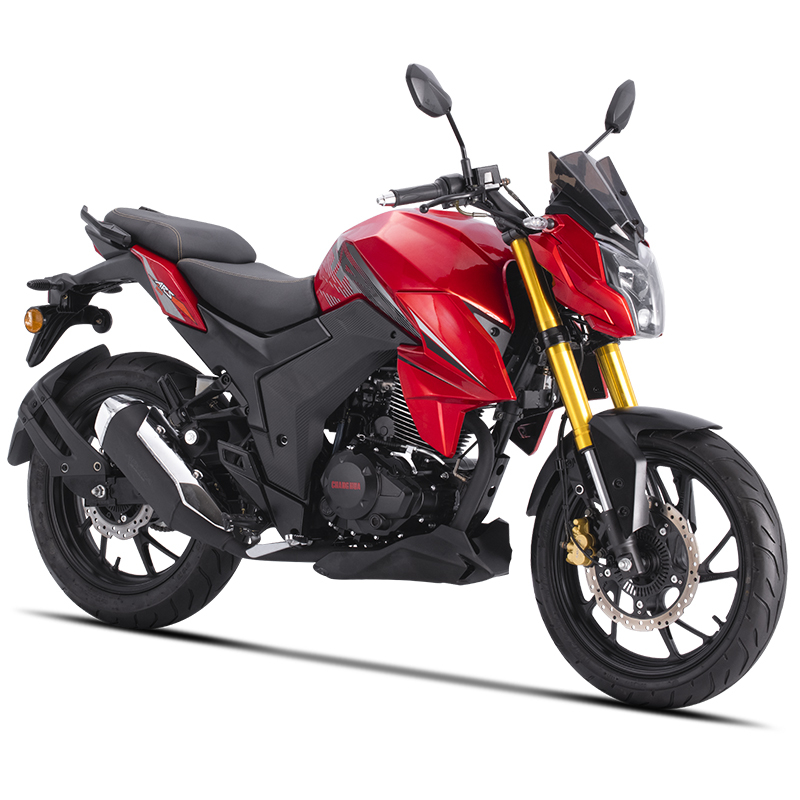

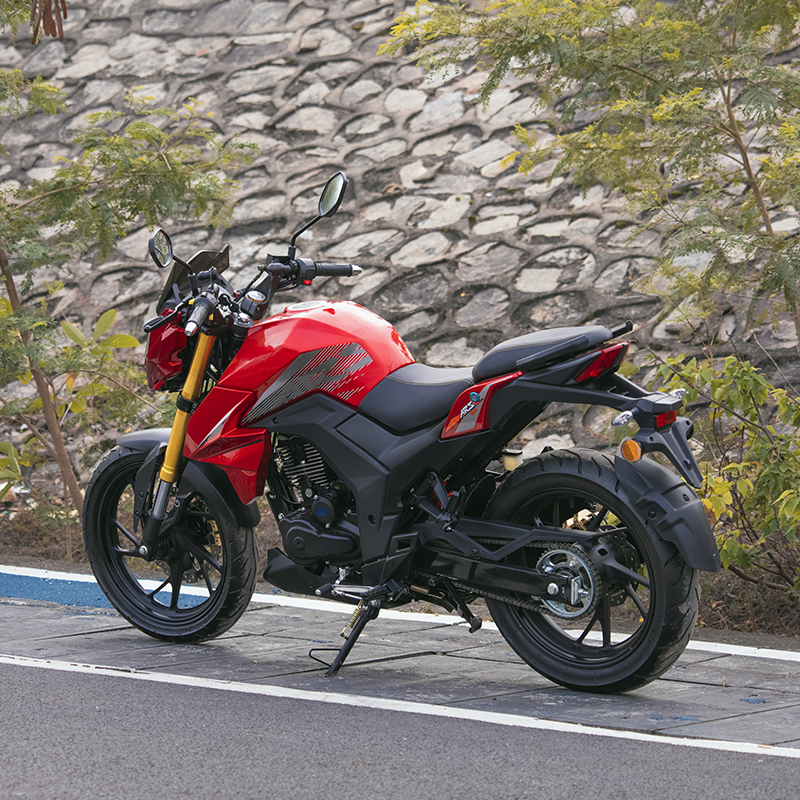

CH 200 - 19 E
Unique headlights and windshield, highly recognizable muscular design body shape, can be customized with different colors and decals. 200CC air-cooled engine has stronger power, greater torque and lower fuel consumption.
The engine is equipped with an advanced EFI system, which accurately controls the fuel injection amount and optimizes the combustion process, resulting in more efficient and environmentally friendly energy consumption performance. High-quality engine guard provides key protection for the engine. LED headlights with concentrated light source ensure safe driving at night.
PRODUCT PARAMETERS
| 车型 | CH200-19E | color options | Red/Black/White/Blue |
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body of
motorcycle | Length * width * height (mm) | 2060×800×1120 |
| Cylinder diameter x stroke (mm) | 63.5×62.2 | Seat height (mm) | 790 |
| Displacement (ml) | 200 | Ground clearance (mm) | 220 |
| Compression ratio | 9.2:1 | Wheel base (mm) | 1370 |
| peak power(kw/r/min) | 9.5/7500 | Unladen mass (KG) | 138 |
| Peak torque(Nm/r/min) | 13.5/5500 | Oil tank capacity (L) | 24 |
| Startup mode | Electric start | Tyre specification | Front 110/70-17，Rear 140/70-17 |
| Maximum design speed | ≤100km/h | Brake type | Front disc/rear disc |
PERFORMANCE

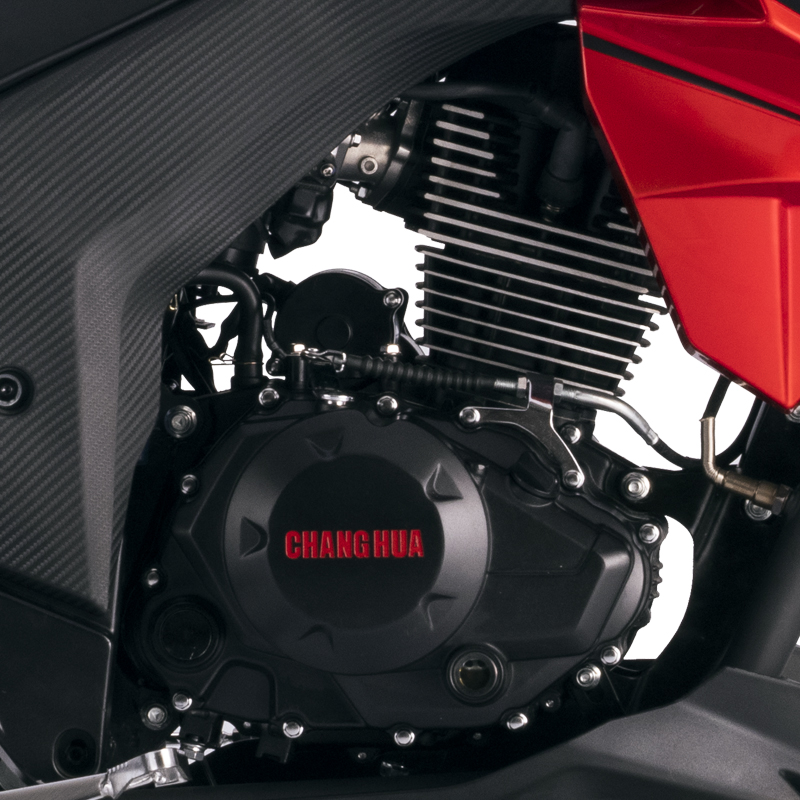

● Single-cylinder four-stroke, 200CC air-cooled engine, with strong power and fast speed. The engine is required to reach Euro V status. It is equipped with an advanced EFI system to accurately control the fuel injection amount.
● The inverted front shock absorber provides a more comfortable driving experience and improves motorcycle controllability.
● Front and rear single disc brakes and excellent ABS braking system provide excellent braking performance and ensure the rider's driving safety.

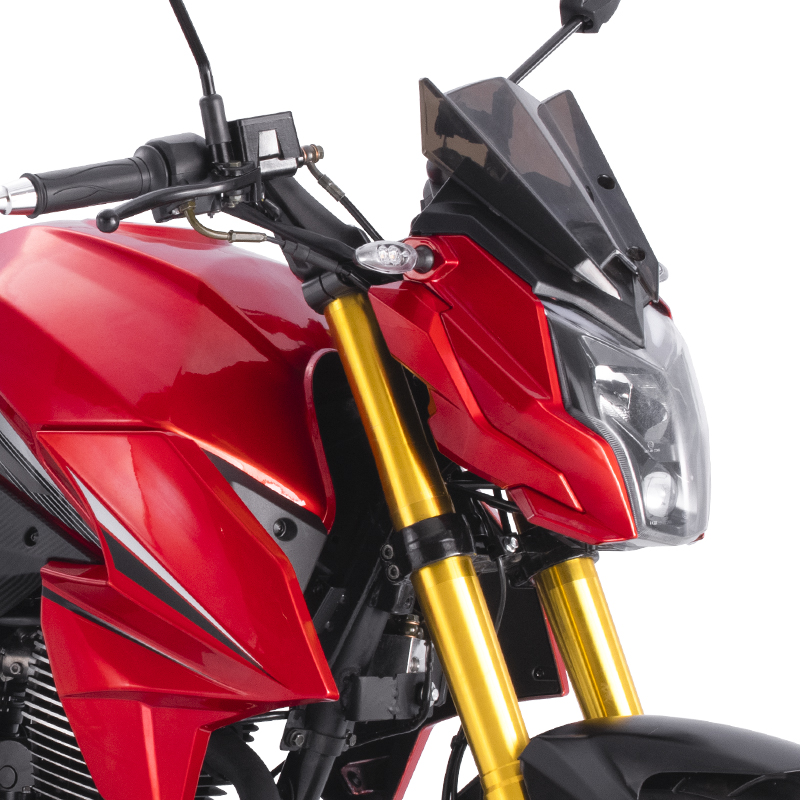

● DR motorcycles are equipped with electronic instrument panels, clear visual effects and diverse functions, bringing an unparalleled riding experience. LED headlights with concentrated light source ensure safe driving at night.
✅ CE Certified – This product has passed CE certification, meeting the European Union's standards for safety, health, and environmental protection.
APPLICATION
Lightweight body design, sporty body shape, powerful power, flexible operation, and easy crossing of city streets. Every ride is a symphony of speed and precision.
