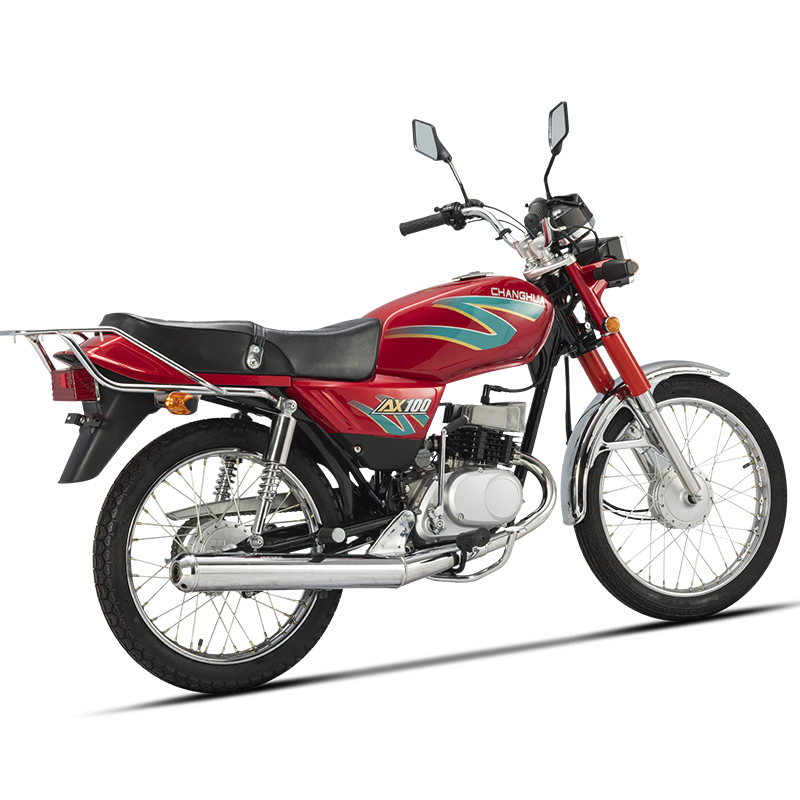

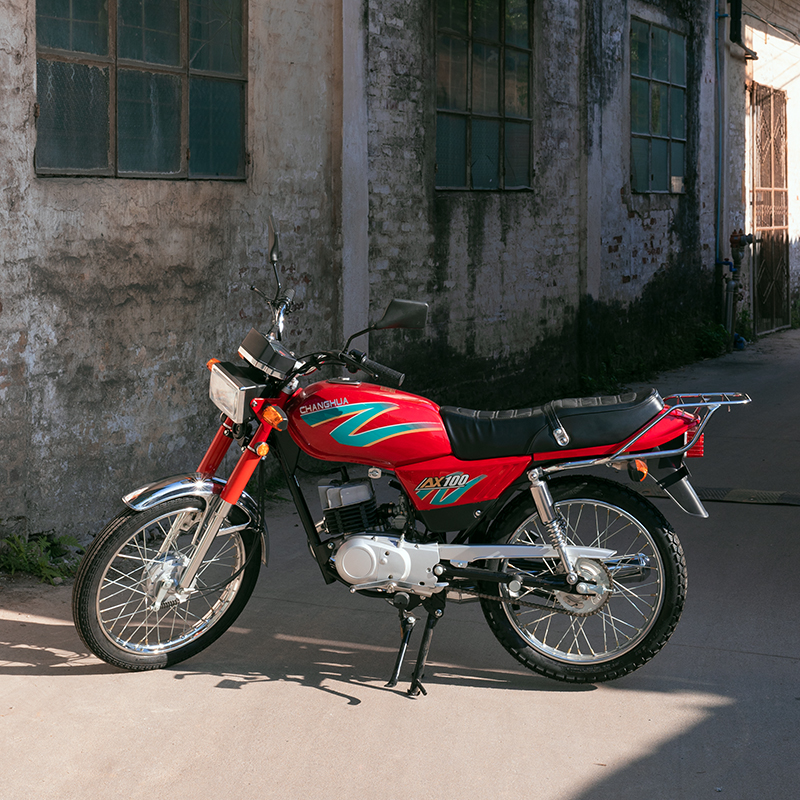

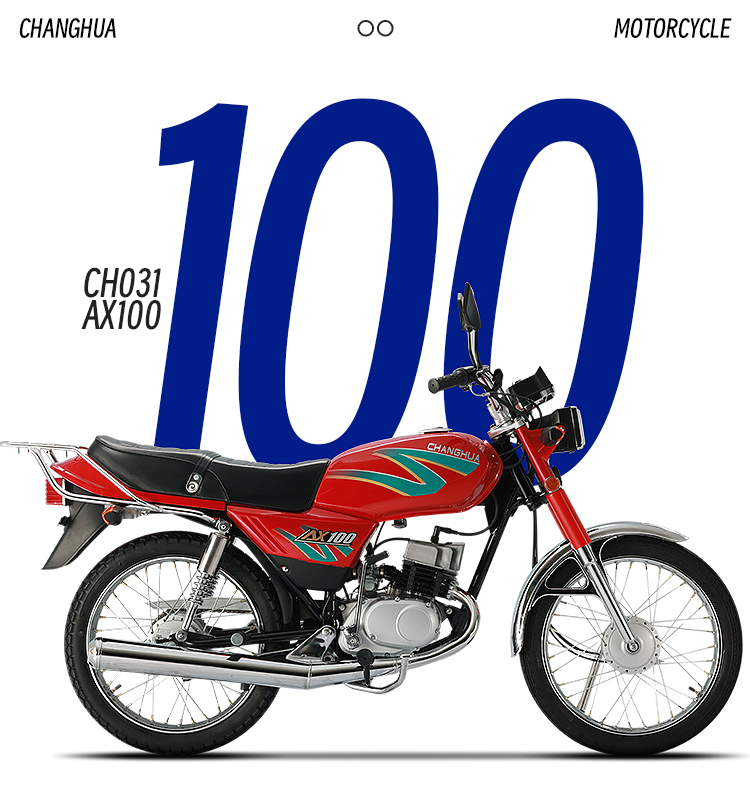

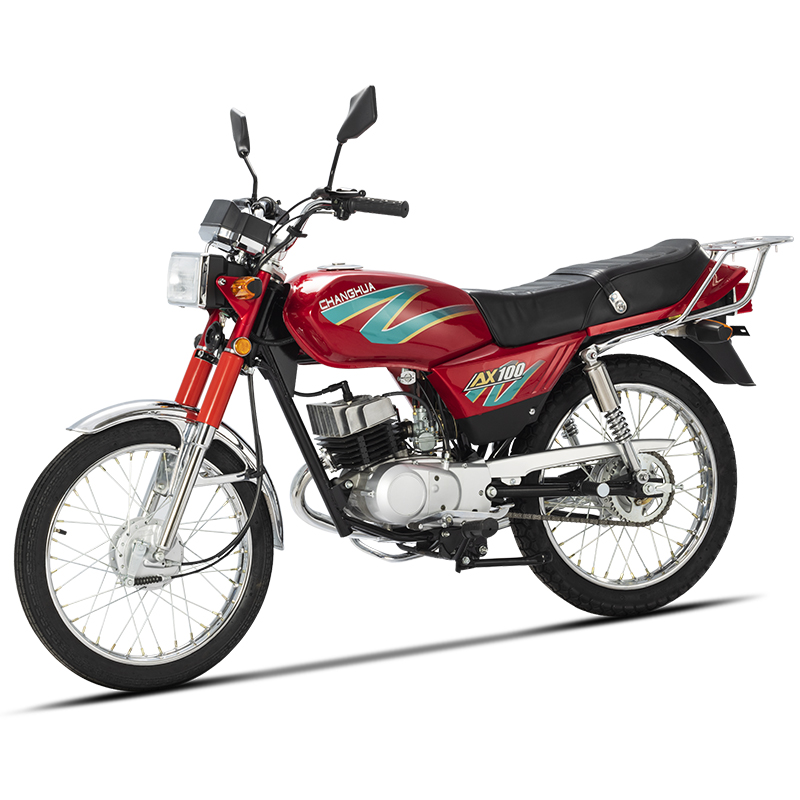

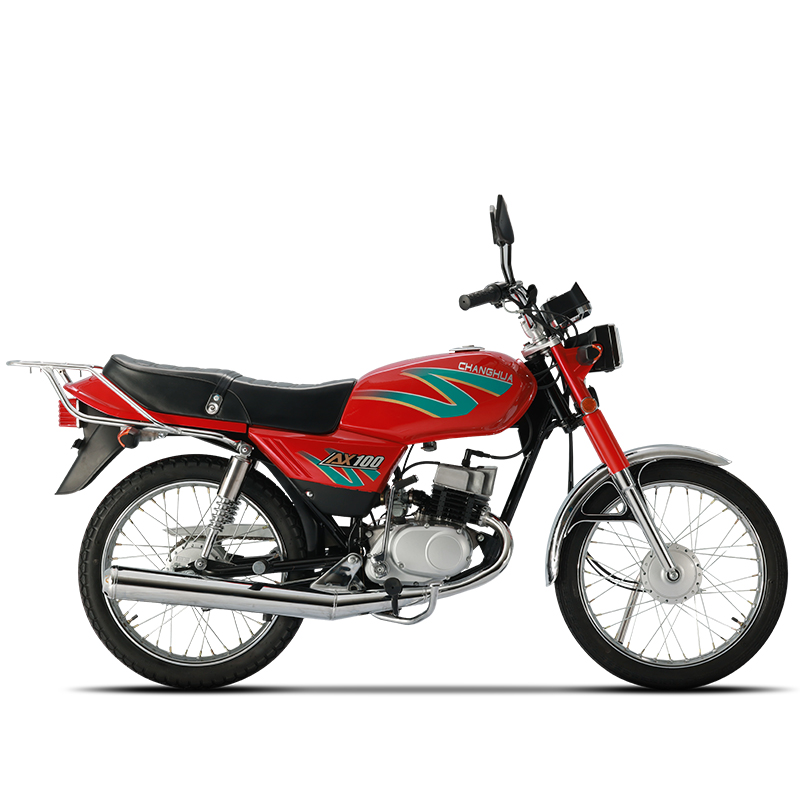

AX100（CH-031）
It has a classic and simple shape, a retro-style model, threaded spoke mesh wheels, mechanical square dashboard and square headlights. It is equipped with a single-cylinder two-stroke 100CC engine, lightweight body design, easy to control, and powerful. The ergonomically designed high-rebound seat pack provides a comfortable ride, accurately adjusts the driving posture, and effectively relieves driving fatigue.
PRODUCT PARAMETERS
| Model | CH-031 | Color options | Red/Black/White/Blue |
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body of
motorcycle | Length * width * height (mm) | 1980*740*1050 |
| Cylinder diameter x stroke (mm) | 50*50 | Seat height (mm) | 780 |
| Displacement (ml) | 100 | Ground clearance (mm) | 100 |
| Compression ratio | 6.6:1 | Wheel base (mm) | 1210 |
| peak power(kw/r/min) | 6.8kw/7500r/Min | Unladen mass (KG) | 83.5 |
| Peak torque(Nm/r/min) | 9.4N.m/6500r/Min | Oil tank capacity (L) | 12 |
| Startup mode | Electric/foot start | Tyre specification | Front 2.50-18，Rear 2.75-18 |
| Maximum design speed | ≤85km/h | Brake type | Front drum/rear drum |
PERFORMANCE

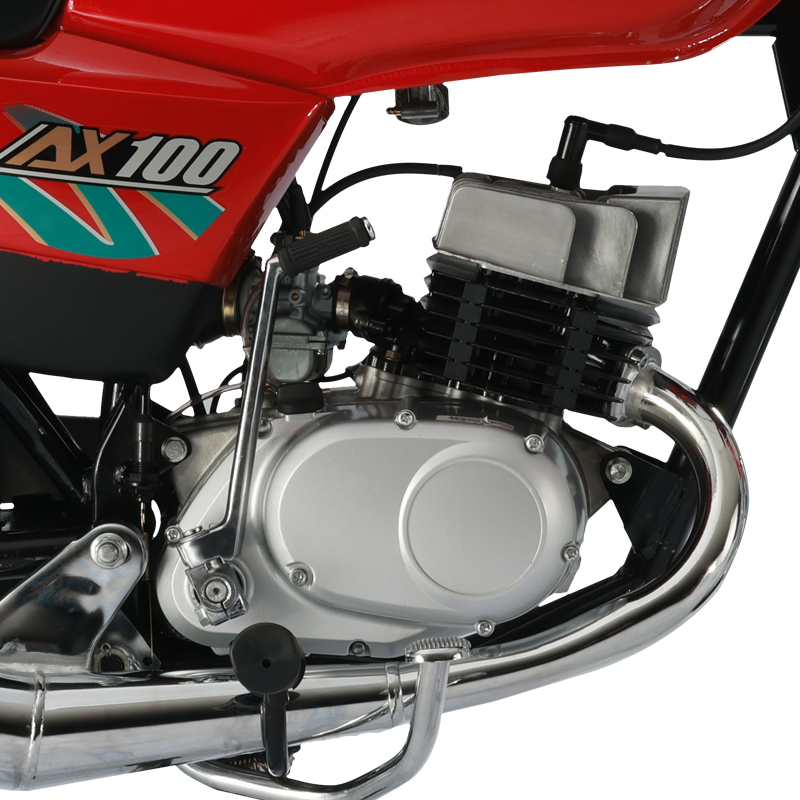

● The single-cylinder two-stroke 100CC engine is light and compact, easy to control and has strong explosive power. Produces stronger torque at low rpm, providing better acceleration performance.
● The body structure is simple and the lightweight design makes the vehicle flexible, making it easier for the rider to adjust driving. High cushioning shock absorber, moderate hardness and softness, improves riding comfort.
● The seat bag with a moderate height and a sitting posture closer to the natural state ensure that the arms, waist, back, legs and feet are relaxed, ensuring a good riding experience.

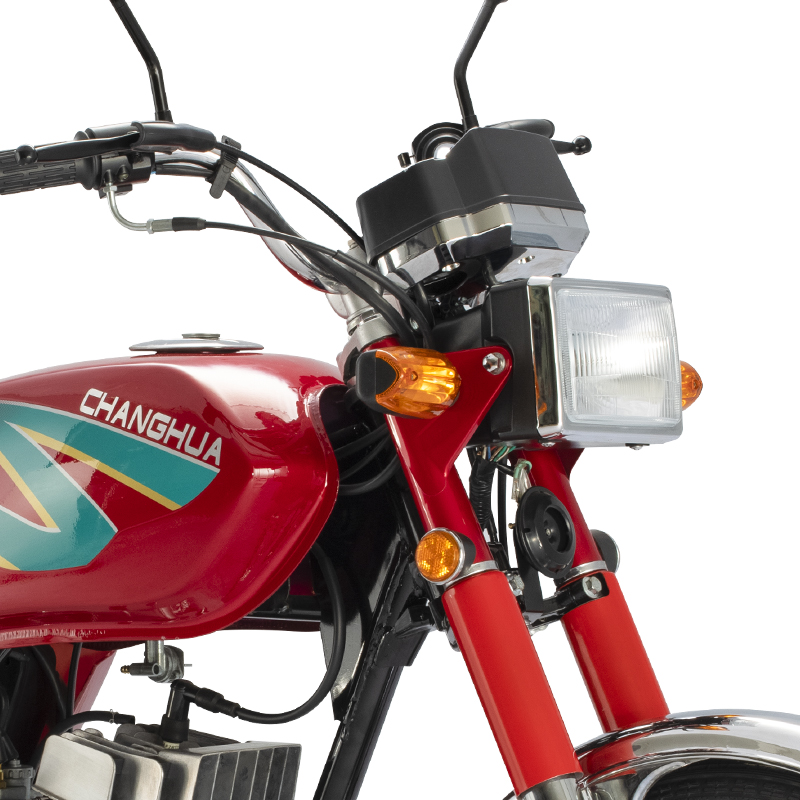

● The headlights have high brightness and concentrated light sources, making night driving safer. It displays clear square mechanical instruments and square headlights, with a simple layout.
APPLICATION
Excellent comprehensive performance, is suitable for carrying people and cargo, and is easy to operate. AX100 is a retro style motorcycle with high cost performance.
