CH169-20E

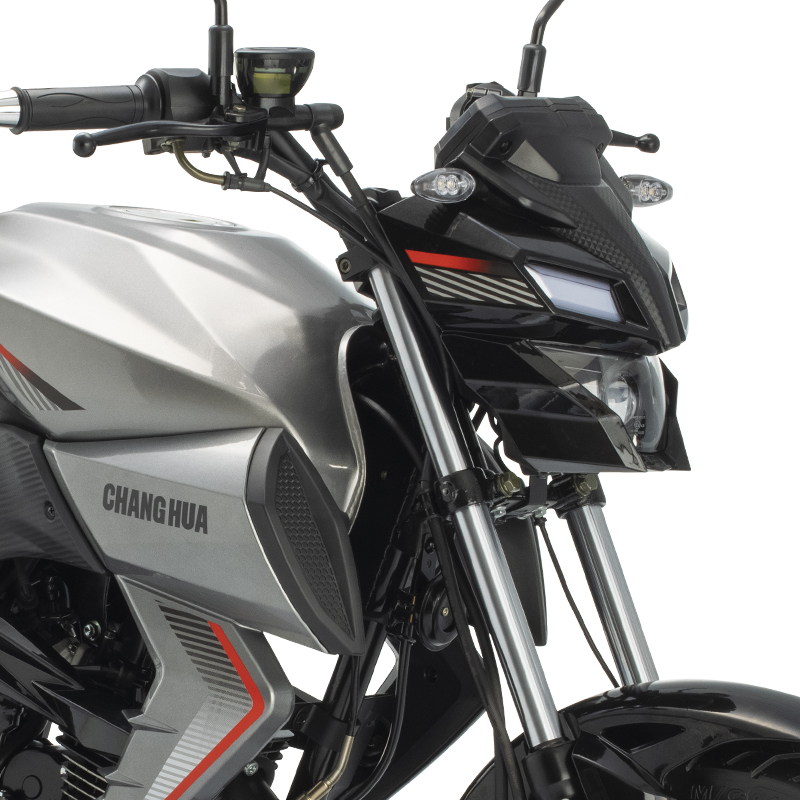

Unique headlights and a highly recognizable body shape can be customized with different colors and decals. 170CC air-cooled engine, with stronger power, greater torque and lower fuel consumption. The engine is equipped with an advanced EFI system, which accurately controls the fuel injection amount and optimizes the combustion process, resulting in more efficient and environmentally friendly energy consumption performance. High-quality engine guard provides key protection for the engine. LED headlights with concentrated light source ensure safe driving at night.
PRODUCT PARAMETERS
| CH169-20E | Color options | Red/Black/White/Blue |
| Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body of
motorcycle | Length * width * height (mm) | 2025×770×1072 |
| Cylinder diameter x stroke (mm) | 62×56.2 | Seat height (mm) | 775 |
| Displacement (ml) | 169 | Ground clearance (mm) | 200 |
| Compression ratio | 9.2:1 | Wheel base (mm) | 1350 |
| peak power(kw/r/min) | 8.6/8000 | Unladen mass (KG) | 128 |
| Peak torque(Nm/r/min) | 11.5/6500 | Oil tank capacity (L) | 23 |
| Startup mode | Electric/foot start | Tyre specification | Front 100/80-17，Rear 110/80-17 |
| Maximum design speed | ≤90km/h | Brake type | Front disc/rear drum |
PERFORMANCE

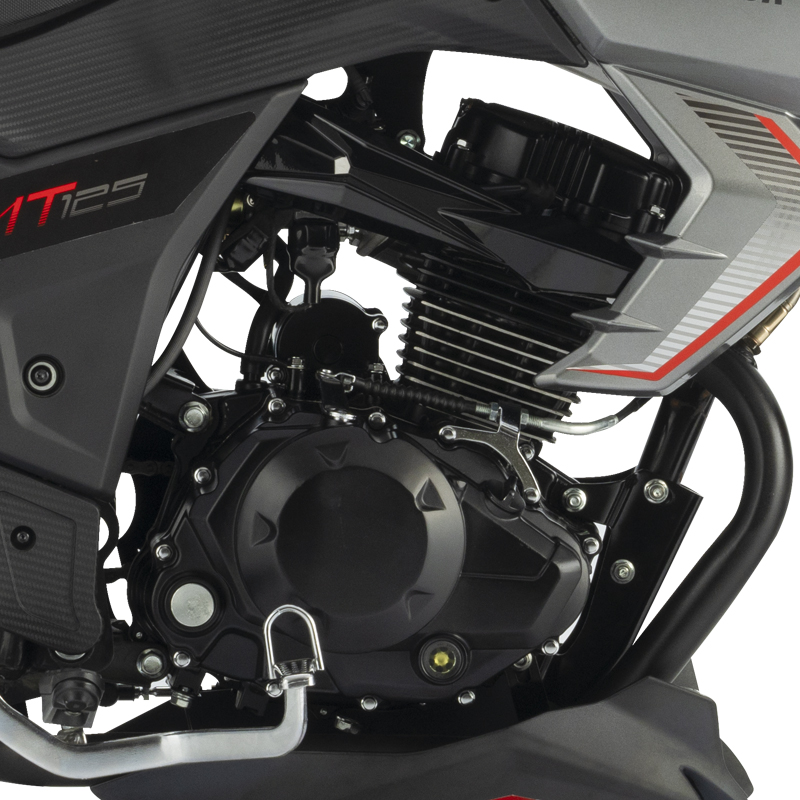

● Single-cylinder four-stroke, 170CC air-cooled engine, with strong power and fast acceleration. The engine is required to reach Euro V status. It is equipped with an advanced EFI system to accurately control the fuel injection amount.
● The seat height is 775mm and the upright riding posture makes riding more natural and comfortable. The front single disc brake has excellent braking performance and ensures the rider's driving safety.
● Equipped with an electronic instrument panel, clear visual effects and diverse functions, it brings an unparalleled riding experience.
● The entire vehicle uses high-quality LED lamps, with a highly recognizable shape and concentrated light source, making driving at night safer.
✅ CE Certified – This product has passed CE certification, meeting the European Union's standards for safety, health, and environmental protection.
APPLICATION
Powerful power, flexible operation, excellent comprehensive performance, and can quickly cross the ground. It is an efficient way of urban transportation.
