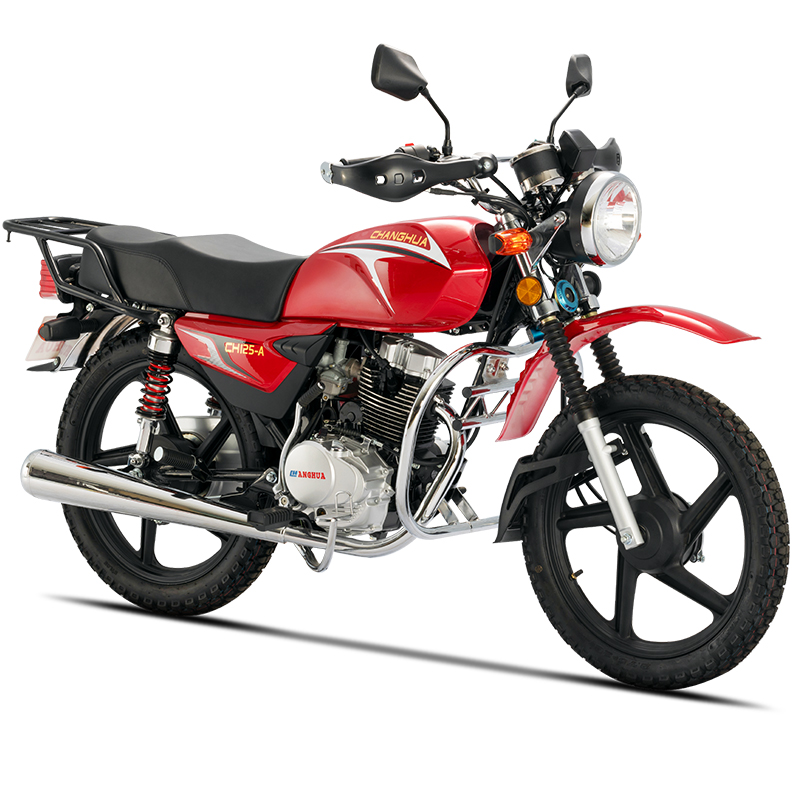

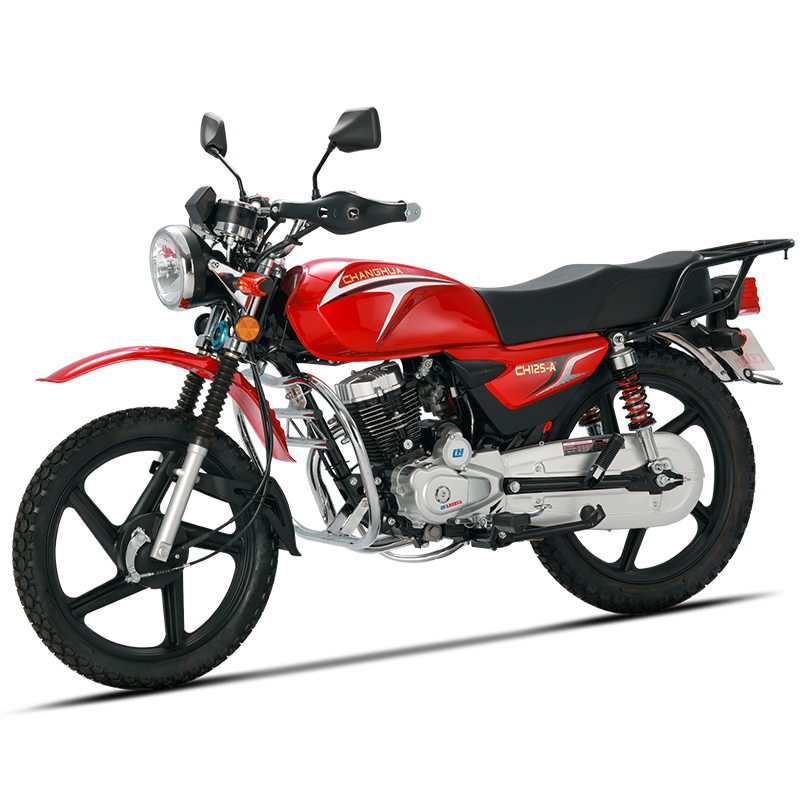

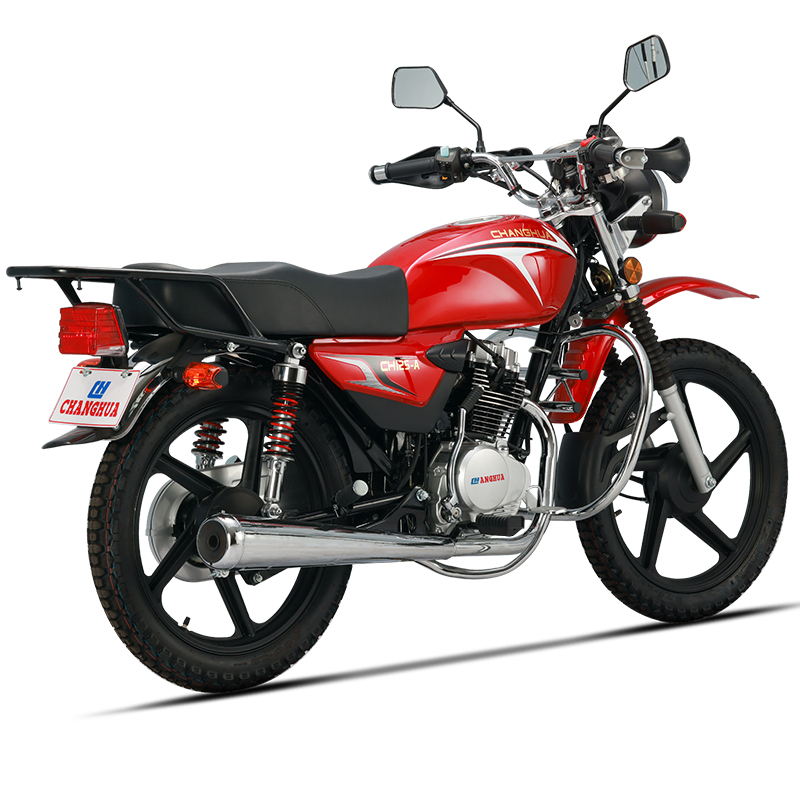

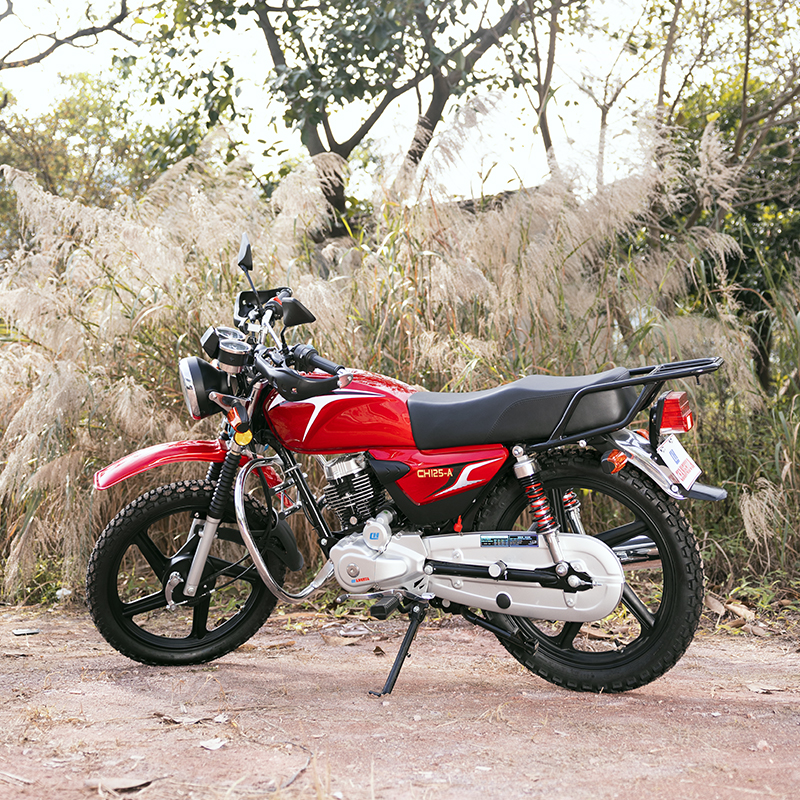

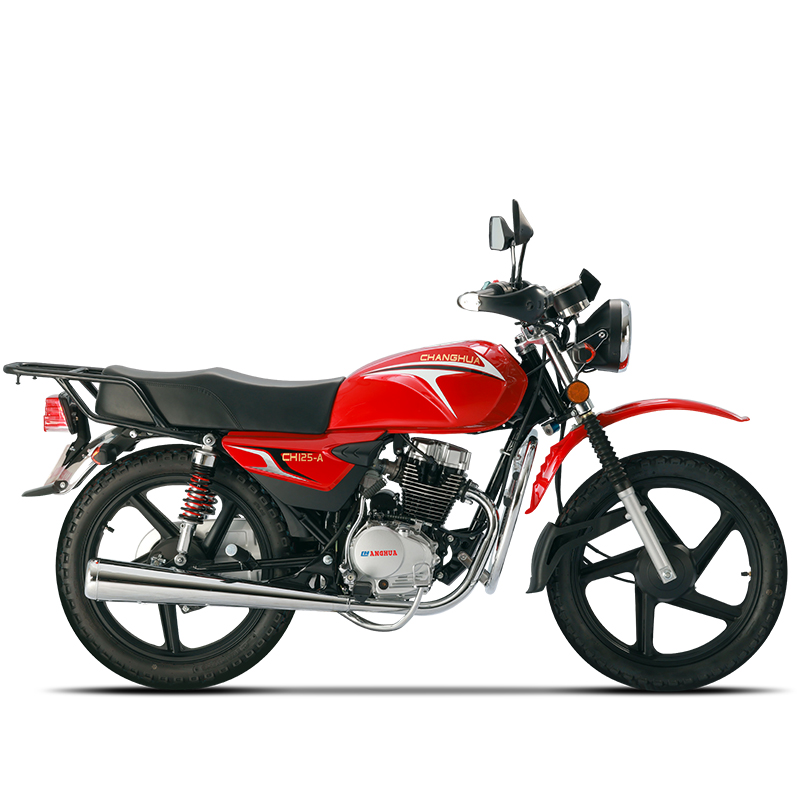

CH-009 Street Motorcycle Moto CG Engine Off-Road Bike Electric/Kick Start
Dual spring shock absorption system improves driving stability. Off-road front mudguard and deep-toothed tires are suitable for mountain mud roads. The wavy seat bag provides a comfortable sitting posture and a more stable ride.

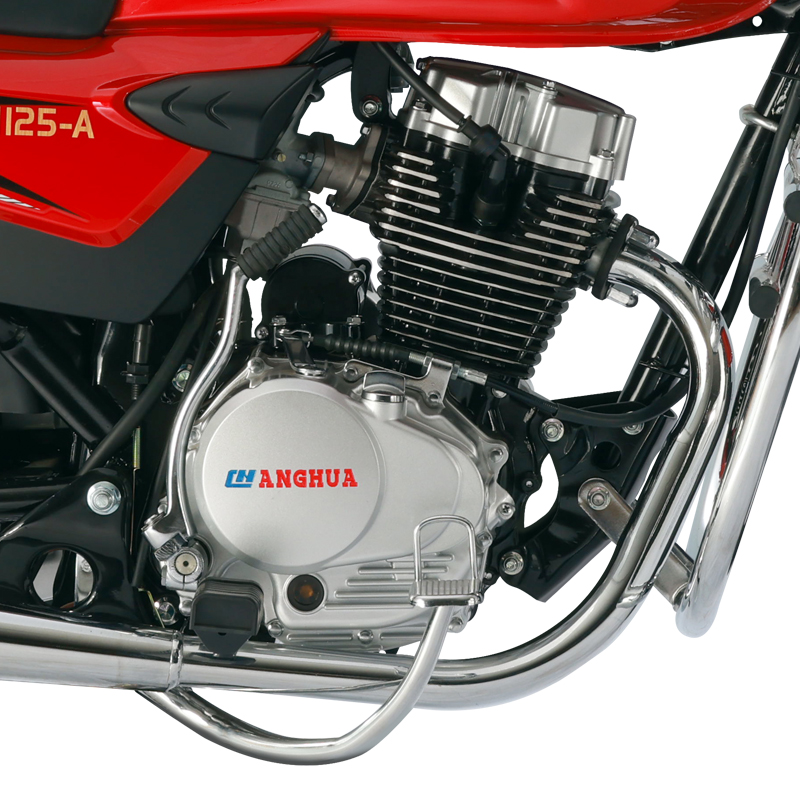

Single-cylinder 125 CC engine, more powerful and lower fuel consumption. Classic round lights and round instrument panel. Tough and large fuel tank, large capacity and long battery life.
PRODUCT PARAMETERS
| Model | CH-009 | Color options | Red/Black/White/Blue |
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body of
motorcycle | Length * width * height (mm) | 1970*800*1080 |
| Cylinder diameter x stroke (mm) | 56.5*49.5 | Seat height (mm) | 800 |
| Displacement (ml) | 125 | Ground clearance (mm) | 125 |
| Compression ratio | 9.0:1 | Wheel base (mm) | 1250 |
| peak power(kw/r/min) | 7.2kw/8500r/Min | Unladen mass (KG) | 106.5 |
| Peak torque(Nm/r/min) | 8.5N.m/7500r/Min | Oil tank capacity (L) | 10 |
| Startup mode | Electric/foot start | Tyre specification | Front2.75-18，Rear3.00-18 |
| Maximum design speed | ≤85km/h | Brake type | Front drum/rear drum |
PERFORMANCE
● The single-cylinder 125CC engine has stronger power, lower fuel consumption, and an enlarged fuel tank for stronger endurance. It has excellent power performance and handling performance.
● The off-road style front fender, tough large fuel tank, classic round headlights and instrumentpanel outline a stable and elegant body outline.
● The off-road style front fender, tough large fuel tank, classic round headlights and instrumentpanel outline a stable and elegant body outline.

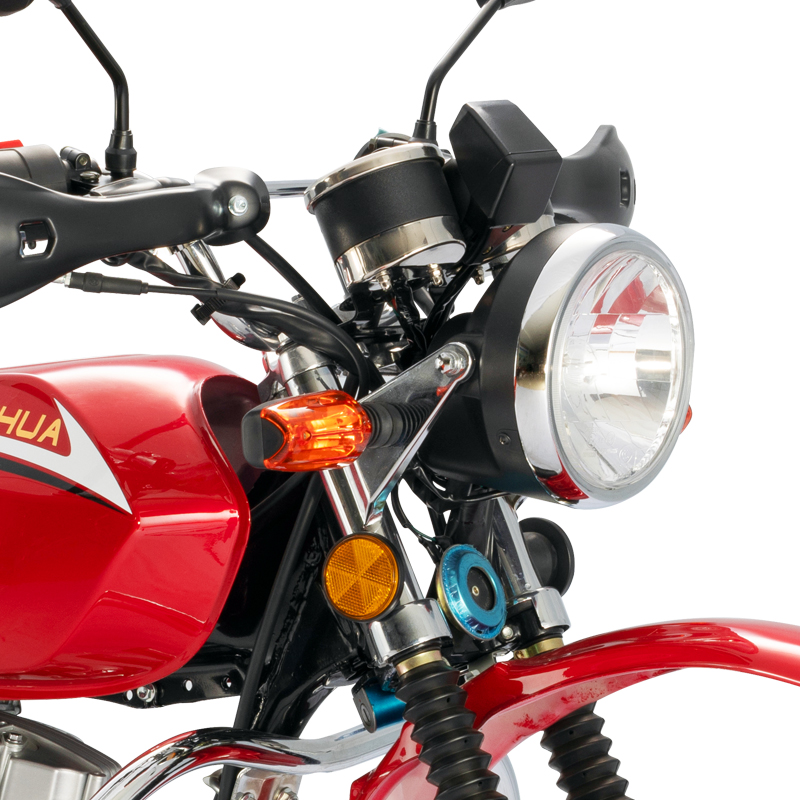

● The headlights have high brightness and concentrated light sources, making night driving safer. Mechanical instruments with clear display and simple layout.
APPLICATION
CG motorcycle with excellent overall performance, designed for off-road and on-road functions, it can conquer complex terrains and meet daily commuting in urban areas.
