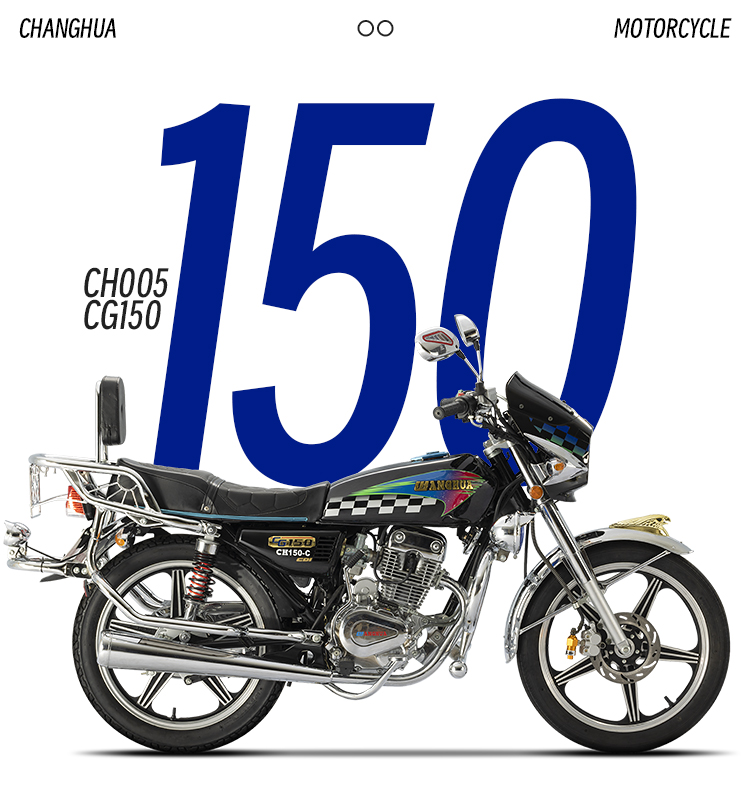

CH-005

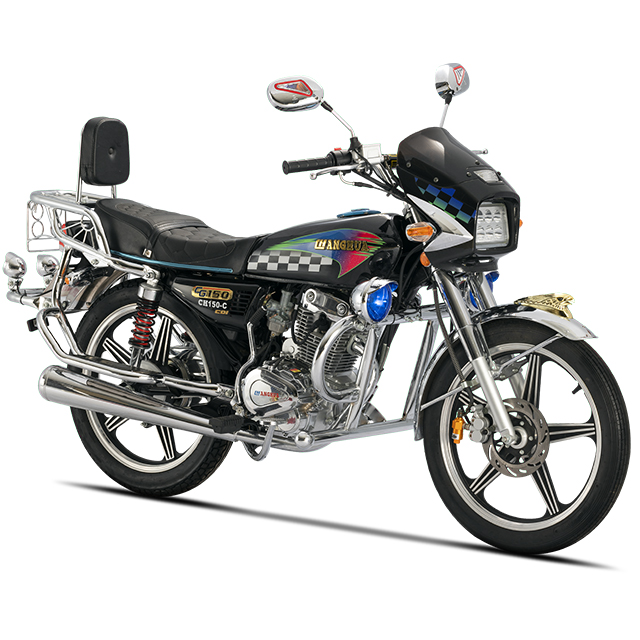

The high-end and luxurious CG shape, integrated windshield and domineering fuel tank appearance design, equipped with LED headlights, front and rear high-brightness fog lights, high-strength front and rear bumpers make it even more luxurious. Equipped with a single-cylinder 150CC engine, it is more powerful and has lower fuel consumption.
Large capacity fuel tank, longer battery life. High cushioning shock absorber, moderate hardness and softness. The ergonomically designed high-rebound seat pack provides a comfortable ride, accurately adjusts the driving posture, and effectively relieves driving fatigue.
PRODUCT PARAMETERS
| Model | CH-005 | Color options | Red/Black/White/Blue |
| Engine | Engine type | Single cylinder, four stroke, natural air cooling, vertical | Body of
motorcycle | Length * width * height (mm) | 2050*750*1120 |
| Cylinder diameter x stroke (mm) | 62*49.5 | Seat height (mm) | 780 |
| Displacement (ml) | 150 | Ground clearance (mm) | 120 |
| Compression ratio | 9.0:1 | Wheel base (mm) | 1250 |
| peak power(kw/r/min) | 8.2kw/8500r/Min | Unladen mass (KG) | 115 |
| Peak torque(Nm/r/min) | 10N.m/7500r/Min | Oil tank capacity (L) | 8.6 |
| Startup mode | Electric/foot start | Tyre specification | Front 2.75-18，Rear 3.00-18 |
| Maximum design speed | ≤85km/h | Brake type | Front disc/rear drum |
PERFORMANCE

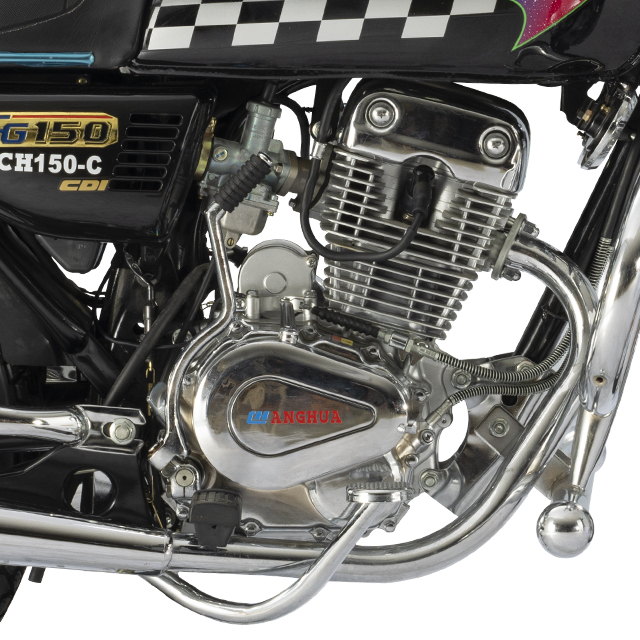

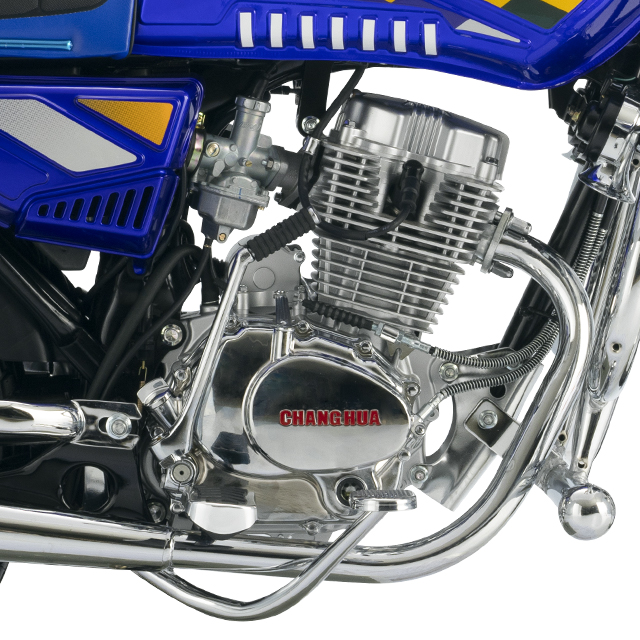

● Chrome-plated single-cylinder 150CC engine has a more dazzling appearance, stronger power, lower fuel consumption and simple maintenance. It has excellent power performance and handling performance.

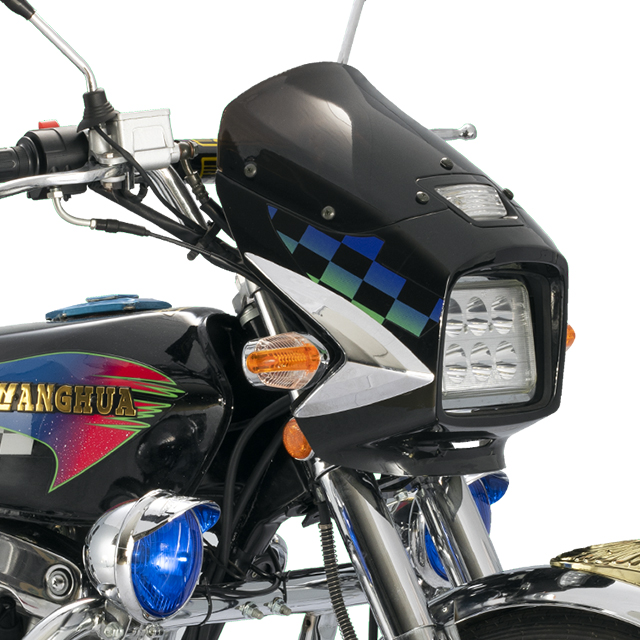

● The integrated windshield that complies with aerodynamics and the tough and domineering large-capacity fuel tank provide greater endurance and a more luxurious overall shape.

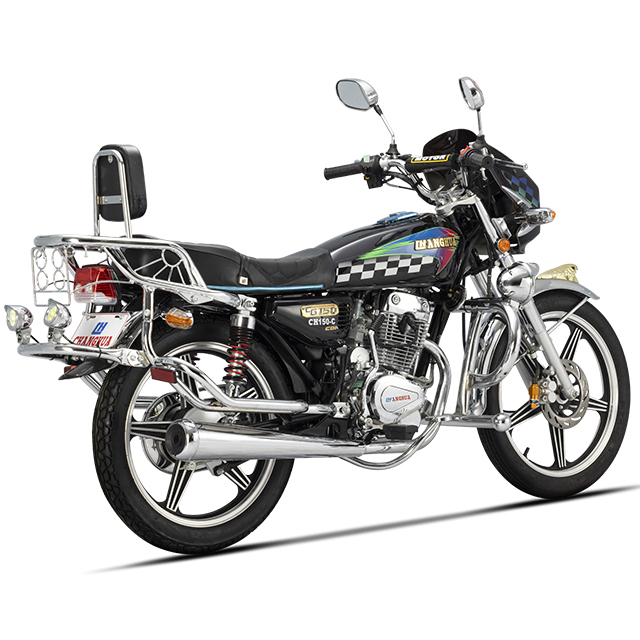

● High-strength bumpers at the front and rear of the vehicle provide additional support and stability, making the motorcycle easier to control. Equipped with a seat bag of moderate height and a sitting posture closer to the natural state, it can ensure a good riding experience.
● High-strength bumpers at the front and rear of the vehicle provide additional support and stability, making the motorcycle easier to control. Equipped with a seat bag of moderate height and a sitting posture closer to the natural state, it can ensure a good riding experience.
APPLICATION
Excellent comprehensive performance, suitable for manned cargo, simple operation. CG motorcycle is cost-effective, is a very popular traditional model in the market.
