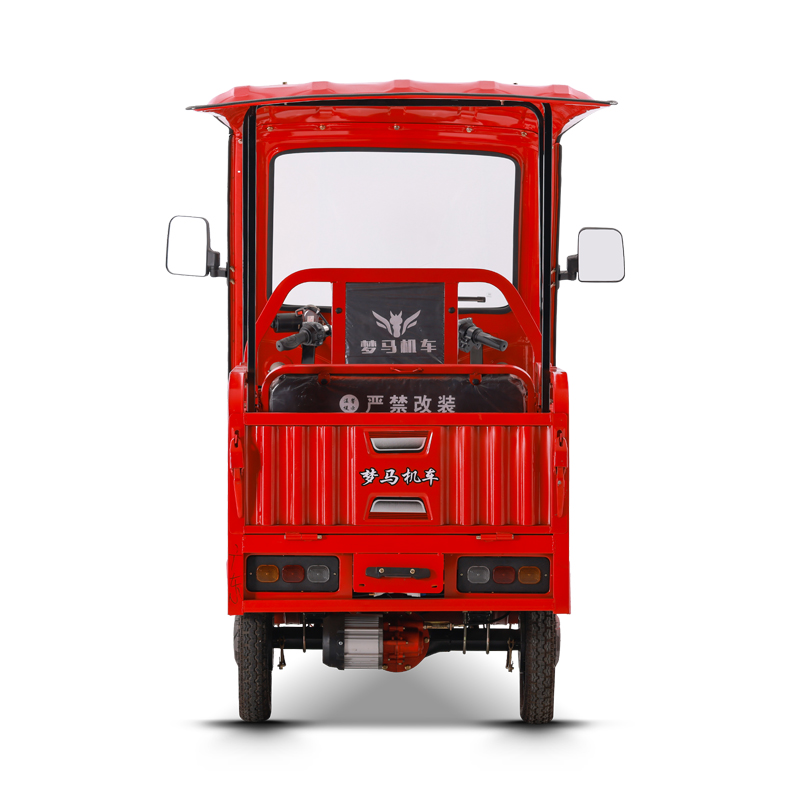

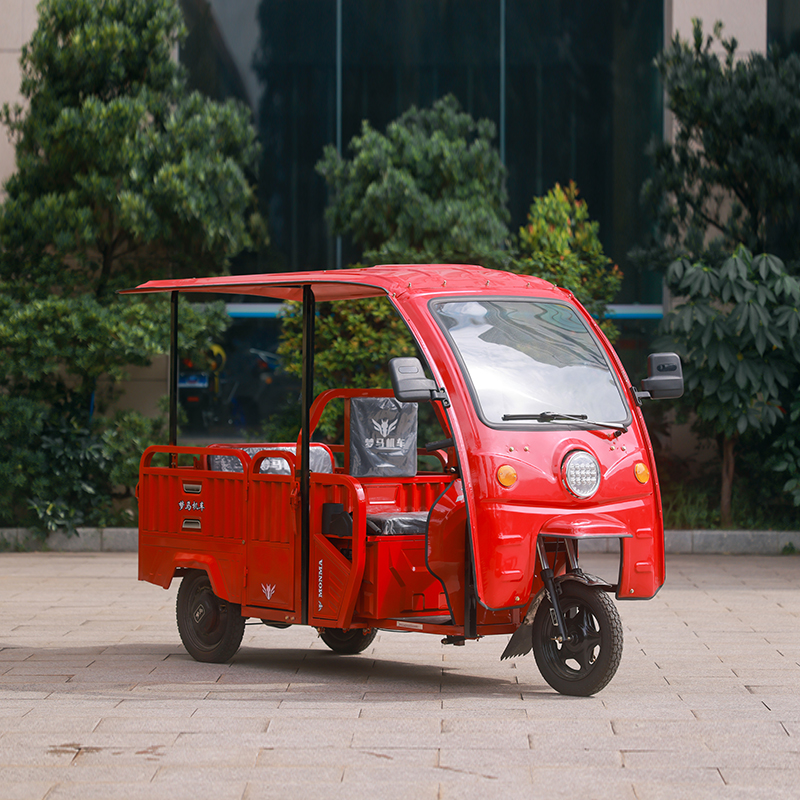

CH-K018

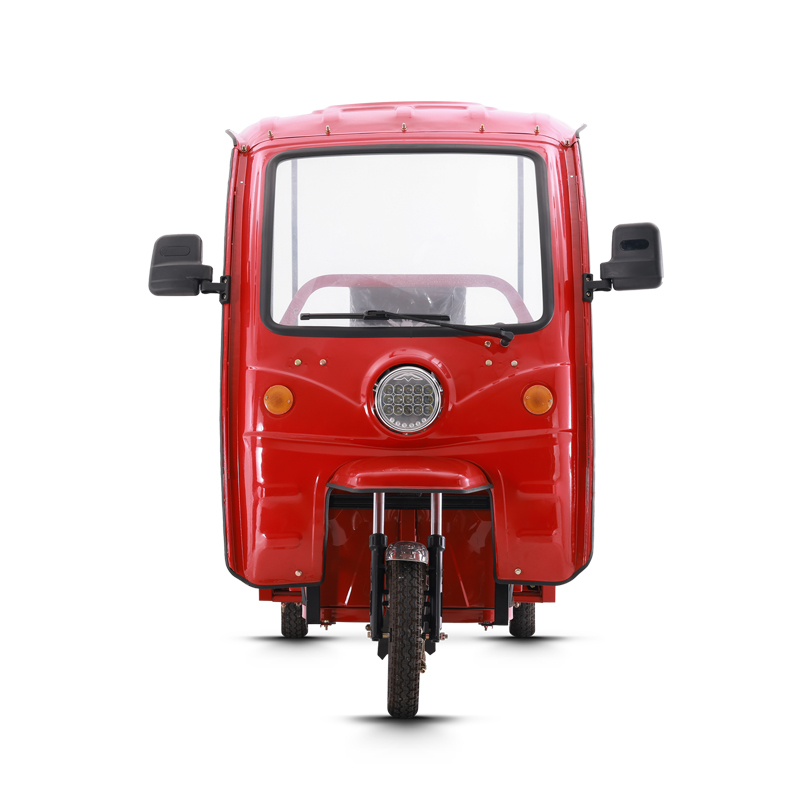

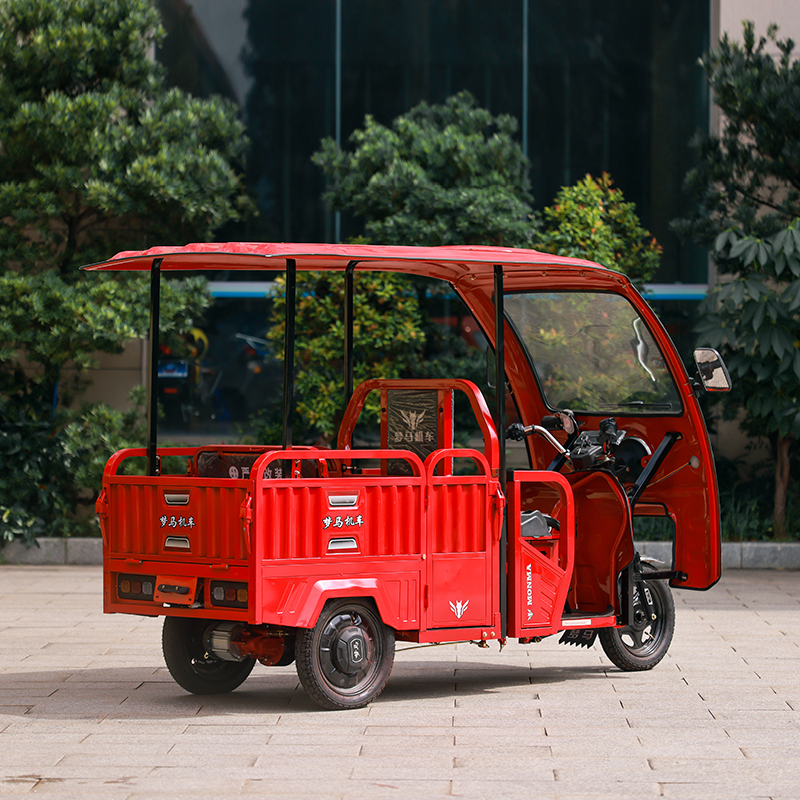

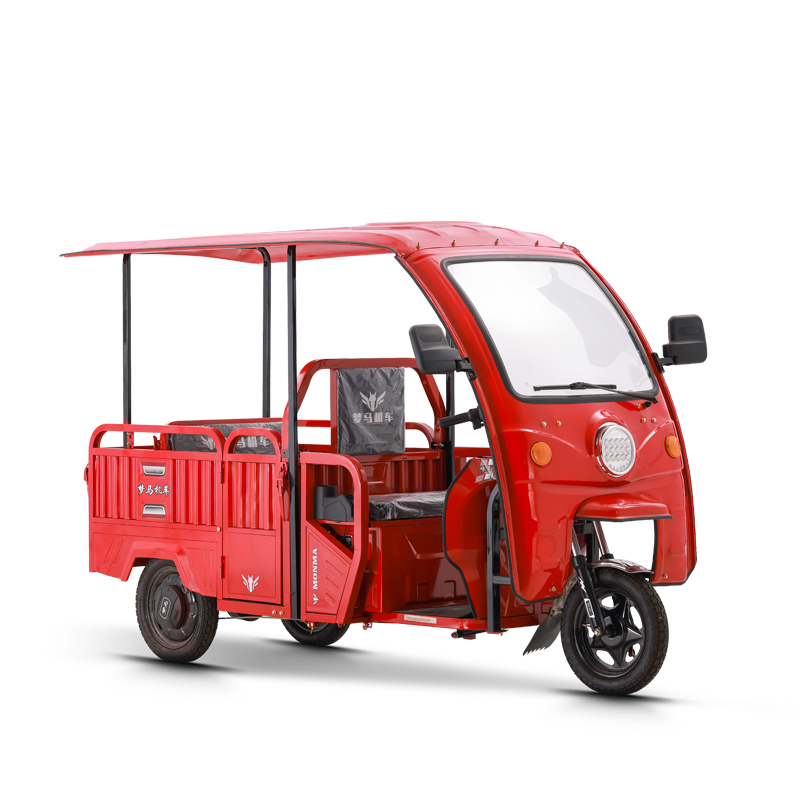

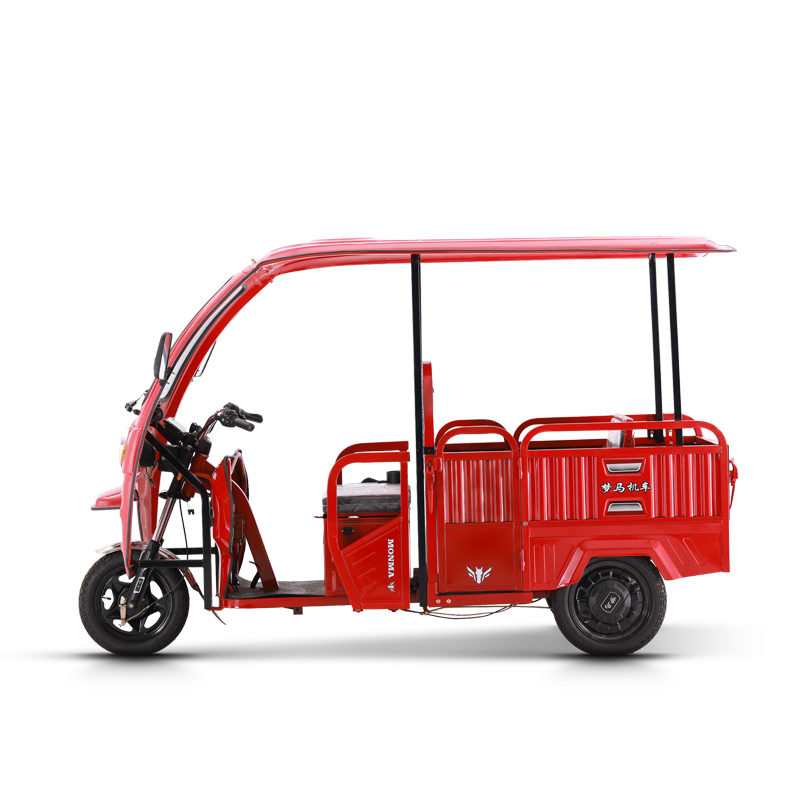

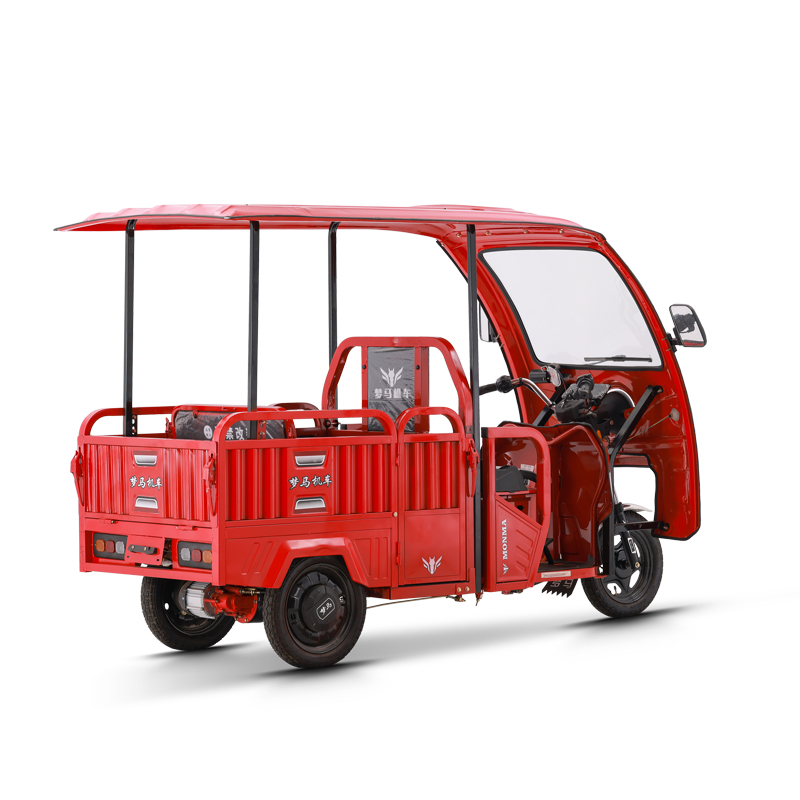

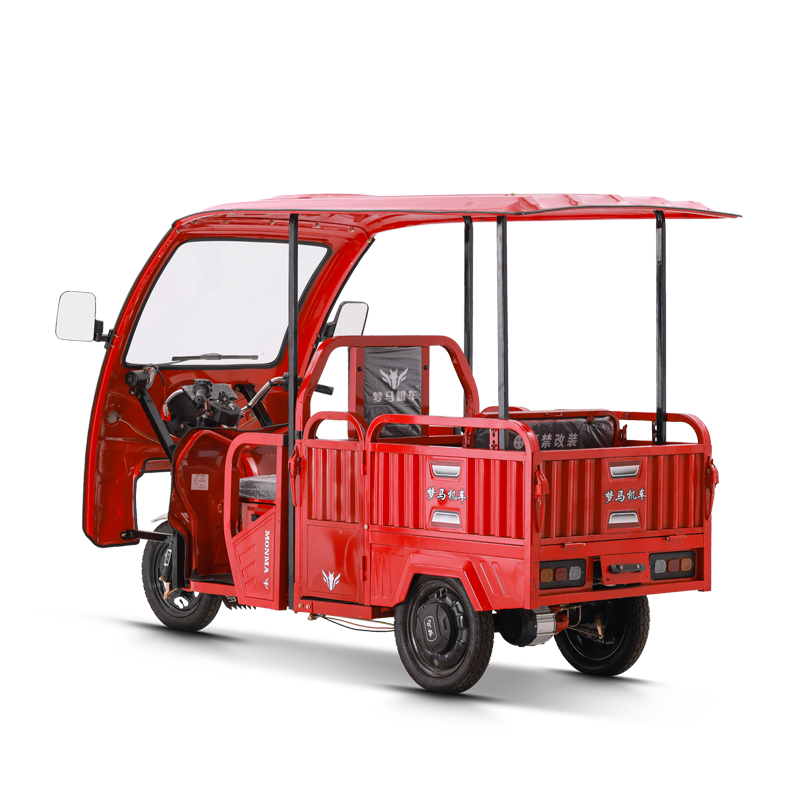

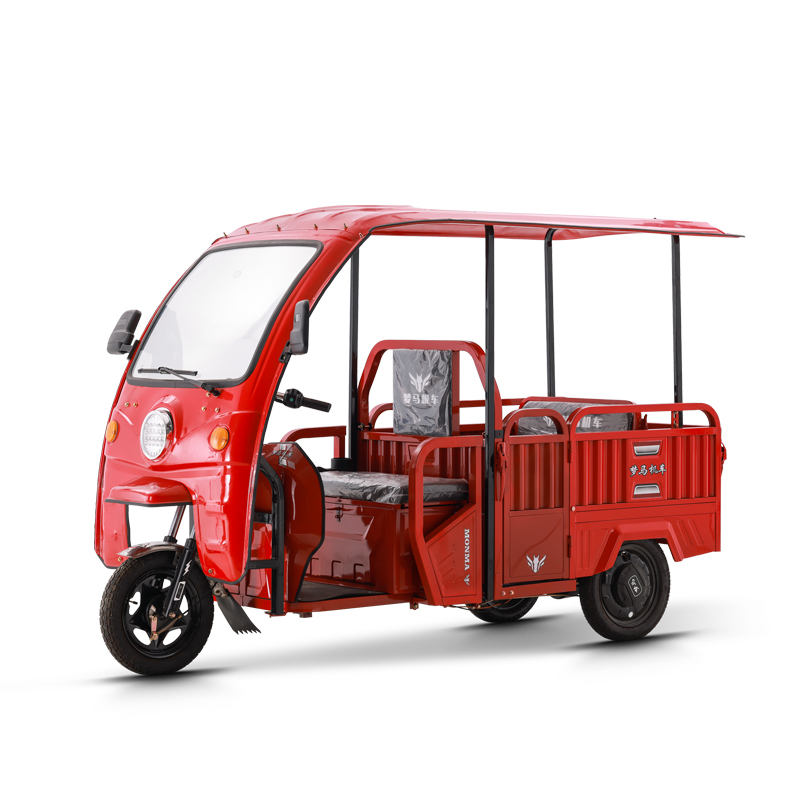

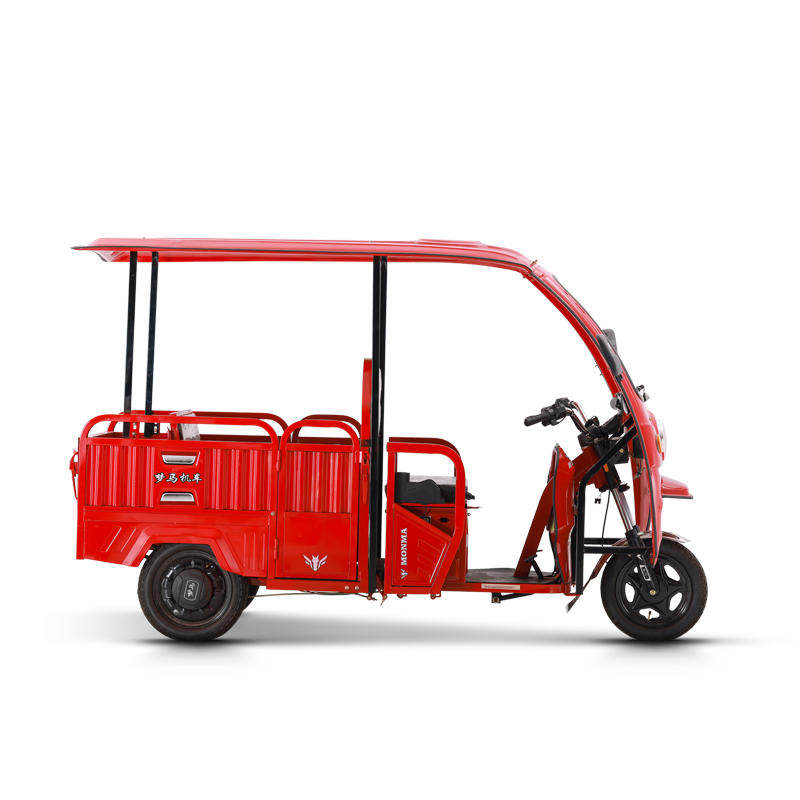

Passenger-carrying electric tricycle, with integrated stamped canopy, strong and durable. 1200*900mm cargo box size, larger rear space, providing a more comfortable riding experience. Equipped with 1200W50H permanent magnet motor, it can continuously output strong power.
160mm drum brake integrated gear shifting, more stable transmission. Equipped with LCD instrument panel, timely convey the riding status of the tricycle. LED headlights, concentrated light, safer driving at night.
PRODUCT PARAMETERS
| Number | CH-K018 |
| Model | CH-K018 |
|
|
| Basic configuration | Vehicle size(mm) | 2660*1070*1700 | Power system | Motor | 1200W50H permanent magnet motor |
| Container size (mm) | 1200*900 | Controller | 18 Mousse tube |
| Seat height(mm) | 700 | Maximum speed(KM/H) | 40-52(Optional) |
| Ground clearance(mm) | 220 | Start mode | Electronic control |
| Track width(mm) | 740 | Storage battery | 60V32A |
| Curb weight | 180（kg） | Mileage driven | Reference battery data |
| Load capacity mass(KG) | 200 | Other Configuration | Phone charging | No |
| Tire Size | Front 3.00-12/Rear 3.00-12 | Bluetooth audio | No |
| Braking method | Front drum/Rear drum | Fringe curtain | Whole |
| Rear axle | 160mm brake hub | Alternator | No |
| Front suspension | 31mm External spring damping | Packaging method | CKD |
| Rear suspension | Five-leaf spring plate non-load bearing | Windshield wiper | Electric wipers |
| Instrument | LCD instrument |
|
|
|
| Headlamps | LED |
|
|
|
PERFORMANCE
● The electric tricycle is equipped with a powerful 1200W50H permanent magnet motor, with a maximum speed of 52KM/H, maintaining energy efficiency while maintaining strong kinetic energy during long-term operation.
● The front and rear wheels use 12-inch deep-tooth tires, showing excellent load-bearing capacity, improving the grip performance of the tricycle, and ensuring driving safety.
● The rear axle adopts a 160mm drum brake integrated shifting system to provide reliable braking force and achieve rapid parking and starting maneuverability. The front suspension 31mm thickened external spring shock absorber and the five-leaf spring plate non-load-bearing vehicle structure enable the tricycle to provide excellent stability and comfort even on uneven roads.
● Equipped with an LCD instrument panel, clear visual effects and diversified functions. Use high-quality LED headlights, concentrated light source, and longer illumination distance. It is safer to drive at night.
APPLICATION
Passenger-carrying electric tricycles have "0" emissions, are green and environmentally friendly, can meet the daily commuting needs of families and small groups, and can travel flexibly on various road surfaces.
